ZGB Heavy Duty Centrifugal Slurry Pump

Certificate: CE/ISO

Place of Origin: Hebei,China

● Flow rate :50-400m3/hr

● Head H(m): 40-100

● Speed: 980-1480rpm

● Efficiency: Max78%

● Materials: Impeller A05

● Power: Max 300Kw

● Impeller Dia(mm):500

● Color: Depend on customers’ requirements

● Warranty: 1-year Warranty (except wet-end parts)

Introduction:

ZGB is our successful abrasive-resistant slurry handling pump and combines an effective expeller seal with good hydraulic efficiency. From design to installation and beyond, SME engineers are available to give advice on your slurry pumping needs and problems. The ZGB range has been designed to offer a wide choice of pump sizes to suit more slurry pumping applications.

ZGB series slurry pump is a horizontal, single-stage, single-suction, cantilever, double pump shell, centrifugal slurry pump.

Over-current components can exchange ZGB and ZGBP type slurry pumps of the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopts open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.

When necessary, cooling water.

Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.

Specifications:

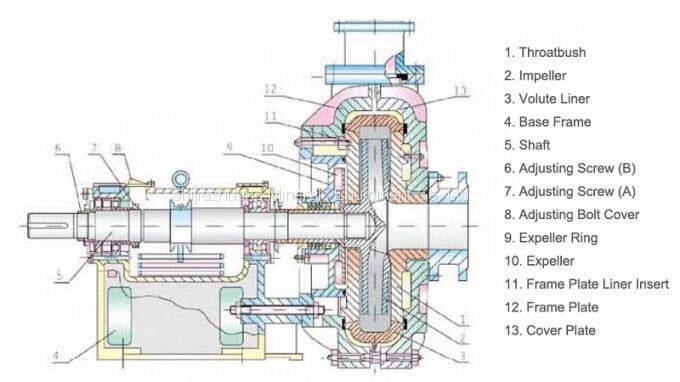

Construction of ZGB Slurry Pump:

Materials:

Standard Configuration:

Typical Applications:

Bottom/Fly Ash

Coal Washing

Power Plants

Potash Fertilizer Plant

Iron Ore Dressing Plant

Gold Mine Concentration Plant

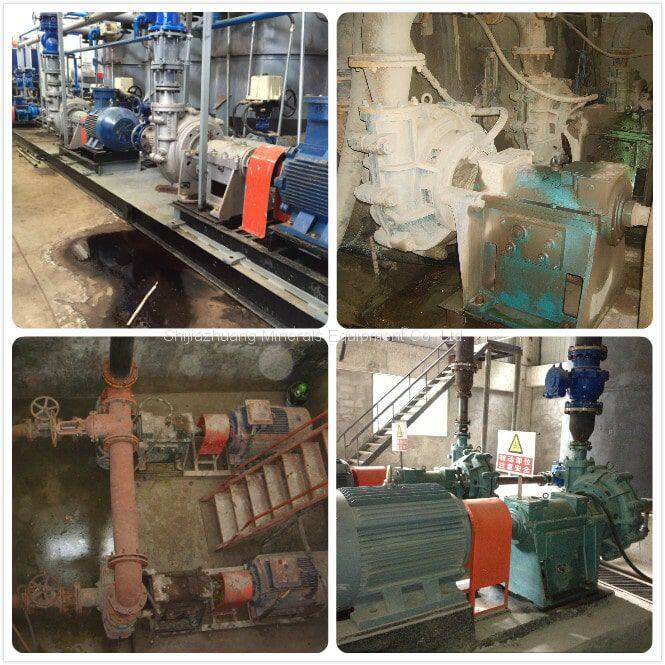

Projects of ZGB Heavy Duty Slurry Pump:
