Home > Products > Pumping units > API Nodding Horse Oil Well Pumping Units

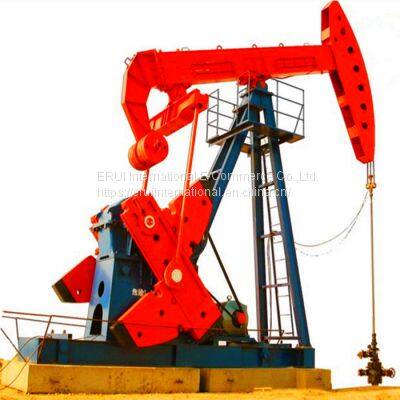

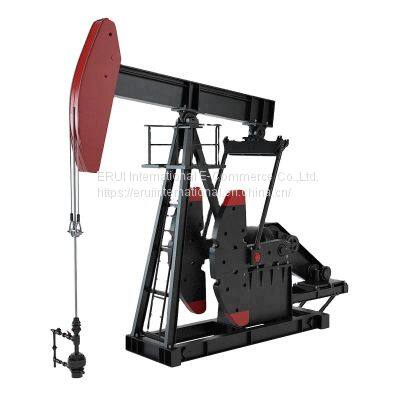

API Nodding Horse Oil Well Pumping Units
US$ 10000 - 35000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C
- 30 days
You May Like
-
API 11E Artificial Lift Surface Pumping Unit
-
API Oilfield Oil Well Pumping Unit for Petroleum Industry
-
API Oilfield Pump Jack Oil Well Pumpjack
-
Trailer Mounted Movable Oilfield Steam Injection Boiler for Petroleum Industry
-
Oilfield Skid Mounted Steam Boiler/Generator for Petroleum Industry
-
Movable Oilfield Steam Injection Boiler With Trailer for Petroleum Industry
Product Details
| Brand Name | ERUI | Place of Origin | China | |
| After-sales Service Provided | Overseas service center available | Condition | New |
Product Description
| API C series beam-pumping unit adopts crank balance. It is the most common and most widely used ground power equipment in rod pumping work. Our product accords with API Spec 11E Specifications for Pumping Units and Chinese petroleum industry standard GB/T29021-2012 and other related standards. Performance and advantages 1 Modularization and virtual manufacturing technology have been adopted in the process of designing. The products structure has been optimized, and the parts are of high standardization, universalization and serialization. 2 Finite-element analysis has been adopted as the key structure to realize stable performance and high reliability. 3 The reducer adopts symmetrical involute gear transmission or double circular arc herringbone gear transmission, with good sealing, low noise, smooth running and reliable durability. 4 The unit has the characteristics of simple operation, easy maintenance and long service life. |
| No. | Model | Rated Polished Rod Capacity (lbs) | Stroke (in) | Rated Torque of reducer (lbs.in) |
| 1 | C-912D-470-240 | 47,000 | 240,211,181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216,185,155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192,165,138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192,165,138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168,144,120 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168,144,120 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144,120,100 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192,165,138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168,144,121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144,120,100 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144,120,100 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144,120,100 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120,102,85 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168,144,121 | 57,000 |
| 15 | C-456D-305-144 | 30,500 | 144,120,100 | 40,000 |
| 16 | C-456D-256-144 | 25,600 | 144,120,100 | 57,000 |
| 17 | C-456D-365-120 | 36,500 | 120,102,85 | 40,000 |
| 18 | C-456D-305-120 | 30,500 | 120,102,85 | 25,000 |
| 19 | C-456D-256-120 | 25,600 | 120,102,85 | 25,000 |
| 20 | C-320D-256-144 | 25,600 | 144,120,100 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120,100,85 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120,100,85 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100,85,70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86,74,62 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120,100,85 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100,86,72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86,74,61 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86,74,61 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74,64,54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74,64,54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74,64,54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74,64,54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74,64,54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64,54,44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86,72,59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74,62,51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64,52,40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54,45,36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64,53,42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54,45,36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54,45,36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48,40,32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48,37,25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54,41,28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48,37,25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48,37,25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42,33,23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42,33,23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48,37,25 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42,33,23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42,33,23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36,28,20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36,28,20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36,28,20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30,20 | 25,000 |
ERUI International E-commerce Co., Ltd is a professional supplier of various oilfield oil extraction equipments since 2016. We provide products with certificates of API 11E, API 11B, API 11AX, ISO 9001 and ISO 14001, etc.
Our products mainly include:
1. Pumping Unit
2. Tubing Pump/ Rod Pump
3. Sucker Rod
ERUI International has many years of export experience and 57 subsidiaries all over the world, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
