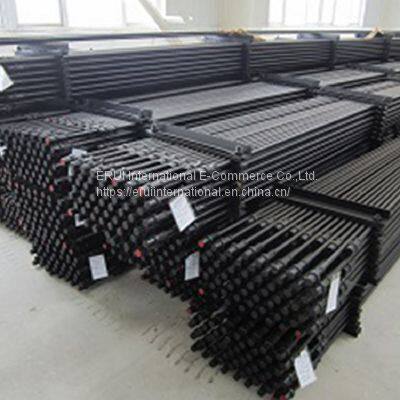

API Spec 11b Grade C, D, K Sucker Rods

FOB Price

USD $20 - $130 / Piece

50 Pieces(Min.Order)

Port Qingdao
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ERUI	Place of Origin	China
Material	Carbon Steel	Certification	API
Type	Sucker Rod	Use	Other, Oil Extraction
Processing Type	Forging	Machine Type	Drilling Tool

Product Description

GRADE D CARBON
Designed for non-corrosive or effectively inhibited wells with moderate loads. Manufactured in 4130 Mod. Steel.
GRADE D ALLOY
Designed for moderate to high loads in non-corrosive or effectively inhibited wells. Manufactured in AISI 4142 steel.
GRADE KD
Designed for corrosive wells where inhibiting is recommended, with moderate loads. Manufactured in AISI 4720 Mod. Steel.
GRADE D SPECIAL
Designed for corrosive wells with high and moderate loads where inhibition is recommended. Manufactured in AISI 4330 Mod. Steel.

API Grades
	Grade D
	D Carbon	D Alloy	KD	D Special
Steel	4130	4142	4720	4330
C	0.26-0.33	0.38-0.45	0.19-0.23	0.29-0.37
Mn	0.40-0.70	0.80-1.00	0.80-1.05	0.70-0.95
Si	0.17-0.37	0.15-0.35	0.15-0.35	0.15-0.35
Ni	0.30Max	0.45Max	0.90-1.20	1.65-2.00
Cr	0.80-1.10	0.80-1.10	0.80-1.05	0.80-1.10
Mo	0.15-0.25	0.15-0.25	0.24-0.30	0.20-0.30
MECHANICAL PROPERTIES
YS(Ksi)	85Min	85Min	85Min	85Min
UTS(Ksi)	115-140	115-140	115-140	115-140
HEAT TREATMENT
	Quenched	Normalized	Normalized	Normalized
	Tempered	Tempered	Tempered	Tempered
Rod OD	5/8″, 3/4″, 7/8″, 1″,11/8″
(mm)	(15.88), (19.05), (22.23), (25.40) , (28.58)
Rod Length	25', 30' (+/- 2.0″per API requirement)
(m)	(7.62), (9.14) (+/- 50.80mm per API requirement)

Technical Parameters of Sucker Rod

Size	Rod D.(in)	Thread D.(in)	Length of pin(mm)	Length of wrench(mm)	Width of Wrench (mm)	Length of the rod(ft)
5/8	5/8	15/16	31.75	≥ 31.8	22.20	2 / 4 /6 / 8 /10/25/30
3/4	3/4	1-1/16	36.50	≥ 31.8	25.40	2 / 4 /6 / 8 /10/25/30
7/8	7/8	1-3/16	41.28	≥ 31.8	25.40	2 / 4 /6 / 8 /10/25/30
1	1	1-3/8	47.63	≥38.1	33.30	2 / 4 /6 / 8 /10/25/30
1-1/8	1-1/8	1-9/16	53.98	≥41.3	38.10	2 / 4 /6 / 8 /10/25/30

Mechanical Property:

No.	Grade	Tensile Strength Rel(Mpa)	Yield Strength Rm(Mpa)	Percentage Elongation A(%)	Contraction Percentage Of Area Z(%)
1	C	620-795	≥415	≥13	≥50
2	K	620-795	≥415	≥13	≥60
3	D	795-965	≥590	≥10	≥50
4	KD	795-965	≥590	≥10	≥50
5	HL	965-1195	≥795	≥10	≥45
6	HY	965-1195	--	--	--

1. Sucker Rod, Type Solid, BCP use, Diameter 1-1/4in, length 25ft, Size and connection type 1-9/16in cylindrical, connection designs Spike x Box, Neck type Reduced diameter, Neck class T, Material Alloy Steel 4330, Minimal stress-strain 115000 PSI, Grade D Special, standard manufacturing API 11B-07/1998
Coupling Material:5140 Grade T
2. Details: Sucked Rod, Type Solid, BCP use, Diameter 1-1/4in, length 25ft, Size and connection type 1-9/16in cylindrical, connection designs Spike x Box, Neck type Reduced diameter, Neck class T, Material Alloy Steel 4330, Minimal stress-strain 115000 PSI, Grade D Special, standard manufacturing API 11B-07/1998
Coupling Material:5140 Grade T
3. Details: Sucked Rod, Type Solid, BCP use, Diameter 1-1/2in, length 25ft, Size and connection type 1-9/16in cylindrical, connection designs Spike x Box, Neck type Reduced diameter, Neck class T, Material Alloy Steel 4330, Minimal stress-strain 115000 PSI, Grade D Special, standard manufacturing API 11B-07/1998
Coupling Material:5140 Grade T

ERUI International E-commerce Co., Ltd is a professional supplier of various oilfield oil extraction equipments since 2016. We provide products with certificates of API 11E, API 11B,  API 11AX, ISO 9001 and ISO 14001, etc.

Our products mainly include:
1. Pumping Unit
2. Tubing Pump/ Rod Pump
3. Sucker Rod

ERUI International has many years of export experience and 57 subsidiaries all over the world, with more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
