SE Helical Tooth Slewing Drive 202108

The SE Series Slew drive adopts enveloping worm gearing, more contact and higher torque. It can fit light duty, low speed and multiple precision options

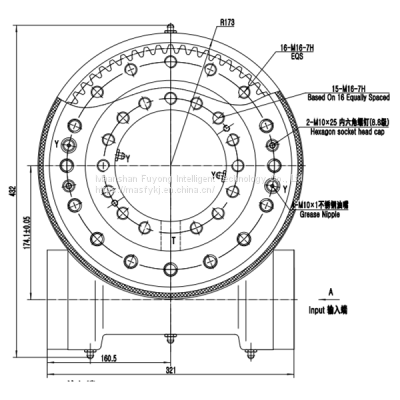

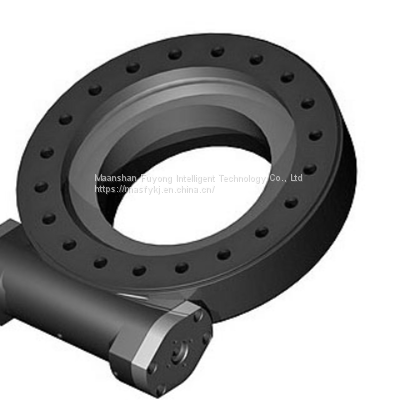

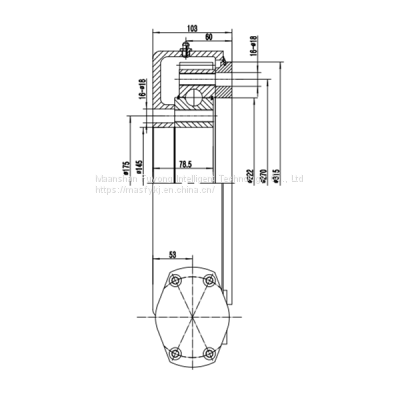

SE9 hydraulic slewing drive

To accommodate the rotation of the relative rotating structure, you can design the installation location parallel to the ground or with a few degrees of slope. The fence type horizontal slewing mechanism is assembled by a fenced base, a slewing ring, a toroidal worm and an accessory component. The motor or hydraulic motor can be used as a power input source to drive the speed reducer to rotate clockwise and counterclockwise. Due to the use of the slewing bearing as the main design component, the device has a strong overturning moment and axial force, and the same factor of the reducer, the device has a small size, convenient installation and maintenance.

SE series rotary mechanism features

Fence-type structure design can resist the harsh natural environment such as sand and rain, suitable for field use.

In order to maximize the convenience of our customers, we use a universal mounting structure to enhance the interchangeability of our products.

This product is one of the earliest and most widely used products in the slewing mechanism, and has been recognized by the European and American markets.

There are strict requirements on quality, and the products have passed CE certification and ISO9001.

Supply Ability of SE9 hydraulic slewing drive

Whether it is the entire slewing mechanism or slewing ring, toroidal worm, you can provide customized service.

Application of SE9 Helical Tooth Slewing Drive

SE series products are widely used in the relative rotation of machinery and solar energy.

Photovoltaic tracking power generation level and pitch angle transmission.

Rotate the chassis of the aerial work vehicle.

Drive the crane to rotate on the crane.

SE14 Helical Tooth Slewing Drive

Highly integrated full-cycle rotary reduction mechanism, its characteristics are not limited to this. The maximum and minimum slewing drive can drive the mechanical parts and load gaps dozens of times. But their size, especially the transmission chain axial size does not differ much. This is advantageous in flattening the structural form of the series transmission connecting mechanism, so that the entire mechanical equipment is also reduced.

In addition, whether it is a tooth type or a worm gear type slewing drive, since the size difference between the main and driven parts itself is large, is easier to realize the transmission of the large transmission ratio, which is also difficult for many other types of variable speed transmission mechanisms.

Maanshan Fuyong Intelligent Technology Co., Ltd. is a professional slewing ring manufacturers, we provide worm drive slew ring, slewing ring drive, slew gear drive and etc. Want to know more? Please contact us.
