VE9 Vertically-Mounted Slewing Drive
- 1300 Piece / Pieces per Month
- T/T
You May Like
Product Description

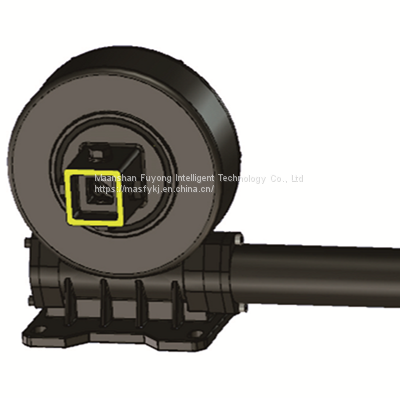

VE9 Vertically-Mounted Slewing Drive
The biggest highlight of the VE series is the vertical structure design. The vertical structure is mainly applied to solar tracking power generation. Its special structure effectively simplifies the complex structure design of the EPC bracket, reduces the overall system cost, and uses the vertical design to be more competitive in the market. The PE series precision type is processed by the latest technology, so that the tracking accuracy of the product can reach up to 0.05 degrees. The most important feature of the precision type is the ability to achieve precise and precise transmission and accurate positioning. This china slewing drive product also has a flexible input interface form, which is convenient for connection of various hydraulic motors and geared motors.
Main Application：single axis solar tracker, dual axis solar tracker, Vertical rotation of photovoltaic concentrating, photothermal power generation, etc.
Supply ability: Customized design.
Slewing Drive Performance Data | |
Normal Output Torque | 5500N.m |
Max. Output Torque(3sec.) | 8450N.m |
Backwards Holding Torque | 36000N.m |
Tilting Torque | 16000N.m |
Static Radial Rating | 130KN |
Static Axial Rating | 60KN |
Dynamic Radial Rating | 65KN |
Dynamic Axial Rating | 30KN |
Slewing Drive Ratio | 61:01:00 |
Rotating Output Rated Speed | 0.028rpm |
Efficiency | 40% |
International Protection(IP) | 66 |
Tracing Precision | 0.1° |
Worm Drive Temperature | -20℃-+120℃ |
Self-Lock Drive | Yes |
Torsion Stiffness | 3107Nm/mrad |
Bending Stiffness | 1902Nm/mrad |
As a slewing bearing distributor, we have types of slewing ring drive for sale, if you have needs, please leave us a message.
