Diameter in 0.4/0.45/0.5mm R Type Thermocouple Compensation Cable
- T/T Credit Card
You May Like
-
WRP-130 S Type Pt-Rh Thermocouple Length 500mm
-
High Temperature Portable k Type Thermocouple With Digital Thermometer With Handle
-
TOPRIGHT Armored k Type Thermocouple With Junction Box
-
New Product N Type Thermocouple With Metal Head Use for Industry
-
Assembly Stainless Steel K Type Thermocouple WRN-130 WRN-230
-
WZP Without Ceramic Sensor Pt100/pt1000
Product Details
| Brand Name | TOPRIGHT | Place of Origin | Jiangsu, China | |
| Model Number | RC |
Product Description
Specifications
1)thermocouple compensating cable
2)IEC standard
Description:
Thermocouple` wire is wire compensation for thermocouples and second (base) of the instrument signal transmission, to the elimination of thermocouple cold junction temperature measurement error caused by the change to ensure that the instrument on medium temperature measurement accuracy, applicable to the power, metallurgical, oil, chemical, textile and other industrial and national defense research departments automation Thermometer single point or multi-point connection.
Insulation and sheath can be customized according to customer requirment !
Thermocouple wire technical indicators:
| Model | Graduation | Equipped with thermocouple | Compensation wire alloy wires | ||
| Cathode | Anode | Color | |||
| BC | B | PtRh30-PtRh6 | Cu | Cu | Follow standard:BS/ANSI/DIN/JISC |
| SC | S | PtRh10-Pt | SPC(Cu) | SNC(Cu-Ni0.6) | |
| RC | R | Pt-Rh3-Pt | RPC(Cu) | RNC(Cu-Ni0.6) | |
| KCA | K | NiCr-NiSi | KPCA(Fe)
| KNCA(Cu-Ni22) | |
| KCB | KPCB(Cu)
| KNCB(Cu-Ni40) | |||
| KX | KPX(Ni-Cr-Si14) | KNX(Ni-Si4) | |||
| NC | N | NiCrSi-SiNi | NPC(Fe)NPC (railways) | NNC(Cu-Ni18) | |
| EX | E | SiNi-CuNi | EPX(NiCr10) | NNX(Ni-Si4) | |
| JX | J | Fe-CuNi | JPX(Fe) | JNX(Cu-Ni45) | |
| TX | T | Cu-CuNi | TPX(Cu) | TIPS(Cu-Ni45) | |
| WC3/25 | WRe3-WRe25 | WRe3-WRe25 | WPC3/25 | WNC3/25 | |
| WC5/26 | WRe5-WRe26 | WRe5-WRe26 | WPC5/26 | WPC5/26 | |
Thermocouple wire Insulation detail:
Thermocouple Color standard:

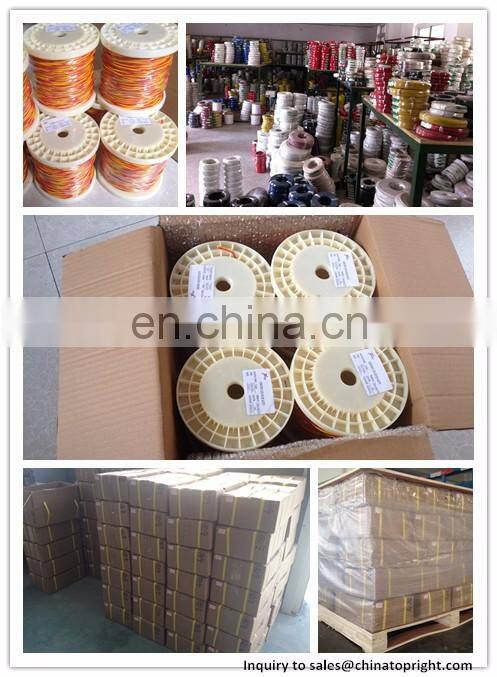

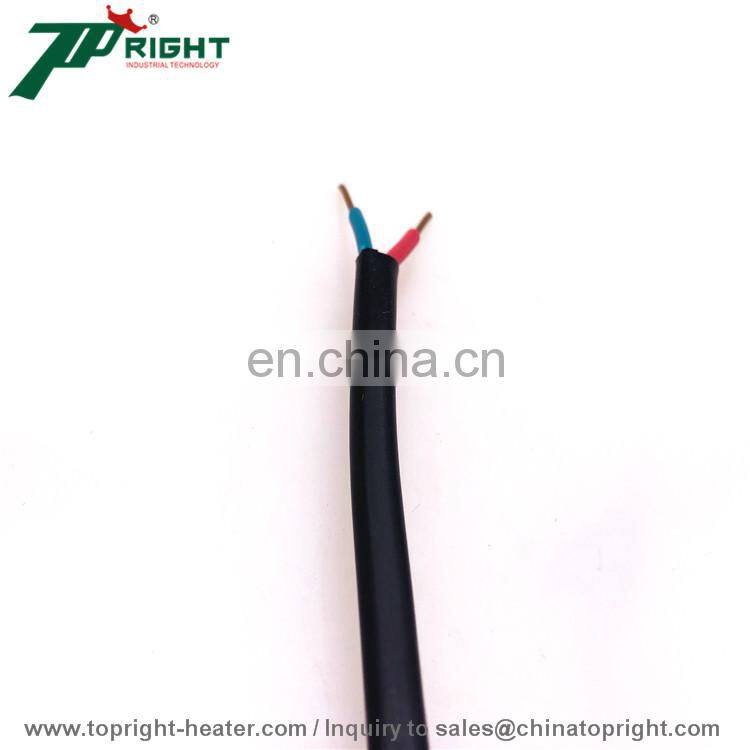

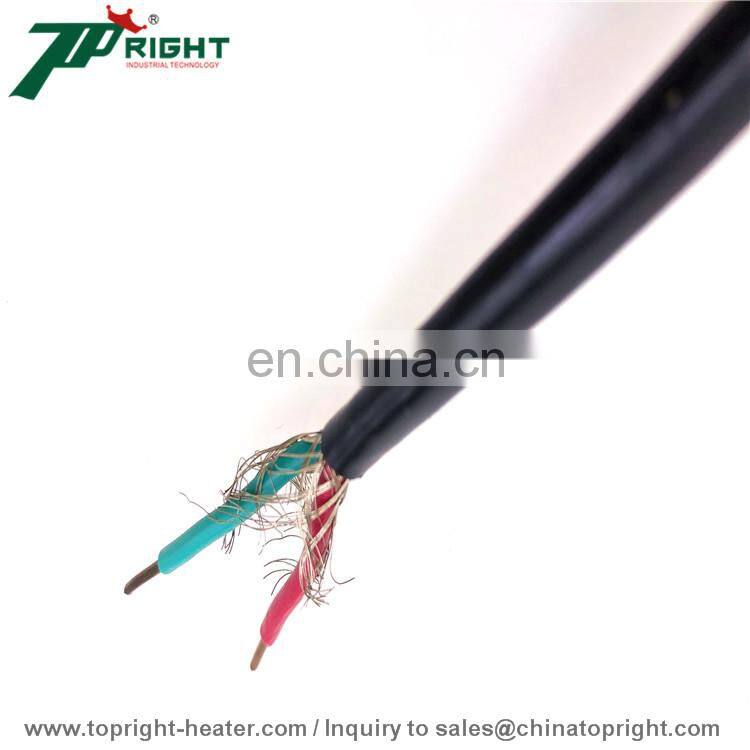

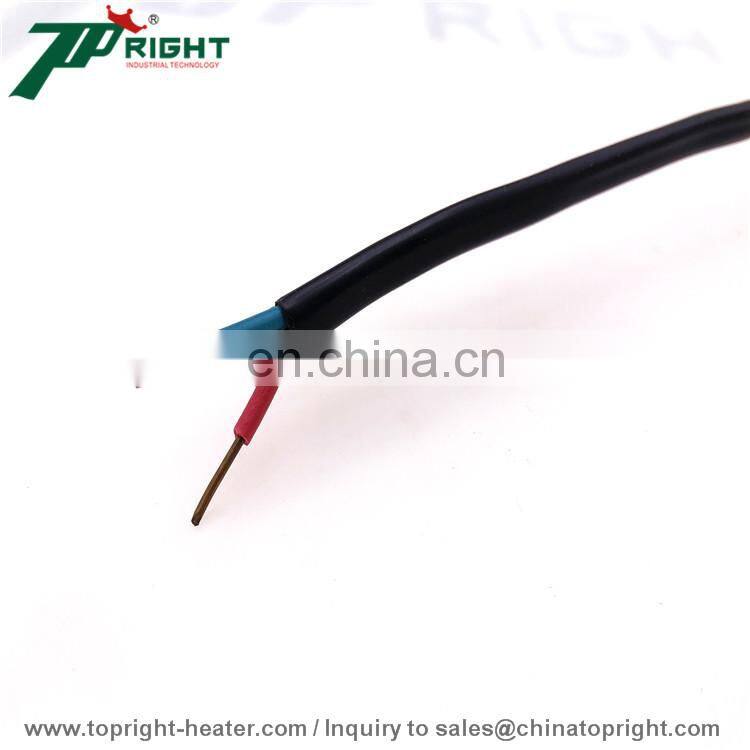

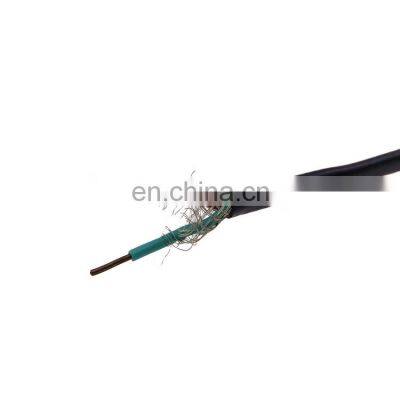

Thermocouple wire/cable photo:
Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 200 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater, thermocouple and ect. More details pls link online store:
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
Order Guide:
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Topright sales send the Proforma Invoice with Topright seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Topright Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term which we discussed. Inform the tracking number and check the status for clients. |
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Paypal,Western nion,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
