K Thermocouples Match Well
- T/T Credit Card
You May Like
-
Thermocouple K in Multi-channel Thermometer
-
Soldering Iron With Pt100 Type Thermocouple
-
Thermocouple PT100 Heating Element Temperature Controller With High Temperature Sensors
-
J Type Compression Spring Circlip Thermocouple
-
High Temperature 1200 Degree K Type Thermocouple 16*600mm
-
K Type in Armored Furnace,Bolier, Oven Thermocouple /for Specific Application
Product Details
| Brand Name | TOPRIGHT | Place of Origin | Jiangsu, China | |
| Model Number | K type |
Product Description

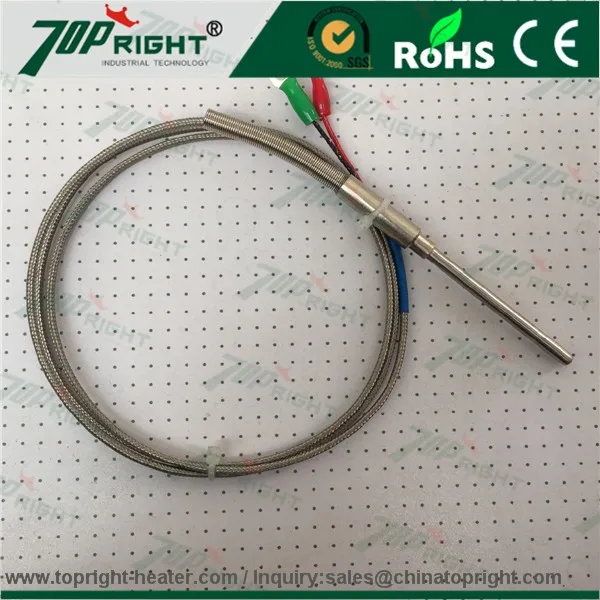

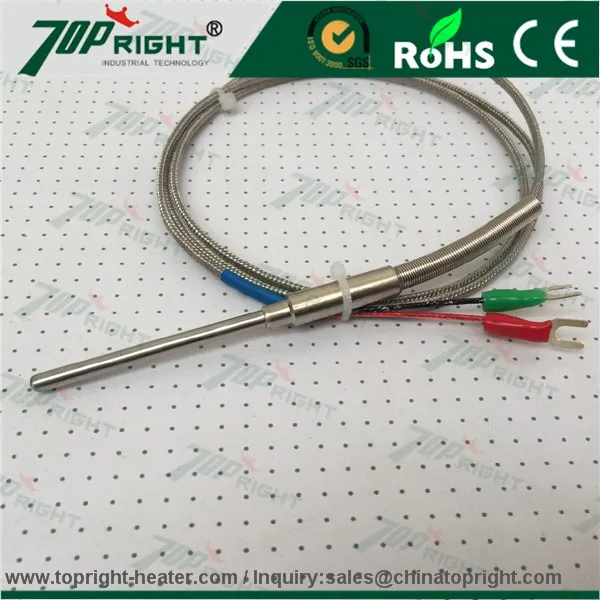

Thermocouple of type K Description:
K type of thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
K type of thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
K type of thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure Thermocouples and RTD pt100 sensors a wide range of temperatures.
Type of thermocouple to choose:
Product | Conductor material | Type | Graduation | Use temperature°C(short time) | Use temperature°C |
Thermocouple | PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C |
PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | |
PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | |
NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | |
NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | |
NrCr-constantan | WRE | E | 0-700°C | 0-600°C | |
Iron- Constantan | WRF | J | 0-600°C | 0-500°C | |
Copper-Constantan | WRC | T | 0-400°C | 0-350°C | |
Thermal resistance | Copper heat resistance | Cu50 | -50-150°C | ||
Cu100 | -50-150°C | ||||
Pt100 | -200-600°C |
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.
WRJK-191
J type thermocouple
Probe dia.8mm,Length 20mm
K /J/E/N type thermocouple
TFE68 J type thermocouple for hot runner heating system
Pt100
dia 3x15mm
Pt100
dia 3x50mm
Pt100
dia 5x50mm
All kinds of thermocouple from Topright Industrial,welcome inquiry!
Give me a try,you will happ you did!
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.
1)Plastic foam for thermocouple!
2)Carton for thermocouple!
3)Wood box for thermocouple!
4)Adequate security for thermocouple!
Since 2001,Topright
have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 200 countries. Please link:
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart". Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
