Electric-Focus Thermal Imaging Camera With 0.48mrad IFOV and 12μm Pixel Pitch for Precision Monitoring
- T/T L/C PayPal Other
- 7 days
You May Like
-
Portable High-Accuracy Thermal Camera With Gigabit Ethernet, POE Power, and RS485 Communication Support
-
Multi-Protocol Thermal Camera With H.265 Video, 1–8× Digital Zoom, and Alarm Output Option
-
Smart Thermal Imaging Device With 640×512 Sensor, 12 Measurement Zones, and Isotherm Control
-
Smart Thermal Imaging Device With 640×512 Sensor, 12 Measurement Zones, and Isotherm Control
-
CX200 SE+ Handheld Thermal Camera
-
CX200 Pro+ Handheld Thermal Camera
Product Details
Warranty | 1 year | Transport Package | Other | |
Specification | 56mm×51mm×119mm | Trademark | Raythink | |
Origin | Yantai |
Product Description
AT Series
Feature
Specification
Thermal Imaging Parameters | |
---|---|
DetectorUncooled VOx detectorInfrared Resolution384×288Pixel pitch17μmSpectral Band8μm~14μmThermal Sensitivity (NETD)<50mK | |
Temperature Measurement Function | |
Measurement Range-20℃~+150℃,0℃~550℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, lines, and areas Supports isotherm settingTemperature Width StretchSupport temperature width stretch | |
Image and Video | |
Frame Rate50HzPalettes18 color palettes including black-hot, white-hot, iron red, rainbow, etc.Video StandardsH.264, H.265Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1) | |
System Interface | |

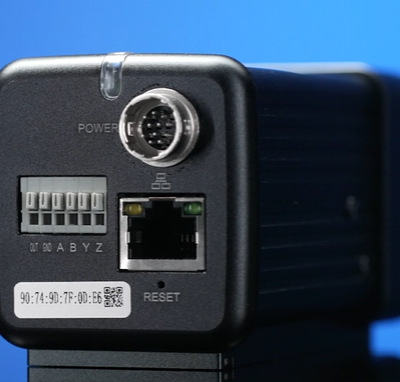

Communication interfaceRJ45,supporting Gigabit network and customized RS485 for Pecol-D protocol.Video Interface1-channel analog videoAlarm Interface1-channel alarm output (optional)Network ProtocolTCP, UDP, ICMP, DHCP, RTSPInterface ProtocolONVIF, GB28181 | |
Device Specifications | |
Operating Temperature-20℃~+60℃Power supply mode10~36V DC, POETypical Power Consumption3WDimensions56mm×51mm×119mmWeightAbout 430g |
Application Scenarios
Company Profile

Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
