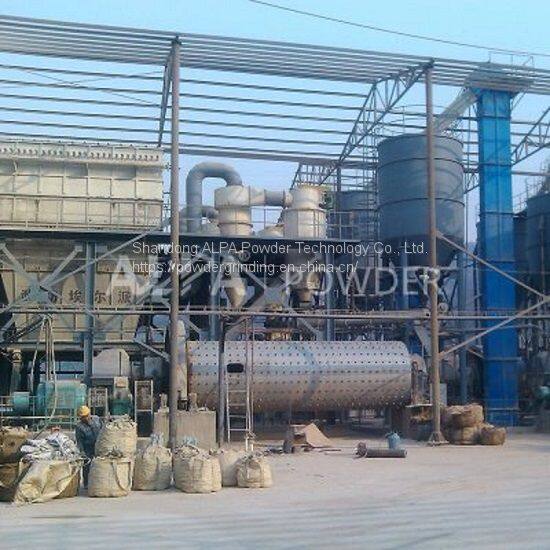

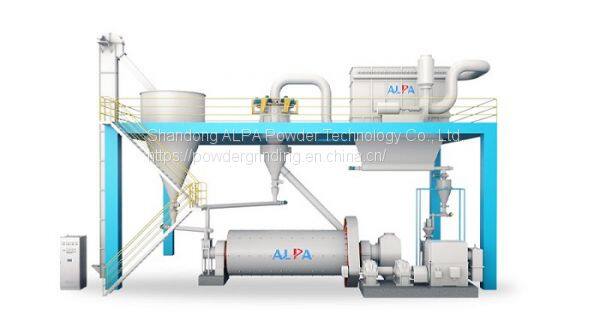

3-45um Powder Vibratory Ball Mill Grinding and Classifying Production Line

3-45um Powder Vibratory Ball Mill Grinding and Classifying Production Line

Ball Mill Features

1.The design is different from traditional cement mills and mining and metallurgical mills, and meets the requirements of German superfine filler grade mineral processing;

2.Optimize the aspect ratio to prevent excessive grinding and achieve optimum grinding results;

3.Optimize the opening ratio and opening design of the jaws, and increase the grinding fineness with a smaller grinding media;

4.The slab-type grinding tail discharges, the discharging is smooth, there is no grinding phenomenon, and the cylinder does not need to be cooled;

5.Grinding media according to product requirements, reasonable ratio, high filling rate, high efficiency;

6.Grinding aids when grinding ultrafine powders to improve grinding efficiency;

7.Optimize the matching of drive and grinding energy to maximize energy savings;

8.And the classifier forms a closed system, negative pressure conveying, no dust;

9.Optimize the shape and material of the lining and grinding media, according to German standards, reduce the damage rate and improve the grinding efficiency.

Classifier Features

Different models of Classifier could be selected depending on different fineness of products.

FW series Classifier are suitable for classifying of D97：3～20μm products, FL series for classifying of D97: 8～45μm products.

Wide range of adjustment is available with each Classifier and the application is extensive in market

Quantitative System

Ball mill feedstock adopts a precise quantitative system, which can stabilize the feed even if the density of the material changes；

Classifier feedstock adopts a precise quantitative system and interlocks with the discharge of the ball mill to ensure the stability of the system operation and product granularity;

High-precision metering pump, according to fineness requirements of product, spray the grinding aid into the mill with accurate time and dosage;

The damper valve has an airflow measurement system that allows accurate control of the flow volume and rate of classifying

Control Systems

Both the material silo and product silo have leveler, which can realize automatic control of the entire production line;

Using PLC control, the light flow chart shows the running status, which is clear and easy to operate

Environmental Protection and Noise Control

Adopt membrane filter bag, dust emission is less than 20mg/m3;

Adopt efficient muffler, exhaust noise<80dB(A);

All heavy-duty moving parts have shock absorbers;

There is no waste water discharge, only the cooling water of the ball mill bearing and can be recycled.
