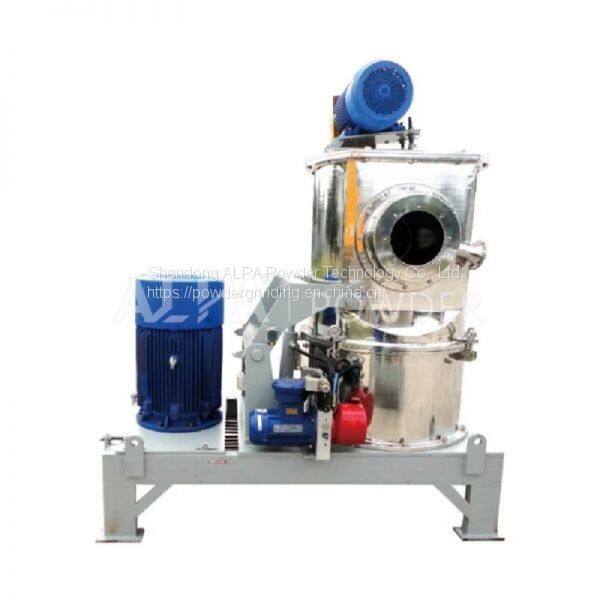

Sulfur Powder ACM Grinding Machine Air Classifier Mill Machinery

Sulfur Powder ACM Grinding Machine Air Classifier Mill Machinery

ACM Air Classifier Mill Features

1.Available D50:1.5～15μm;

2.Classifying wheel is Horizontally installation;

3.Integration of grinding and classifying, classifying wheel is adjustable to obtain ideal particle;

4.Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency;

5.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process;

6.High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.

ACM Air Classifier Mill Working Principle

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc.

At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding.

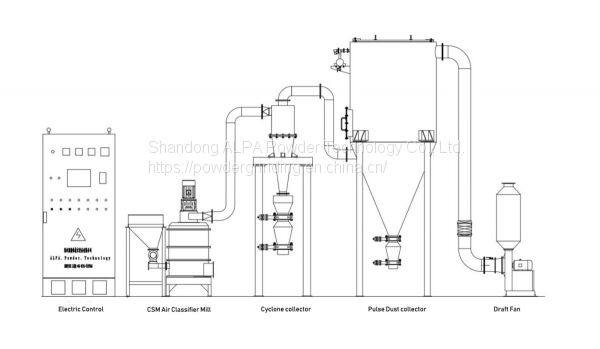

The grinded material moves to the classifying zone with the airflow. The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.

The use of sulfur powder:

1. Chemical industry

It is used in rubber tires, chemical fibers, pesticides, dyes, papermaking, medicine, sugar and pesticide chemical industries. Various phosphors used in the manufacture of television picture tubes and other cathode ray tubes in the electronics industry. The vulcanizing agent in rubber is also an advanced chemical reagent. Sulfur can be used to make industrial sulfuric acid.

2. Agriculture

In agriculture, it can be used to adjust soil nitrification and PH value, and can also be used to make pesticides and fungicides.

In addition, it is widely used in medicine, food industry, military field, semiconductor industry and other fields.
