Widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries.

Jet Mill Features:

1.Available particle size D50:1-25μm;

2.Speed of wheel is controlled by converter, particle size can be adjusted freely;

3.High energy utilization rate, promote material flow, improve powder screening efficiency;

4.PLC control system, easy operation;

5.Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials;

6.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.

Jet Mill Working Principle:

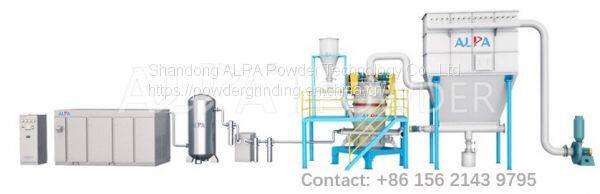

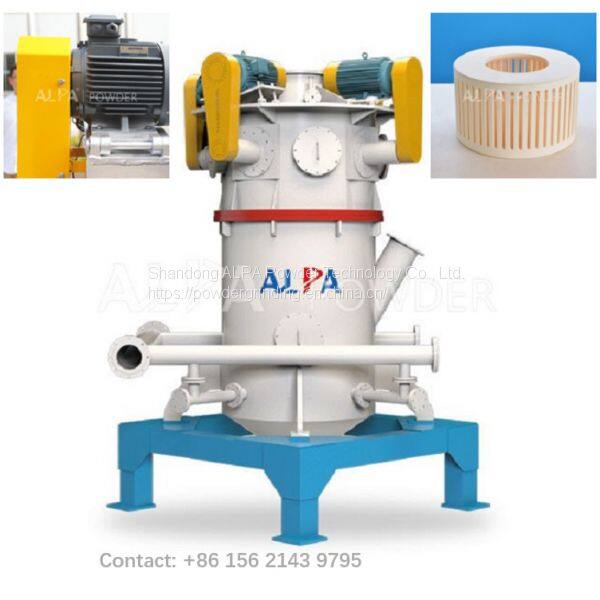

Fluidized(Fluidised) bed opposed jet mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.

Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Jet Mill Engineering Cases:

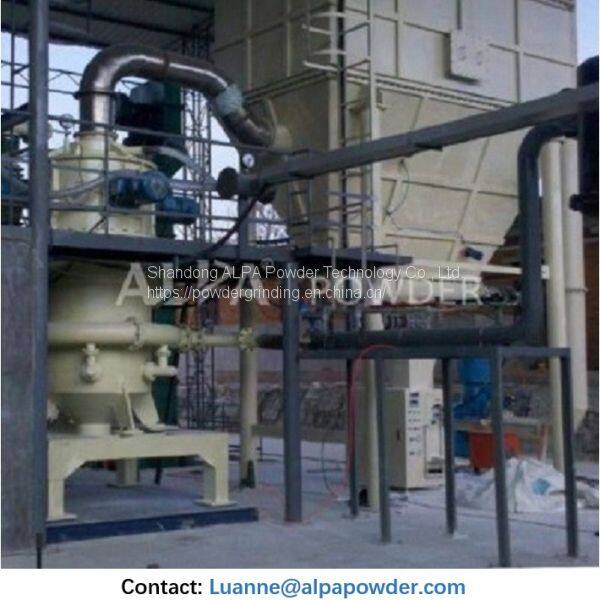

Korea a food enterprise, rice flour output 400-500KG/H, particle size D90:45μm, Jet Mill Production Line
