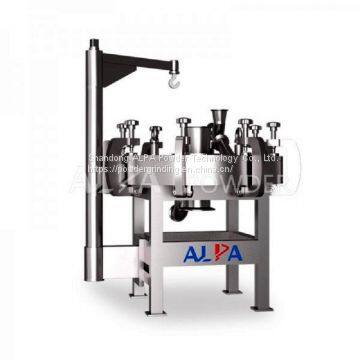

Silver Powder Grinding Mills Spiral Flow Jet Mill Systems

Silver Powder Grinding Mills Spiral Flow Jet Mill Systems

Spiral Flow Jet Mill Features

1.Available particle size D50:1.5-45μm;

2.No dead angle, easy disassembling and cleaning;

3.Free of transmission parts, self-classifying structure;

4.CIP/SIP design is optional;

5.Meet GMP/FDA requirements;

6.PLC control system, easy operation;

7.Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials

Spiral Flow Jet Mill Working Principle

Pharmaceutical jet mill(Medical jet mill,Pharmacia jet mill,pharmacy jet mill) works with cyclone separator, dust collector and suction fan to form a complete grinding system.

Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.

Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.

Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Spiral Flow Jet Mill Technical Parameters

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
