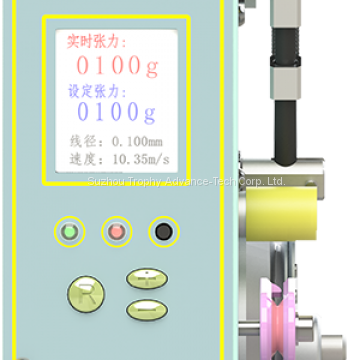

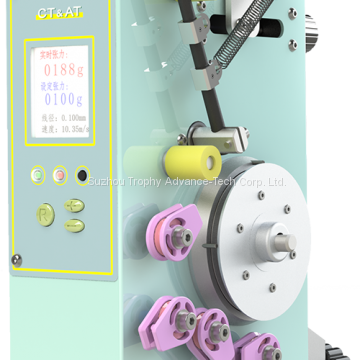

TROPHY Electronic Tensioner MET-SD Series With Real Time Tension Display and Multiple Setting for Coil Winding Machines
- SHANGHAI
- T/T
You May Like
-
Coil Winding Tensioner Servo Tensioner for Coil Winding Machines DS-TT Series
-
Coil Winding Tensioner Magnetic Tensioner for Coil Winding Machines NMTC
-
TROPHY Mechanical Tensioner TC Series for Coil Winding Machines
-
Tension Monitor TD SERIES
-
TROPHY Mechanical Tension Meter T1 Series
-
TROPHY Digital Tension Meter T6 Series
Product Details
| Brand Name | TROPHY | Place of Origin | China | |
| Model Number | MET-NSD Series | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
MET-SD has a newly developed closed-loop automatic tension adjustment function. The actual tension can always be kept consistent with the pre-set tension.
The operation is simple, the display is intuitive, high precision tension control; extremely fast feedback system tracks the changes in wire travel speed and measure tension in real time; and adjust the output tension accordingly. MET-SD provides multi-stage tension alarm setting, also allows remote setting from winding machine’s PLC.
Advantages:
- Electronic constant tension control technology
- Multiple tension setting
- Switching between pre-set tensions are simple and easy
- Built-in wire break detection
- Built-in upper and lower limit alarm output (multiple setting)
- Compatible with stand-alone settings, and remote PLC settings for multiple tensioners
MET series
Part Number | Tension Range | Suitable Wire Size |
MET-NSD100 | 15-100g | 0.04-0.12mm |
MET-NSD300 | 30-300g | 0.06-0.22mm |
MET-NSD500 | 50-500g | 0.08-0.30mm |
MET-NSD1000 | 100-1000g | 0.10-0.45mm |
MET-NSD2000 | 200-2000g | 0.15-0.65mm |
