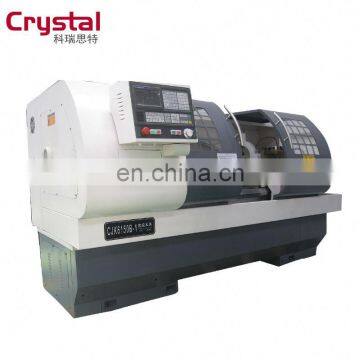

CJK6150B China Horizontal CNC Lathe Machine Price
- T/T Credit Card
You May Like
-
Fanuc Cnc Lathe Machine, Bench Lathe CK6136A
-
CK6150T CNC Lathe Machine Price CNC Turning Lathe
-
High Precision Fanuc Controller Optimum Big Cnc Lathe CK6150A /1000mm
-
Manual 3 Jaw Chuck Cnc Lathe Machine CK6150A, Cnc Machine, Machine Tool
-
Gsk Servo Drive Automatic Feeding Cnc Lathe Machine Tool CJK6163B
-
CJK6150B-1*1000 Cnc Lathe Metal Cutting Machine Tool
Product Details
| Brand Name | Crystal | Place of Origin | Shandong, China | |
| Model Number | CJK6150B-1 | |||
| Condition | New |
Product Description

China CNC Lathe Price CJK6150B-1
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
CJK6150B-1 Lathe Features:
1. High frequency quenching rail, hardness and high wear resistance
2. 3-gear spindle speed, step-less in gear
3. Spindle with high speed and high precision bearings
4. Increase the spindle diameter to φ82mm, chuck diameter φ250mm
CJK6150B-1 Lathe Specifications:
Item | CJK6150B-1 |
Max. Swing over bed | Φ500mm |
Max. Swing over cross slide | Φ280mm |
Processing length | 750mm/1000mm/1500mm |
Width of the bed | 400mm |
Diameter of spindle bore | Φ82mm |
Spindle taper | 1:20/Φ90 |
Spindle nose | Type of spindle head D-8 |
Spindle speed | 30-150,100-500,320-1600rpm |
Chuck size | 250mm |
Tool holder | 4 station |
Tool bar section | 25X25mm |
Main motor power | 7.5KW |
X/Z axis position accuracy | 0.02/0.025mm |
X/Z axis repeatability | 0.01/0.012mm |
X/Z axis torque | 6/10N.M |
X/Z axis travel | X 360 Z 750mm/1000mm/1500mm |
X/Z axis fast feeding speed | 8/10 M/MIN |
Tailstock sleeve travel | 150mm |
Tailstock taper | MT5 |
Dimension | 2410/2660/3160*1560*1730mm |
Weight | 2900/3300/3600kg |
Lathe bed structure type | Split casting type/Overall casting type |

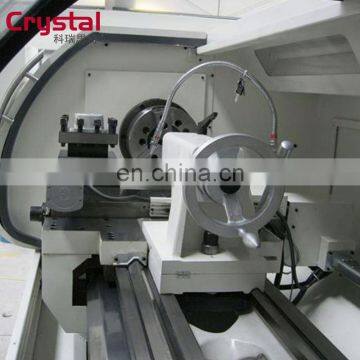

CJK6150B-1 Lathe Details:
1.Guide width: 390mm
2.Spindle bore: 82mm
3.4-position electrical tool carrier/turret/post
4.Spindle speed: auto 3 -steps speed change by one handle, stepless speed change in the step (range of spindle speed: 20-100,100-550,400-1600rpm)
5.X/Z axis servo drive
6.CNC system: GSK980TB2
7.Motor power: 7.5KW
8.Automatic electronic pump lubrication
9.Semi-enclosed protection
10.Manual chuck,manual tailstock
CJK6150B-1 Lathe Optional Configuration :
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder


1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
