Home > Products > CNC Lathe Machine > cnc turning lathe CJK 6150B cnc lathe machine tool new cnc machine for sale

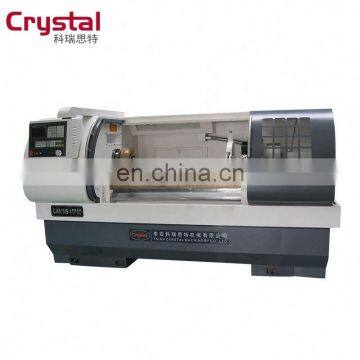

cnc turning lathe CJK 6150B cnc lathe machine tool new cnc machine for sale
- 12 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
semi automatic CK6136A cnc lathe machine price
-
CNC lathe machine with Siemens controller CK6140A
-
mini cnc machine CK0632A meter cnc lathe multi-purpose metal working machine
-
Siemens cnc controller metal thread cutting CK6432A cnc lathes machine tol with low cost
-
used cnc lathe CK6132A for metal cutting tools for lathe with low cost
-
used lathes 6150T*750 cnc lathe metal cutting machine tool
Product Details
| Brand Name | crystal | Place of Origin | Shandong, China | |
| After-sales Service Provided | No overseas service provided | Condition | New |
Product Description
A.Main features:
1. after the lead rail of the machine is treated by super-audio quenching and finish grinding and plastic coating, it is of good rigidity and stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
B. specifications
ITEMS | Specifications |
Max.swim over bed | Φ500mm |
Max.swim over carriage | Φ280mm |
Max.length of work piece | 1000mm |
Range of spindle speed | 24 levels speed change |
Spindle bore | Φ82mm |
Taper of spindle bore | 1:20/ Φ 90 |
Stations of tool carrier | 4/6/8/or gang-type tool carrier |
Min.setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
Taper of taikstock quill | MT5 |
Max.range of tailstock quill | 150mm |
Motor power | 7.5KW |
Packing size(lenght×width×height) | 2400 mm×1400 mm×1740mm |
Net weight | 2600/2700kg |
C. instructions of other devices:
Brands of standard configuration of CNC | GSK and KND |
Structure style of spindle | 24-levels gear shifting |
Protective cover and door | metal plate cover and double protective door |
Position of CNC system | on the right side, right-left move |
lighting system | standard T8 fluorescent lamp |
Cooling system | water cooling |
Lubrication system | automatic lubrication controlled by microcomputer |
Brands of motor-driven tool carrier | Hongda and Sanhe |
Type of cabinet base | separated type |
