DL32Mx2000 Slant Bed Cnc Turning Lathe Machine for Sale

FOB Price

US$ 40,000 - 150,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DALIAN	Place of Origin	Liaoning, China
Model Number	DL32Mx2000 slant bed cnc lathe machine	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

DL32Mx2000 slant bed cnc lathe machine

Machine Features

1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;

2. The machine bed is made of heat stabilized cast-iron;

3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;

4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;

Standard Configuration

5. 45° inclined bed split and box guide way;

6. spindle stepless speed;

7. 12-station hydraulic turret;

8. 15″ hydraulic Solid chuck and Hydraulic tailstock;

9. Lateral waste device and Closed-end protection;

Detailed Photos

Main Technical Data

Specifications	Unit	DL32Mx2000 slant bed cnc lathe
Swing over bed	mm	Φ680
Center distance	mm	2000
Max. turning diameter(Shafts/ Discs)	mm	Φ400/630
Guide way type	mm	box-type
Chuck size	mm	15"
Spindle nose		ISO A2-11
Spindle speed	rpm	20~2000
Main spindle motor power(S6)	kW	22(30)
Spindle bore diameter	mm	Φ100
X-axis travel	mm	375
Z-axis travel	mm	1030
X-axis rapid traverse	m/min	13
Z-axis rapid traverse	m/min	13
Positioning accuracy	mm	(X)0.012(Z)0.025/0.03/0.04/0.05
Repeat positioning accuracy	mm	(X)0.007(Z)0.012/0.013/0.016/0.02
Turret: number of stations	mm	12
Tool size	mm	32×25
Tailstock quill diameter	mm	Φ160
Tailstock quill travel	mm	180
Tailstock taper	MT	5
Machine size: L×W×H	mm	6740×2040×2240
Net weight	kg	13000

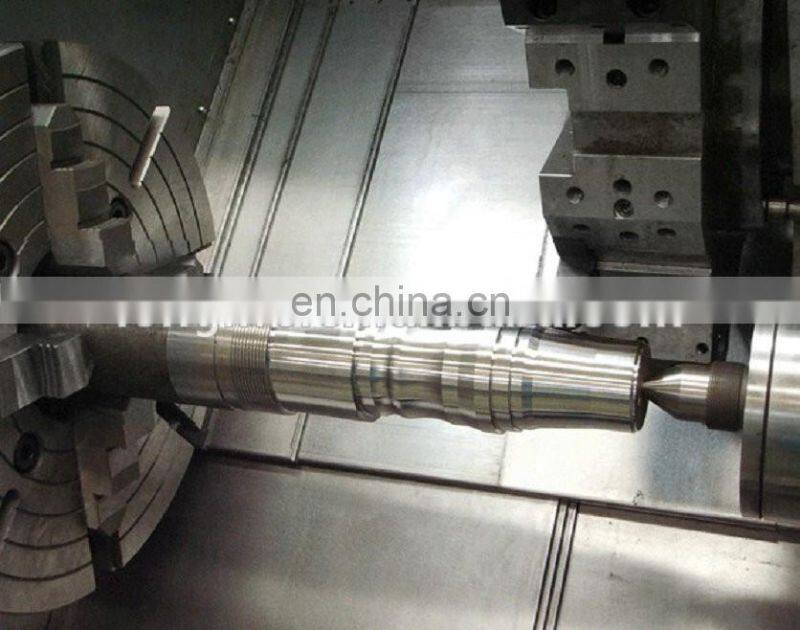

Machining Sample

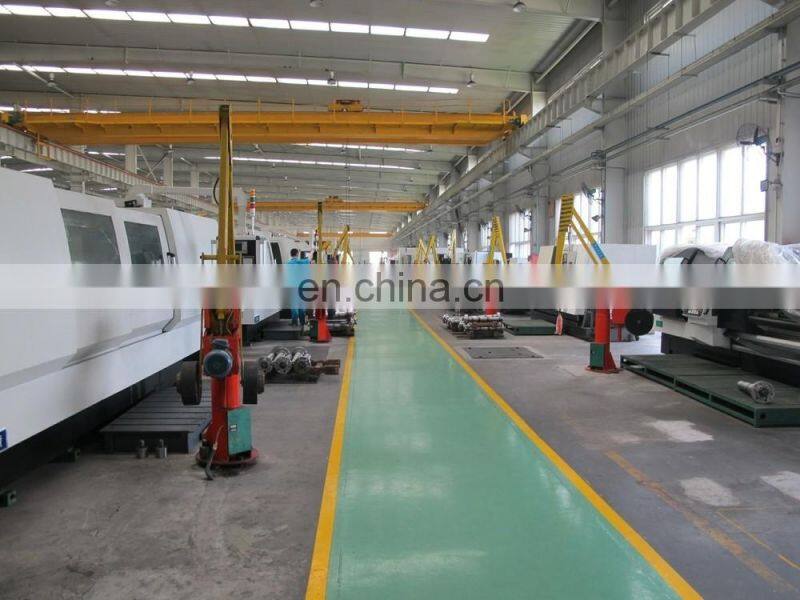

Factory Overview
