3 Axis CNC Milling Machine VMC1060L

FOB Price

US$ 45,000 - 45,000 / Set

1 Set(Min. Order)

Port Qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	hankui		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

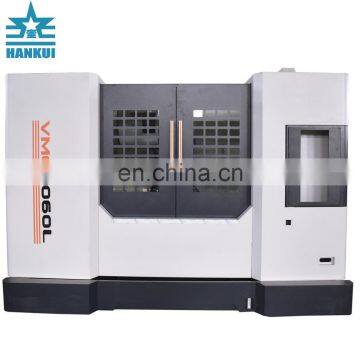

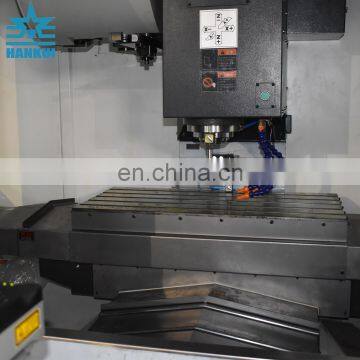

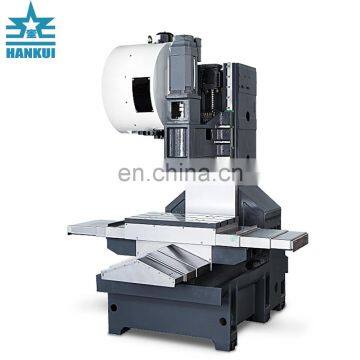

3 axis CNC milling machine VMC1060L

Product Description

Standard configuration:
1)11kw servo motor, spindle speed 8000rpm, BT40;

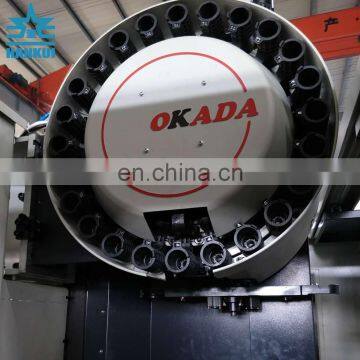

2) 24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway
6) ROYAL/POSA/KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:
1)No tool magazine;
2) 24 tools Umbrella-type tool magazine
3) Spindle speed 10000r
4) Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, PMI roller type linear guideway;
5) Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, Rexroth roller type linear guideway;

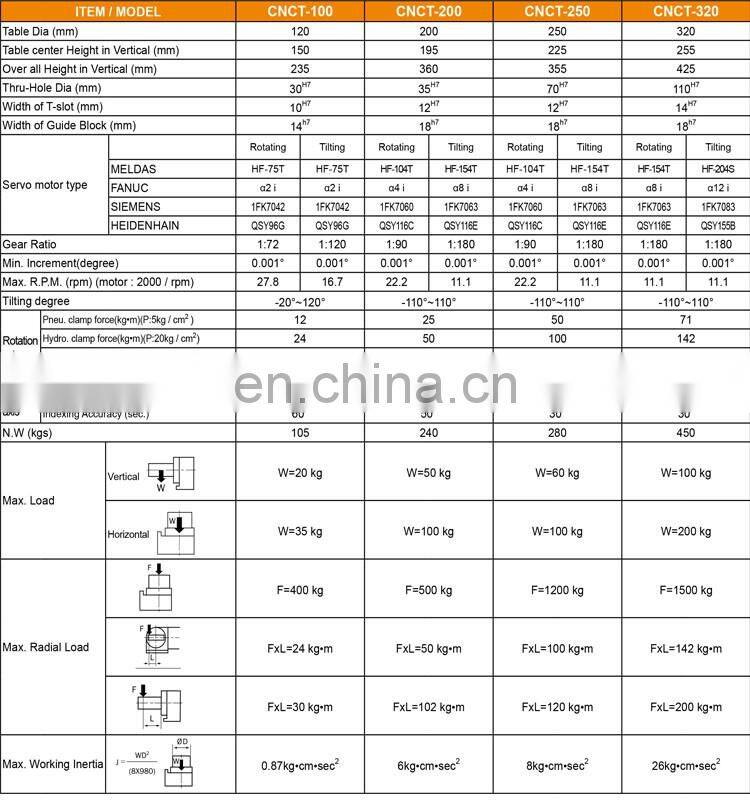

6) 4th axis ( bar type, made in China), center height 125mm, with tailstock;
7) 4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock;
8) 4th axis (bridge type, GSA Taiwan)170R/200R/250R

Option Control system:
1)SIEMENS;
2)FANUC;
3)KND;
4)GSK;
5)MITSUBISHI;
6)Syntec;

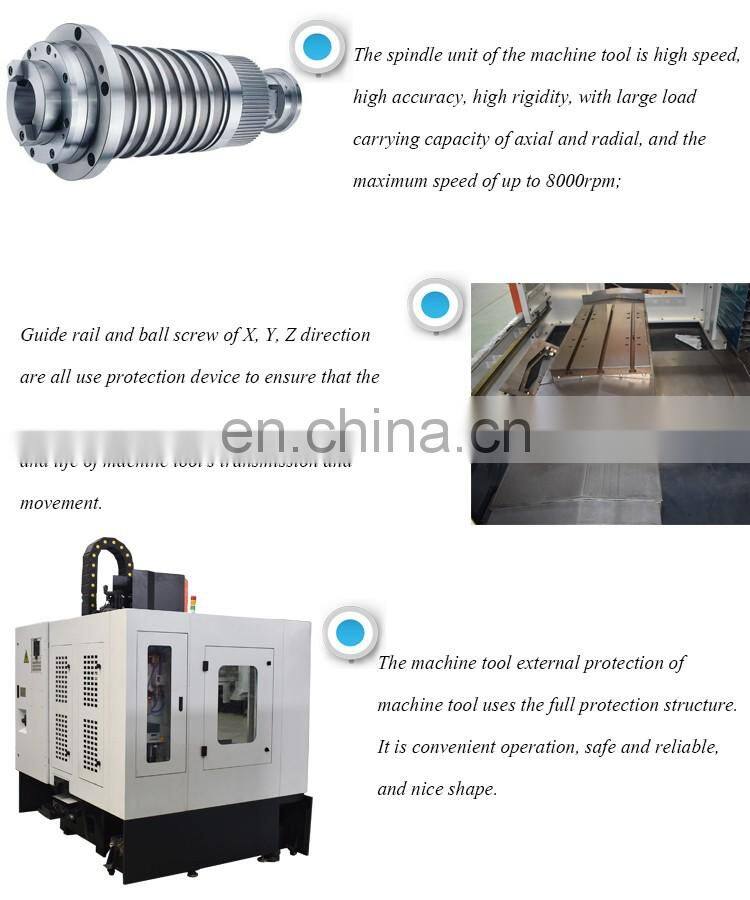

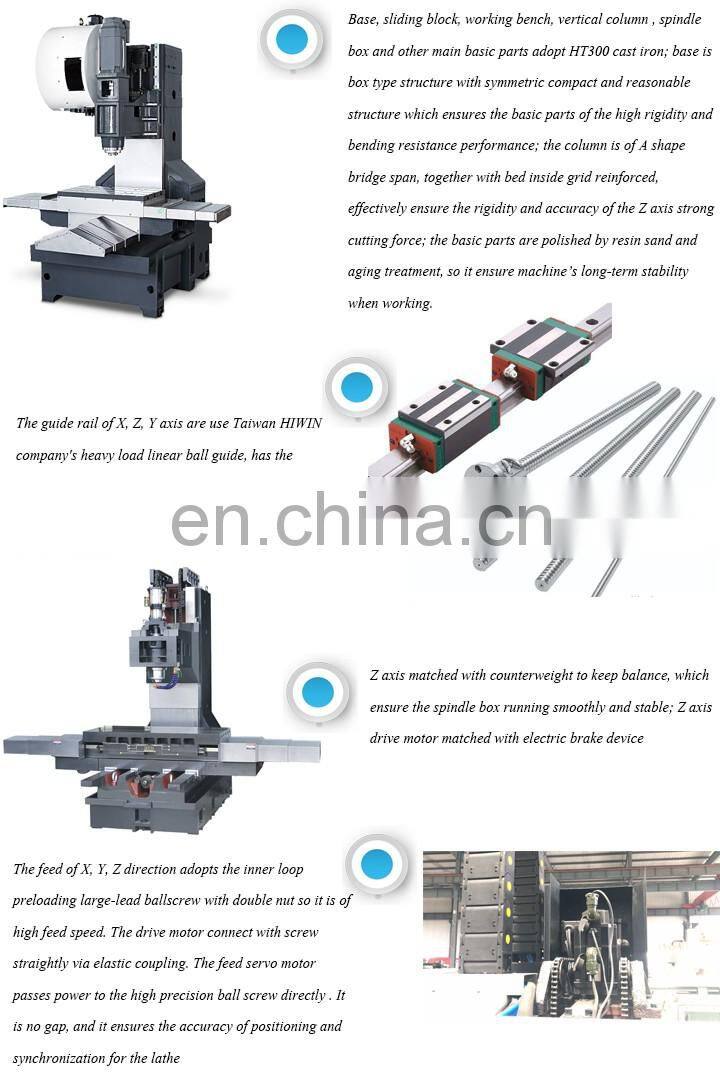

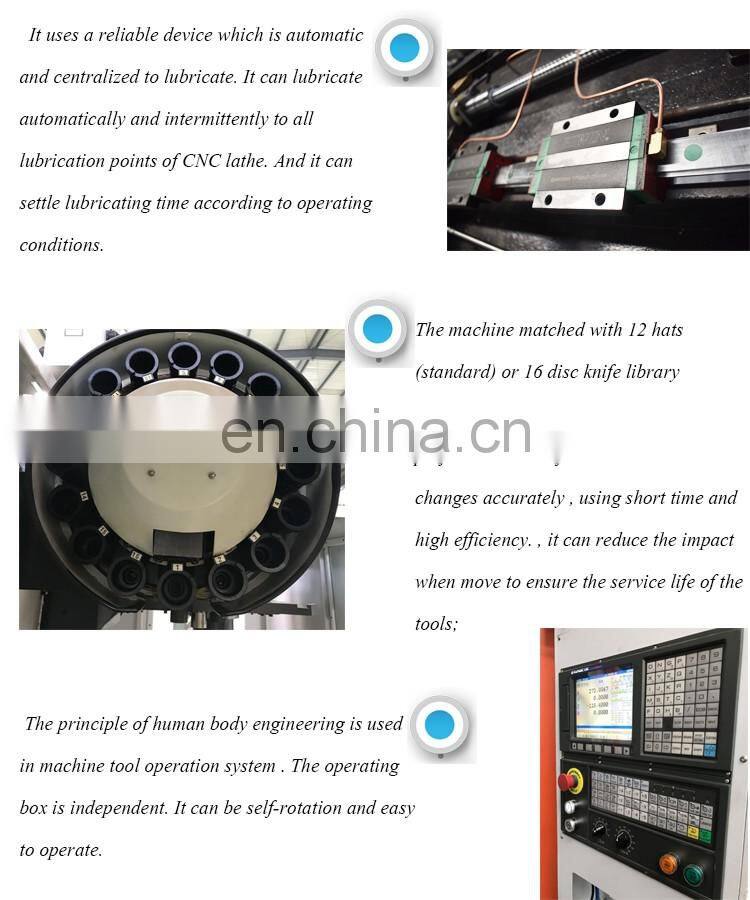

Main feature

Technical parameters

Item	unit	VMC850L	VMC1060L	VMC1160L
Table size	mm	1000*500	1200*600	1200*600
Load capacity	kg	400	800	800
T slot		5-18*90	5-18*90	5-18-100
X-axis travel	mm	800	1000	1100
Y-axis travel	mm	500	600	600
Z-axis travel	mm	500	600	600
Distance from Spindle center to table	mm	150-650	120-720	120-720
Distance from Spindle center to column slide way	mm	550	650	650
Tool shank		BT40	BT40	BT40
Spindle speed	rpm	8000	8000	8000
Spindle motor power	kw	7.5	11	11
Max. diameter of tool	mm	80/150	80/150	120
Max. length of tool	mm	250	300	300
Max. weight of tool	kg	8	8	8
X/Y -axis rapid moving speed	mm	48000	36000	36000
Z-axis rapid moving speed	mm	48000	36000	36000
feed rate	mm/min	1-10000	1-10000	1-10000
positioning accuracy	mm	0.008	0.01	±0.01
repeated positioning accuracy	mm	0.002/300	0.003	±0.005
Out dimension	m	2.62.22.55	32.52.9	3.2x2.5x3.2
Machine weight	Kg	5500	6500	6800

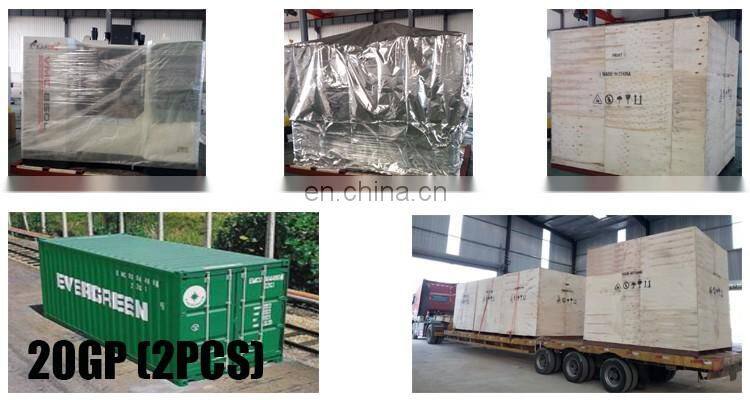

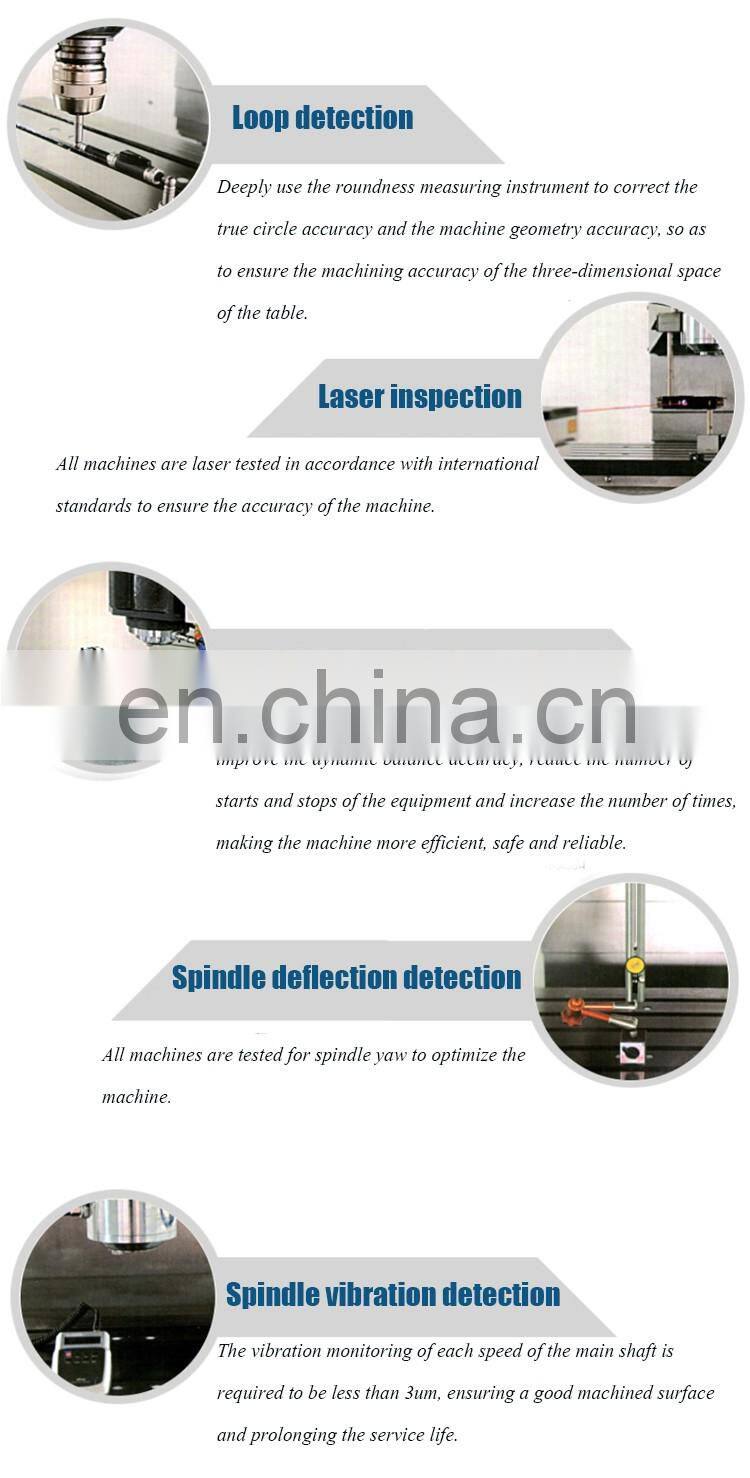

Test and Packaging

Packing:
