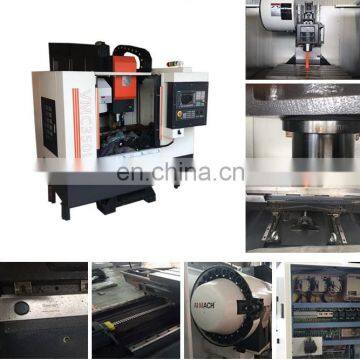

VMC350L Cnc Milling Metal Processing Machine Center
- Qingdao FOR VMC350L cnc milling metal processing machine center
- T/T Credit Card
You May Like
-
VMC460L Chinese Cnc China Bed Type Drilling Milling Machine Center
-
VMC600L Vertical Milling Turning Machine Center Price For Metal
-
VMC1580 Turning Spindle Cnc Milling Machine Turning Frame
-
VMC420L Professional Supplier Cnc Milling Metal Machine Center
-
VMC850L High Speed Metal Vertical Milling Machine Center
-
VMC350L Aluminum Curtain Wall Vertical Cnc Machine Center
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Type | Vertical | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 Months | |
| Weight | 1200kg | Dimension(L*W*H) | 1.52*1.3*1.8m | |
| Voltage | Customer's Requirement | Condition | New | |
| Power(W) | 2.2/3.7KW |
Product Description

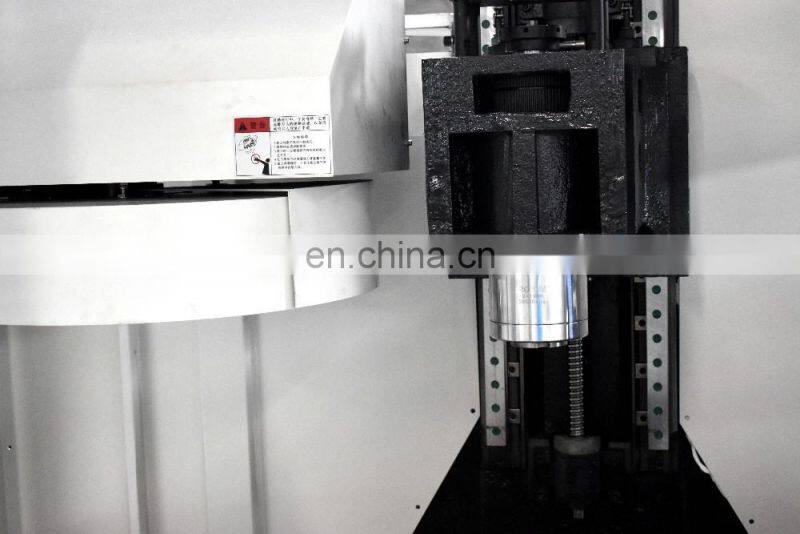

It is of semi closed loop vertical machining center with X, Y, Z axis controlled by servo motor directly. The three axis are all the steel ball rolling linear guide rail which is large load capacity, wide span and high precision. XYZ axis is 35mm overloading and compact and reasonable structure and dimensions. Spindle is driven by servo motor through synchronous belt. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finishe the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.
Product-related Data
Item | unit | VMC350L |
Table size | mm | 690×230 |
Load capacity | kg | 150 |
T slot |
| 3-16-63 |
X-axis travel | mm | 350 |
Y-axis travel | mm | 260 |
Z-axis travel | mm | 350 |
Distance from Spindle center to table | mm | 90-440 |
Distance from Spindle center to column slide way | mm | 294 |
Tool shank |
| BT30 |
Spindle speed | rpm | 10000 |
Spindle motor power | kw | 2.2/3.7 |
Max. diameter of tool | mm | Φ30/φ80 |
Max. length of tool | mm | 120 |
Max. weight of tool | kg | 3 |
X/Y -axis rapid moving speed | mm | 20000 |
Z-axis rapid moving speed | mm | 20000 |
Feed rate | mm/min | 1-4000 |
Positioning accuracy | mm | 0.02 |
Repeated positioning accuracy | mm | 0.01/300 |
Out dimension | mm | 1520×1300×1800 |
Machine weight | Kg | 1200 |
Transport Information
Packaging Information

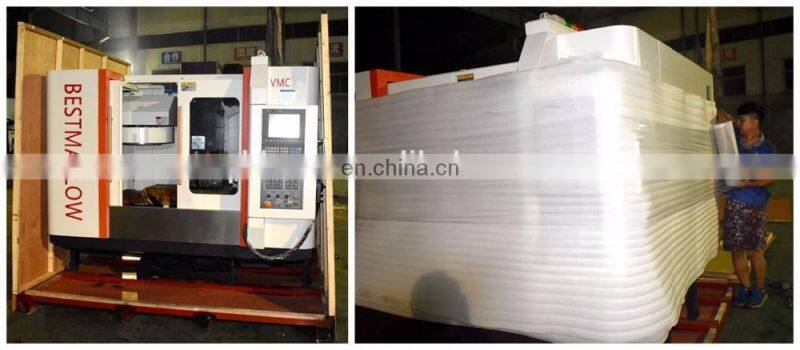

Packaging Detail: High quality wooden case.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
1. custiomer service: Any question or inquiry, we will reply first thing within 8 hours.
Shandong Hunk precision machinery Co., Ltd. is a CNC machine tools company, located in the beautiful capitcal Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
Factory Information
Certificate Information
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Why choose us?
1. faithful: Honest is the key to communication.
2. High quality : 20 years rich experienced assembly skills,
Main parts imported from Japan, Germany, Taiwan etc.
3. Service: Customer first
4. Timely : Reply your inquiry within 8 hours
Delivery machines within agreement time.
5. Price: win-win price.
