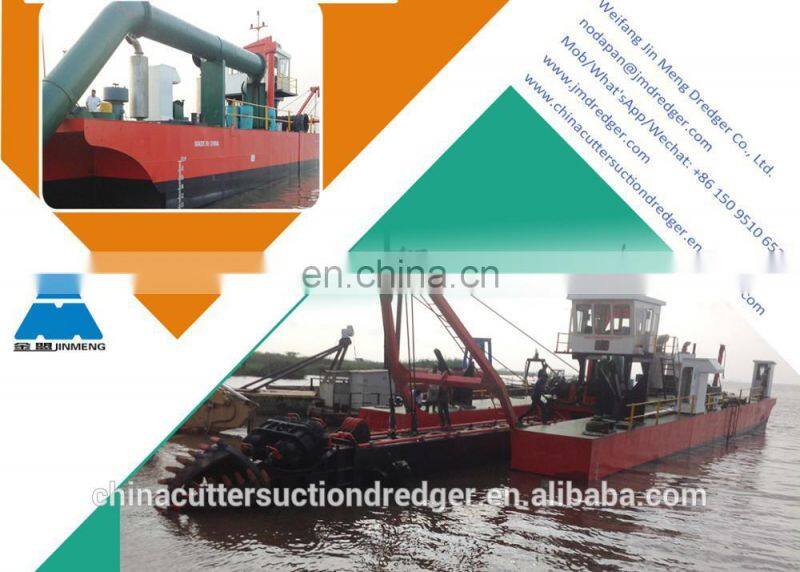

China 20 Inch Hydraulic Cutter Suction Dredger Machine for Sale

FOB Price

US$ 700,000 - 1,000,000 / Set

1 Set(Min. Order)

Port Tianjin Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jin Meng Dredger	Place of Origin	Shandong, China
Model Number	JMD500	Type	Cutter Suction Dredger
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 Year	Weight	180T
Dimension(LWH)	39x8.5x2m	Power Type	Diesel
Condition	New	Draught	150 cm
Dredging Depth	12 m

Product Description

1. Hydraulic cutter head suction dredger tested in the working place with technical specifications

Water flow	6,000m3/h
Maximum capacity	1,800cbm/h
Discharge distance	2,000m
Dredging depth	12m
Main Engine	1,740KW	Deutz Engine
Hydraulic Auxiliary Engine	450KW	Deutz Engine
Emergency Generator	30KW	Deutz Engine
Total Power	2,190KW
Oil Consumption	380L/H
Hull Dimension	LOAWD	45mx8.5mx2.5m

2. Cutter head suction dredger production in the workshop

The design, construction, quality inspection is according to the standards and regulations of CCS.

The steel plates are CCSB plates which meet the requirements of CCS.
The welders are skillful and experienced and certified under the regulations of CCS.
Anti-corrosion paints material are marine use under the requirements of CCS.
  ------The diesel Engine brand is Cummins or DEUTZ engine accordingly;
  ------The pump brand is Kingda which technology is from Australia Warman;
  ------The gearbox is China famous brand Hangzhou Advance Gearbox;

3. Diesel engine/Deutz engine on the cutter head suction dredger

NO.	Main Diesel engine	Speficifications
1	Power	920KW to 1240KW
2	Model	TVBX
3	Speed	1,800r/min
4	No. of cylinders	12 pcs

4. Plate thickness on main pontoon and side pontoons

Main pontoon and side pontoon		Thickness
Steel plate on deck		10mm
Steel plate on bottom		10mm
Steel plate on side		10mm
Steel plate on front		20mm
Steel plate on back		16mm

5. Dredging pump on the cutter head suction dredger

Dredging pump	Speficifications	Remark
Manufacturer	Kinda Shijiazhuang
Water flow	3,500m3/h
Slurry concentration	20-30%
Maximum capacity	1,050cubic meter/h
Discharge distance	1,500m
Diameter impeller	1,270mm

6. Hydraulic winch of swing winch and bridge winch

NO.	Bridge winch and swing winch	Speficifications
1	Diameter drum	457mm
2	Wire rope speed	0-30m/min
3	Working pressure	16Mpa
4	Dia.wire rope	24mm
5	Length wire rope	130m
6	Force	100KN
7	Quantity	1 set
