Home > Products > Sand dredger > 1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale

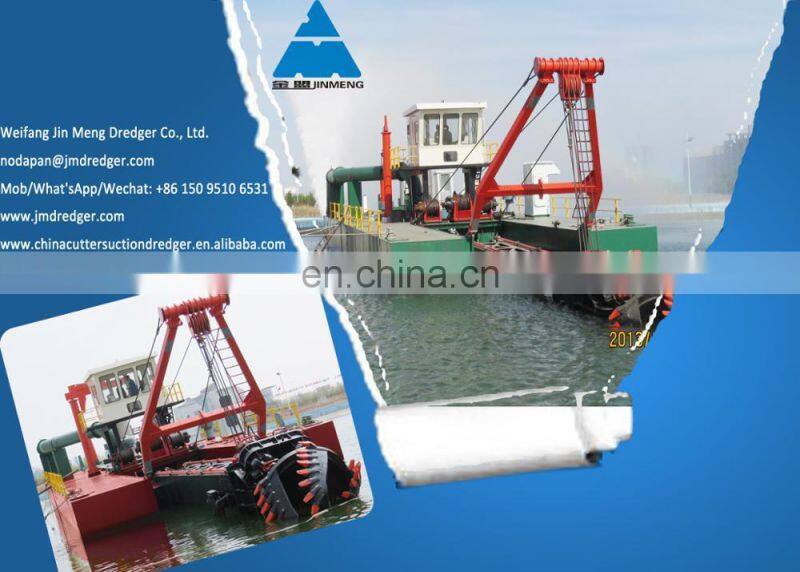

1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale
US$ 800,000 - 1,000,000
/ Set
1 Set(Min. Order)
- Tianjin Port
- T/T Credit Card
You May Like
-
22 Inch Hydraulic Cutter Suction Sand Mining Dredger for Sand Dredging With Cutter Head for Sale
-
JMD500 20 Inch China Hydraulic Cutter Suction Sand Pump Dredger Vessel for Sale
-
20 Inch Hydraulic Cutter Suction Dredger Boat Vessel for Soil Dredging in River and Sea for Sale
-
JMD500 20 Inch Hydraulic Cutter Suction Sand Dredging Ship Machinery With Spud Carriage for Sale
-
JMD600 26 Inch Hydraulic Cutter Suction Sand Dredger Machine and Equipment for Dredging Sea Sand Dredging
-
NEW 18 Inch Hydraulic Cutter Suction Dredger Equipment for Sand Dredging for Sale
Product Details
| Brand Name | Jin Meng Dredger | Place of Origin | Shandong, China | |
| Model Number | JMD500 | |||
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 180T | |
| Dimension(L*W*H) | 41x8.5x2m | Power Type | Diesel | |
| Condition | New | Draught | 150 cm | |
| Dredging Depth | 12 m |
Product Description
| 1. JMD500 1,000 cbm/h Hydraulic cutter suction dredging vessel for sand dredging machine for sale |
| Item | Speficifications | Remark | |||||
| LOA | 41m | ||||||
| Dredger assembly | 35*7.5*2.0m | Length* width* depth | |||||
| Engine room pontoon | 15.4*3.5*2.0m | Length* width* depth 1 pc | |||||
| Side pontoon | 27*2.0*2.0m | Length* width* depth 2 pcs | |||||
| Structure | Can be dismantle and assemble at working site | ||||||
| Item cutter suction dredging vessel | Speficifications | ||||
| Water flow | 3,500m3/h | ||||
| Max. capacity | 1050 cbm/h | ||||
| Slurry concentration | 30% | ||||
| Discharge distance | 1,500m | ||||
| 45° dredging depth | 12m | ||||
| Draft | 1.7m | ||||
| Full load displacement | 310T | ||||
| Dredger weight | 172T | ||||
| Spud carriage weight | 15T | ||||

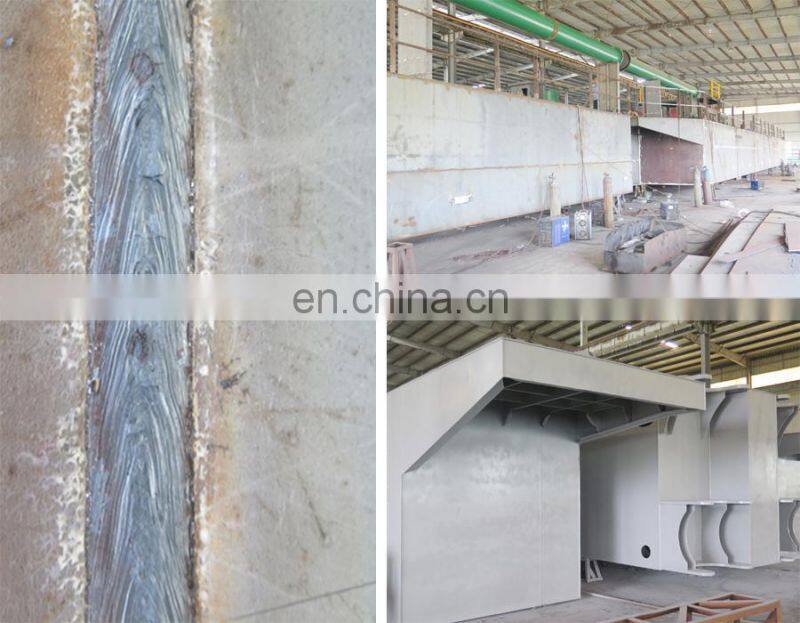

2. Production for main pontoon and side pontoons Custom building according to environment of working place |

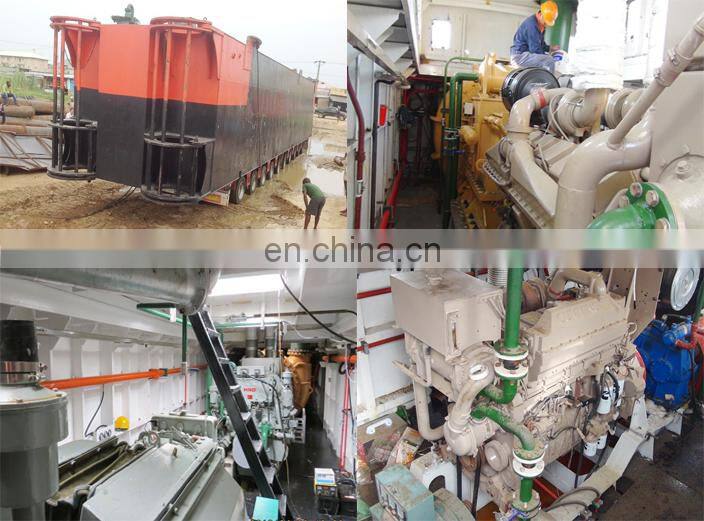

| 3. Technical specifications for main engine and auxiliary engine on dredger |
| NO. | Main Diesel engine | Speficifications | ||||
| 1 | Power | 895KW | ||||
| 2 | Model | KTA38-M2 | ||||
| 3 | Speed | 1,800r/min | ||||
| NO. | Auxiliary engine | Speficifications | ||||
| 1 | Power | 298KW | ||||
| 2 | Model | NT855-M | ||||
| 3 | Speed | 1,800r/min | ||||
| 4. Technical Specifications for spud carriage to increase capacity |
| NO. | Spud carriage | Technical Speficifications | ||||
| 1 | Length | 7m | ||||
| 2 | Width | 5m | ||||
| 3 | Height | 2.0m | ||||
| 4 | Diameter cylinder | 120mm | ||||
| 5 | Travel | 4m | ||||

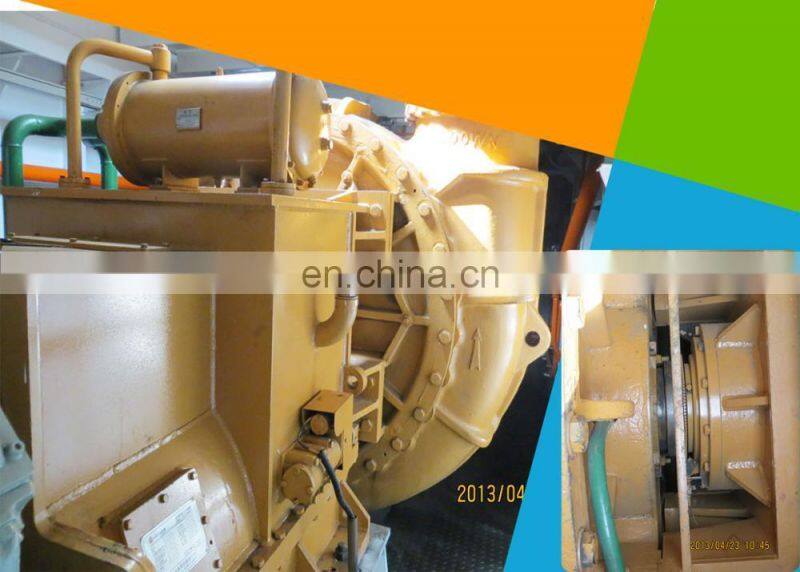

| 5. Technical Specifications for dredging pump |
| NO. | Dredging pump | Speficifications | ||||
| 1 | Manufacturer | Kinda Shijiazhuang | ||||
| 2 | Water flow | 3,500m3/h | ||||
| 3 | Slurry concentration | 20-30% | ||||
| 4 | Maximum capacity | 1,050cubic meter/h | ||||
| 5 | Discharge distance | 1,500m | ||||
| 8 | Diameter impeller | 1,270mm | ||||
| 9 | Blade quantity | 5 blades | ||||
| 10 | Material | Cr27 | ||||
| 6. Images for hydraulic system |
| 7. Images for hydraulic winch |

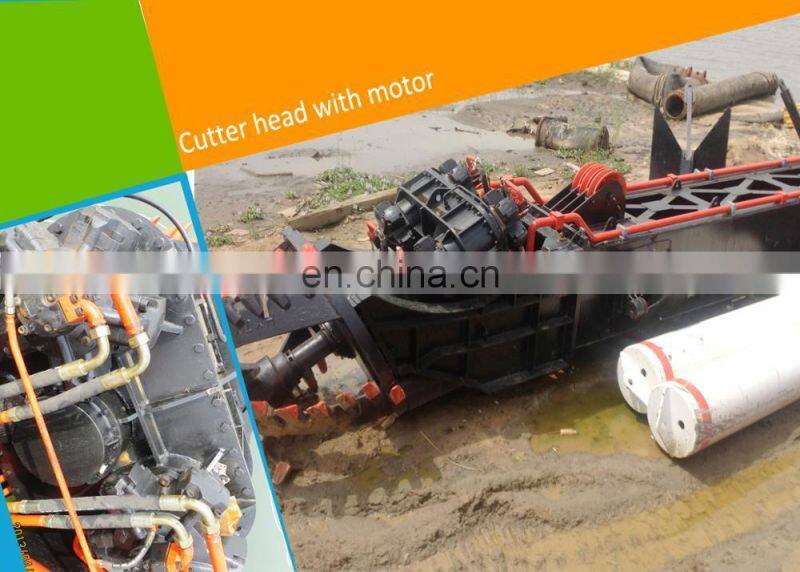

| 8. Images for cutter head |
| 9. Images for generator on dredger |
| 10. Images for Spud and General arrangement for dredger |
| 11. Deck on crane for your references |
