Price of 20 Inch Cutter Suction Sand Dredger Machine With Standard Accessories From China for Dredging River and Sea
US$ 600,000 - 1,000,000
/ Set
1 Set(Min. Order)
- Tianjin Port China
- T/T Credit Card
You May Like
-
10inch/14inch/18inch/20inch/22inch/26inch Hydraulic Cutter Suction Dredger for Sand Dredging/dredging Equipment and Machinery
-
JMD500 1,050 Cm/h China Small Mini River Gold Suction Sand Dredging Boat for Sale
-
JMD500 20" Non Self-propelled Hydraulic River Sand Dredger Cutter Suction Dredger for Sale
-
JMD500 20 Inch Self-propelled NEW Cutter Suction Sand Dredger Ship for Sale
-
Qingzhou Dredge Equipment With Dredger Vessel Sand Mining Dredger for Sale
-
NEW Hydraulic Sand Mining Dredge Equipment for Sea Sand Dredging for Sale
Product Details
| Brand Name | Jin Meng Dredger | Place of Origin | Shandong, China | |
| Model Number | JMD550 | Type | Cutter Suction Dredger | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 180T | |
| Dimension(L*W*H) | Customized | Power Type | Diesel | |
| Condition | New | Draught | 150 cm | |
| Dredging Depth | 14 m |
Product Description

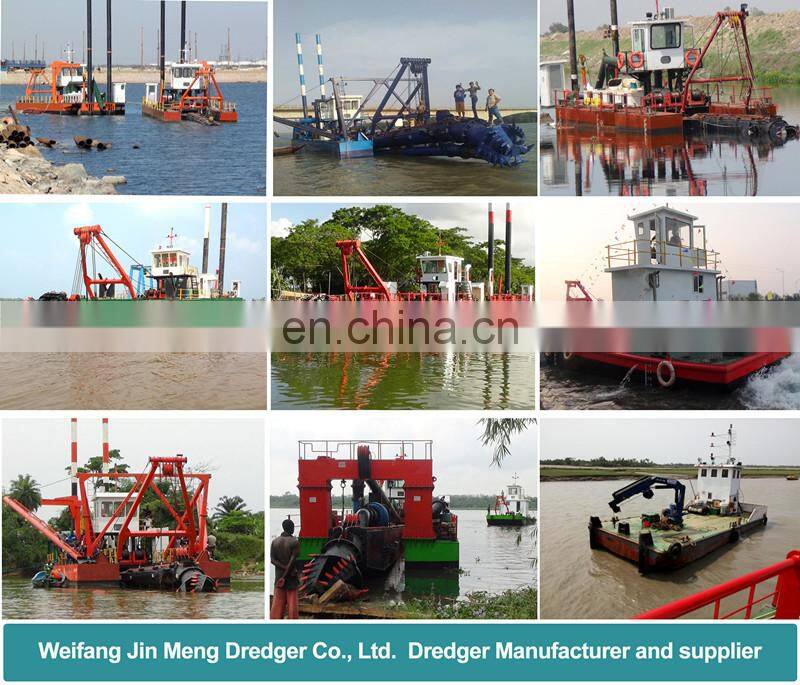

| 1. Jin Meng Dredger Pictures and technical specificationsfor 10inch/14inch/18inch/20inch/22inch/26inch hydraulic cutter suction dredger for sand dredging/dredging equipment and machinery |
Model | Pipe dia. | Working capacity | Dredging depth | Discharge distance | Total Power | |
JMD250 | 250mm | 165 cbm/h | 6m | 800m | 187kw | |
JMD450 | 450mm | 600 cbm/h | 12m | 1,200m | 925kw | |
JMD500 | 500mm | 900 cbm/h | 14m | 1,500m | 1,193kw | |
JMD550 | 550mm | 1,050 cbm/h | 14m | 1,500m | 1,491kw | |
JMD650 | 650mm | 1,500 cbm/h | 15m | 2,000m | 2,230kw | |
JMD700 | 700mm | 2,100 cbm/h | 17m | 2,000m | 3,250kw | |
JMD550D | 550mm | 1,050 cbm/h | 22m | 2,000m | 1,517kw | |
JMD650D | 660mm | 1,500 cbm/h | 20m | 2,000m | 2,710kw |
| 2. Detailed technical specifications for JMD550 22 inch cutter suction dredger |
| General information for JMD550 22inch cutter suction dredger | ||
| Item | Specifications | Remarks |
| Water flow | 3,500-4,000m3/h | |
| Max. capacity | 700-1,050cbm/h | |
| Slurry concentration | 20-30% | |
| Discharge distance | 1,500m | |
| Dredging depth | 14m | |
| Cutter ladder length | 19.6m | |
| Min.dredging depth | 1.5m | Minimum depth |
| Maximum dredging width | 50m | 35°swing each side |
| Spud dia.&Weight | Φ508mm | 5tones/pc |
| Spud wall thickness | 22mm | |
| Average draught | 1.2m | |
| Volume | 800m3 | |
| Dredger weight | 220T | |
| Total installed power of dredger | 1,521kw/2,068HP | |
3. Engines for cutter suction dredger Cummins engine/Deutz engine/Cat engine is available per requirement |

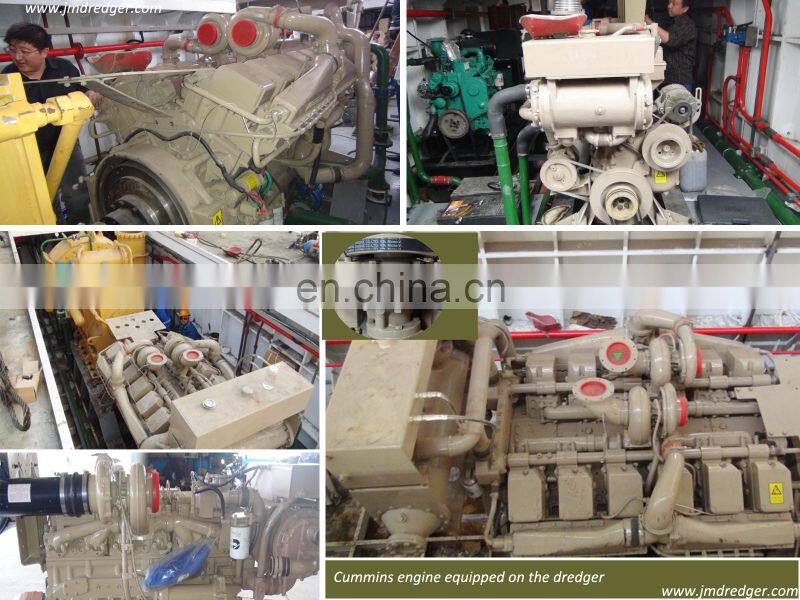

| 3.1 A Cummins engine on the dredger |

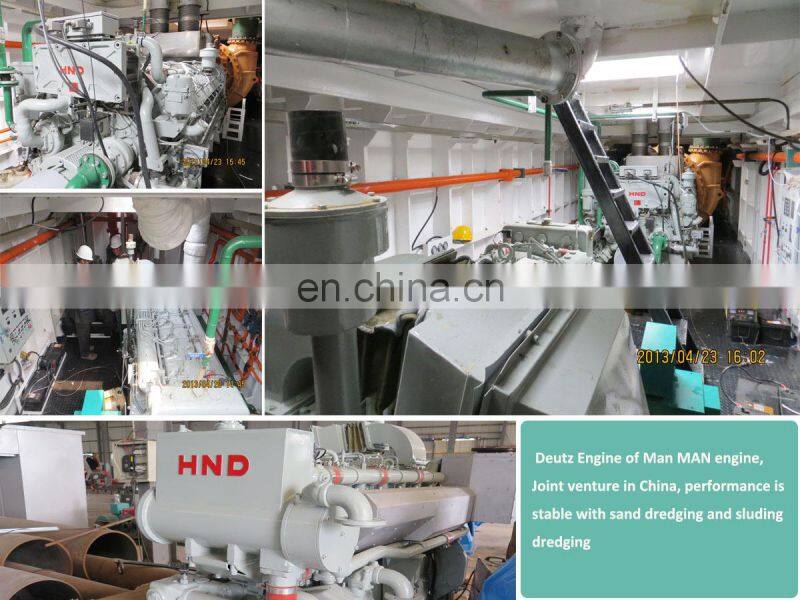

| 3.2 Deutz engine on the dredger |

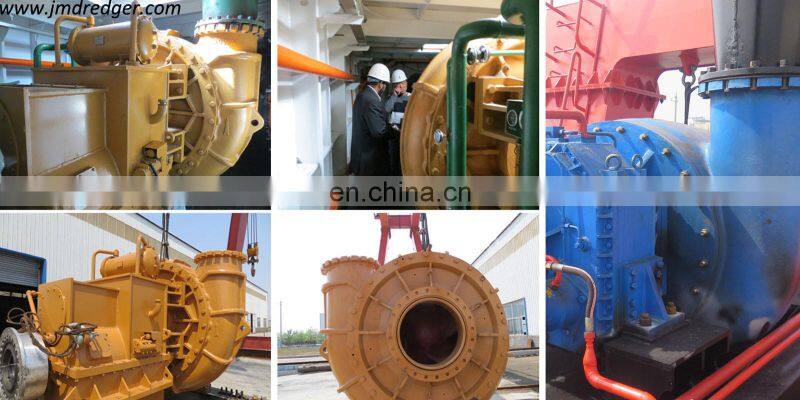

| 4. Dredging pump on the dredger |

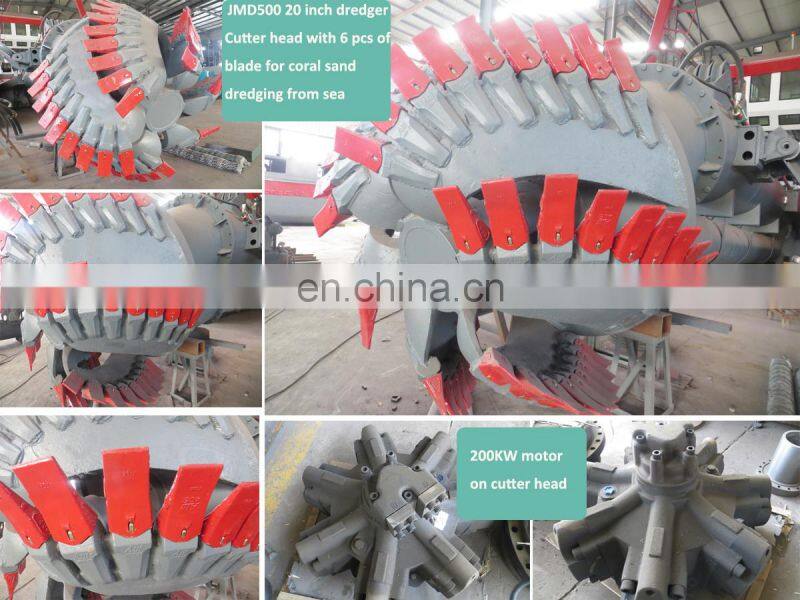

| 5. Cutter head on dredger |

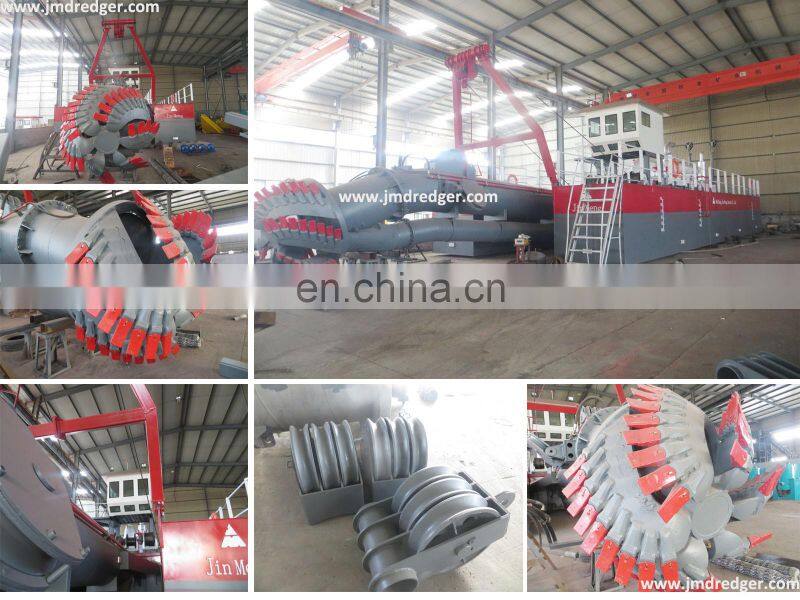

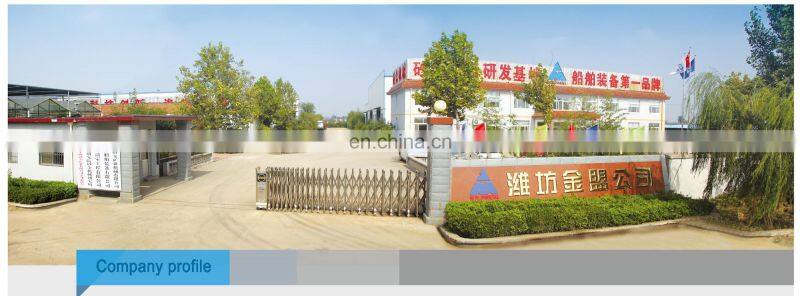

| 6. Company profile as manufacturer and factory for cutter suction dredger |

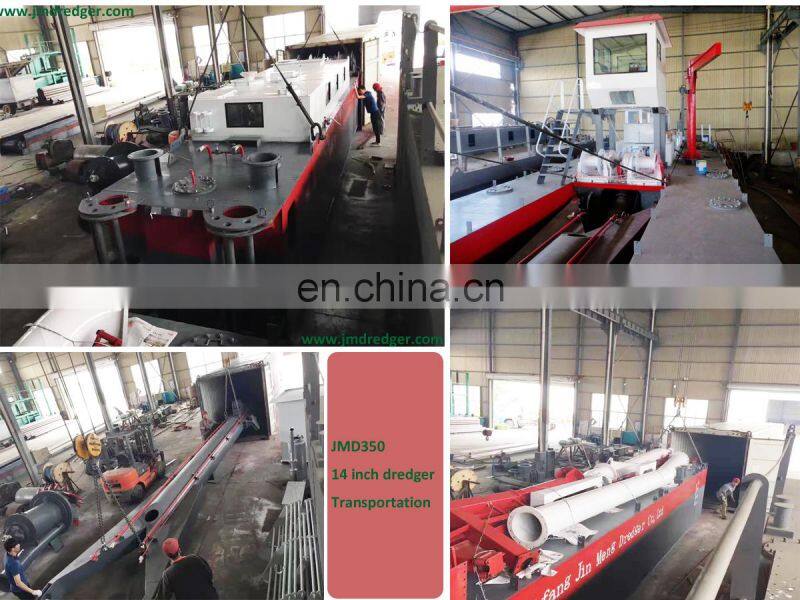

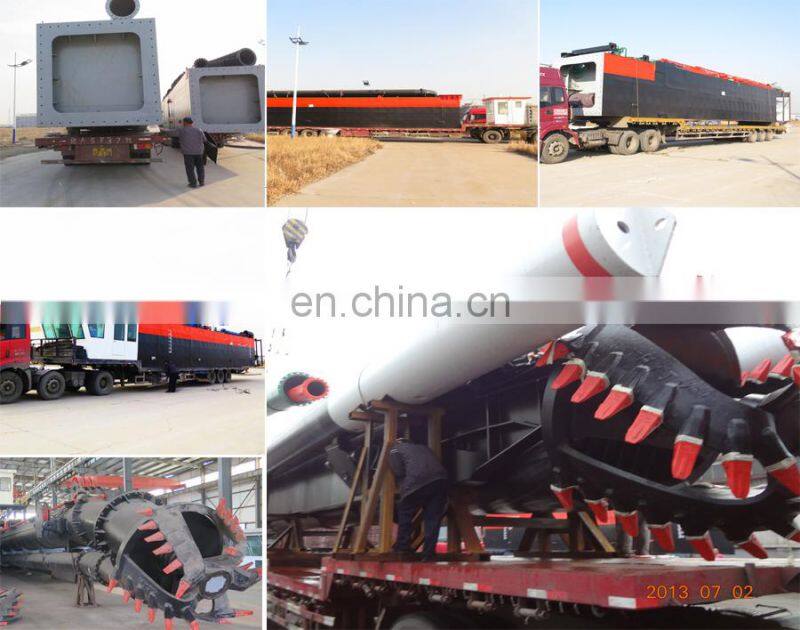

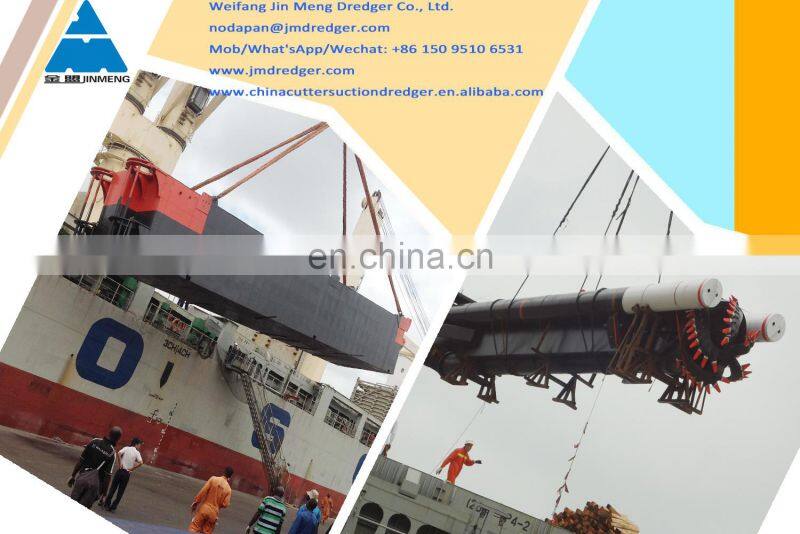

| 7. Dredger transportation in Bulk/Pieces by pieces |
| 8. Dredger transportation in container |
| 9. Work boat/tug boat for service the cutter suction dredger |

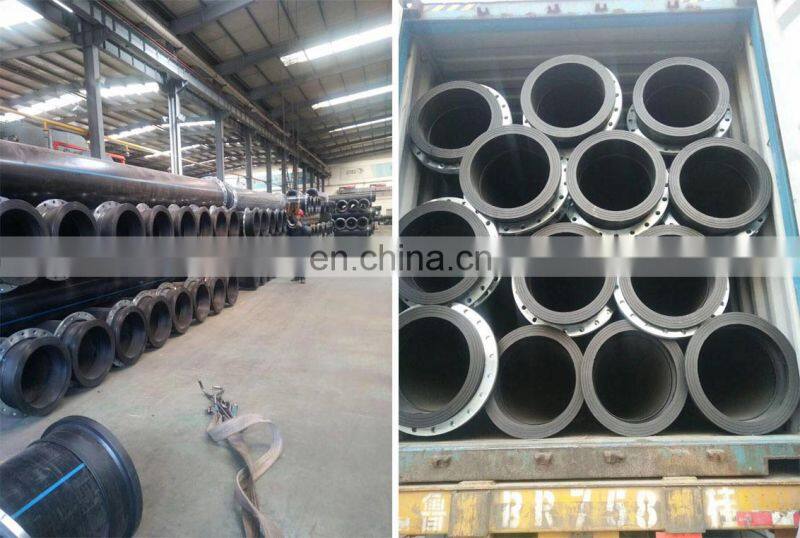

| 10. HDPE pipeline for cutter suction dredger |

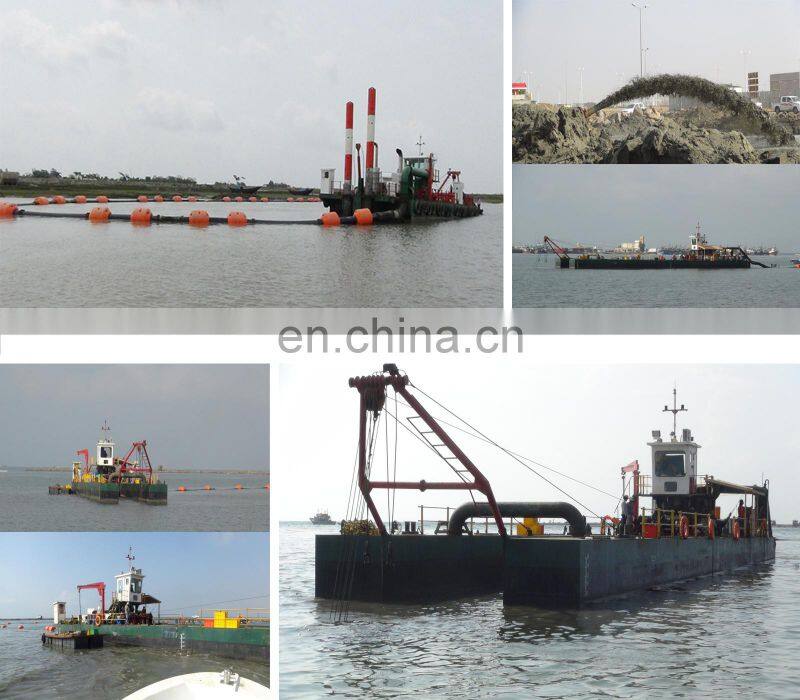

| 11. Floater for HDPE pipeline for cutter suction dredger |
12. JMD650 26 inch cutter suction dredger with double dredging pumps for dredging depth 22m underwater a. custom building according to working place and requirement; b. Delivery time is about 4 months; c. Working place visiting for performance checking is available; d. Any doubts, pls feel free to contact, Jin Meng Dredger is at your service for your dredging project |
Welcome to visit our factory NEW dredgers in stock; NEW work boat in stock. |
