14 Inch China Small River Sand Cutter Suction Dredger Vessel for Sale for Sand Dredging
US$ 200,000 - 400,000
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
26inch China Small Hydraulic Cutter Suction Dredger With Double Dredging Pumps Sale for Sand Dredging With Cutter Head
-
China Lower Price New Hydraulic Sand Pump Suction Dredger for Sale
-
18 Inch 600 Cbm/h China Mini River Sand Suction Dredger With Cutter Head for Soil Dredging for Sale
-
Hydraulic Cutter Head Suction Dredger From China for Soil Dredging for Sale From River or Sae
-
1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale
-
22 Inch Hydraulic Cutter Suction Sand Mining Dredger for Sand Dredging With Cutter Head for Sale
Product Details
| Brand Name | Jin Meng Dredger | Place of Origin | Shandong, China | |
| Model Number | JMD350 | Type | Cutter Suction Dredger | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 70T | |
| Dimension(L*W*H) | 23x5.8x1.8m | Power Type | Diesel | |
| Condition | New | Draught | 100 cm | |
| Dredging Depth | 8 m |
Product Description

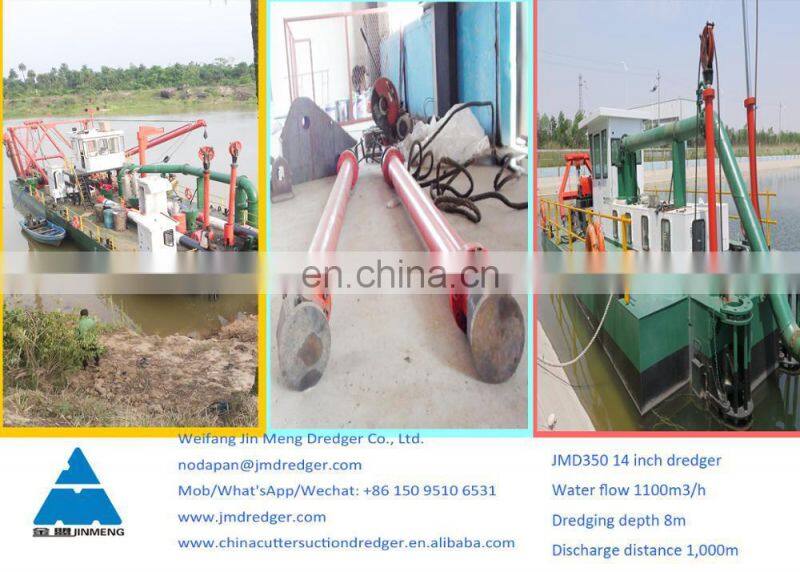

| 1. Technical specifications for small river sand cutter suction dredger vessel |
Dredging Pump | Dia. Discharge pipe | 350mm | |
Technical specifications for small cutter suction dredger vessel/can be custom building | |||
| Head | 35m | |
| Working capacity | 330cbm/h | |
| Discharge distance | 1000m | |
Dredging depth | 8m | ||
Main Engine | 351KW | Cummins Engine | |
Generator | 24KW | Cummins Engine | |
Total Power | 375KW | ||
Oil Consumption | 56L/H | ||
Hull Dimension | LOA*W*D | 23mx5.8mx1.8m | |
Hydraulic system | Hydraulic pump | VICKERS America Joint-venture | |
| Hydraulic motor | Italy SAI technology Joint-venture | |
| Valves | REXROTH Germany Joint-venture | |
| Operating system | SIEMENS PLC(Imported from Germany) | |
| Ladder winch | Tension | 40KN |
| Swing winch | Tension | 40KN |
| Cutter Head | Crown-like | Φ1300mm |
|
| Power | 60KW |
| 2. Customer factory visiting and negotiating for dredger |

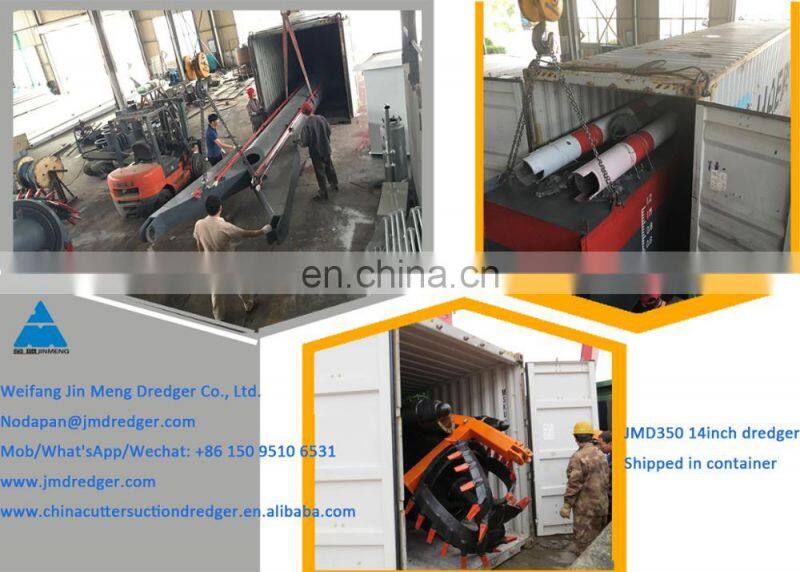

| 3. Small dredger transported in the container |

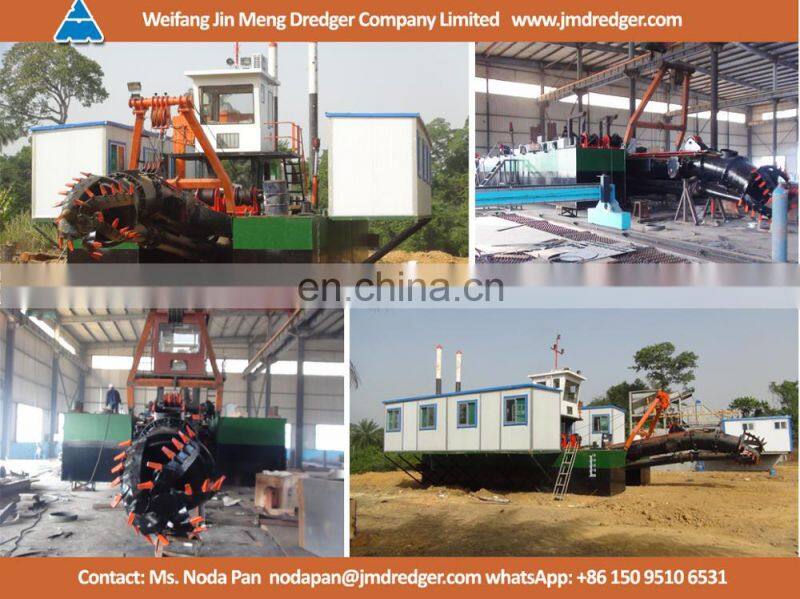

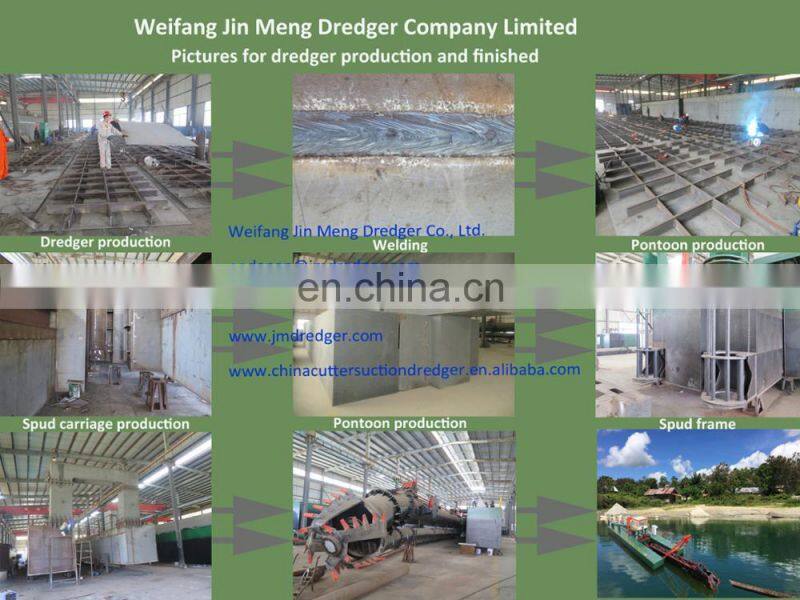

| 4. Dredger production in the workshop |
| 5. Engine on the dredger can be cummins engine or Deutz engine according to requirement |
| NO. | Main Diesel engine | Speficifications | ||||
| 1 | Power | 351KW | ||||
| 2 | Model | KTA19-M | ||||
| 3 | Speed | 1,800r/min | ||||
| 4 | No. of cylinders | 6 pcs | ||||
| 5 | Cooling System | Liquid cooling | ||||
| 6 | Auxiliary engine | NO | ||||
| 6. Dredging pump on the dredger |
| NO. | Dredging pump | Speficifications | Remark | ||||
| 1 | Manufacturer | Kinda Shijiazhuang | Custom building according to working place | ||||
| 2 | Water flow | 1,100m3/h | |||||
| 3 | Slurry concentration | 20-30% | |||||
| 4 | Maximum capacity | 220 cubic meter/h | |||||
| 5 | Discharge distance | 1,000m | |||||
| 8 | Diameter impeller | Per requirement | |||||
| 9 | Blade quantity | 5 blades | |||||
| 10 | Material | Cr27 | |||||
| 11 | Max. dia. Granule | 125mm | |||||
| 12 | Impeller using time | 10 months | |||||
| 13 | Dredging pump seal | Packing seal | |||||
| 14 | Technology | Warman Australia | |||||
| 7. Hydraulic winches/swing winch/bridge winch on the dredger |
| 8. Hydraulic cyclinder on the dredger |

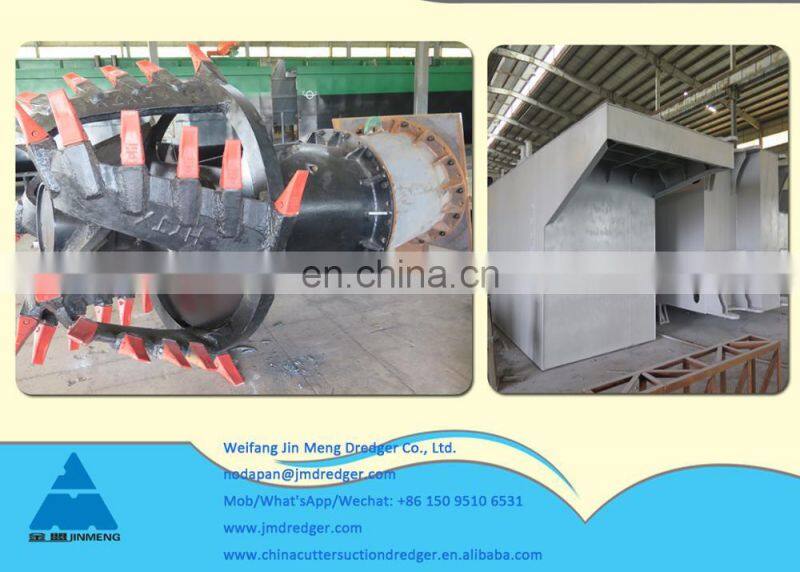

| 9. Hydraulic cutter head and pontoons for the dredger |

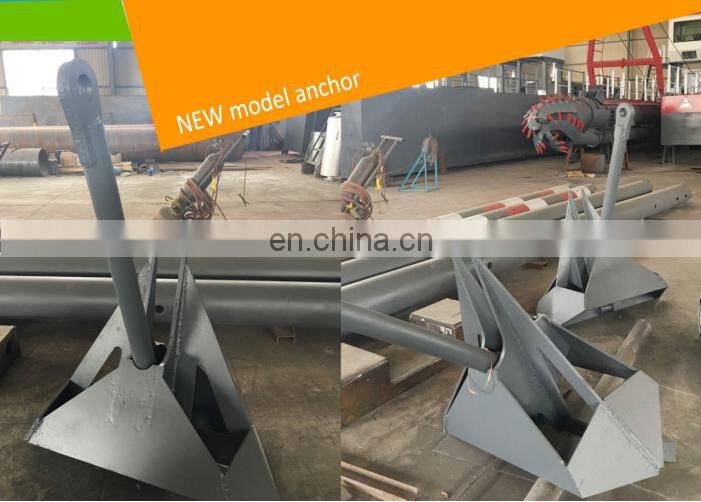

| 10. NEW designing anchor for the dredger |
| 11. JMD600 24 inch dredger can be csutom building according to requirement |
| 12. Jin Meng Dredger sold to different countries in the world |
| 13. Company profile as manufacturer for cutter suction dredger |
