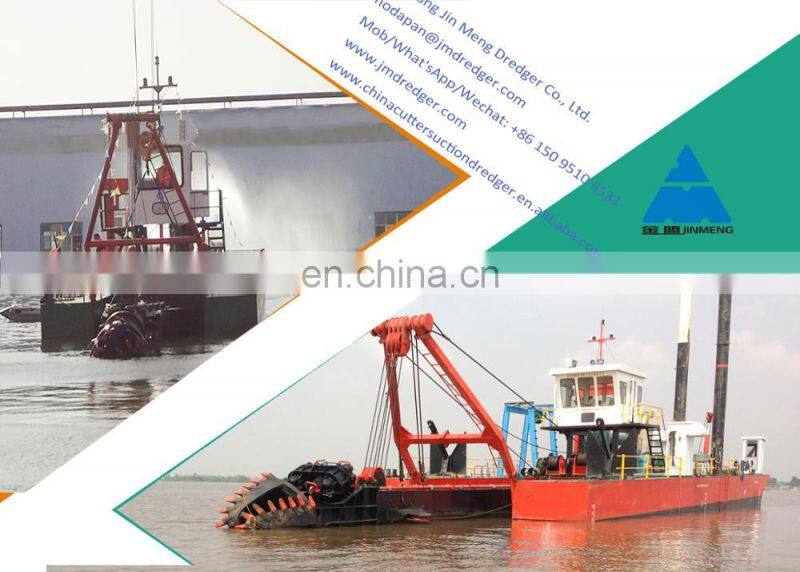

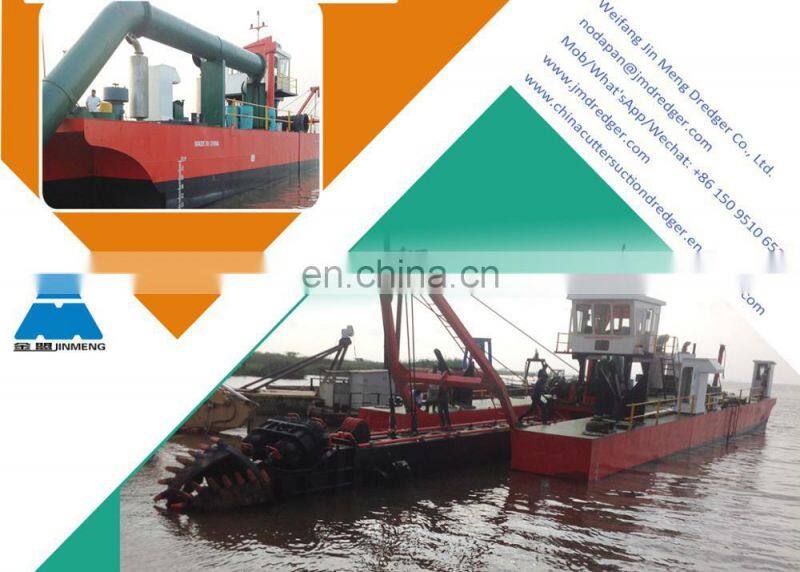

22 Inch Hydraulic Cutter Suction Sand Mining Dredger for Sand Dredging With Cutter Head for Sale

FOB Price

US$ 500,000 - 1,000,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jin Meng Dredger	Place of Origin	Shandong, China
Model Number	JMD500
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 Year	Weight	180T
Dimension(LWH)	41x7.5x2.0m	Power Type	Diesel
Condition	New	Draught	150 cm
Dredging Depth	12 m

1. Technical specifications for JMD500 22 inch NEW sand mining dredger for sand dredging from sea/river/port/lake

Item JMD500 22 inch cutter suction sand mining dredger	Speficifications		Remark
Water flow 3,500m3/h	3,500m3/h
Max. capacity	1050 cbm/h
Slurry concentration	30%
Discharge distance	1,500m
45° dredging depth	12m
Draft	1.7m
Full load displacement	310T
Dredger weight	172T
Spud carriage weight	15T
Total installed power of dredger		1,193kw/1,622HP

Item	Speficifications	Remark
LOA	41m
Dredger assembly	357.52.0m	Length* width* depth
Engine room pontoon	15.43.52.0m	Length* width* depth 1 pc
Side pontoon	272.02.0m	Length* width* depth 2 pcs
Structure	Can be dismantle and assemble at working site

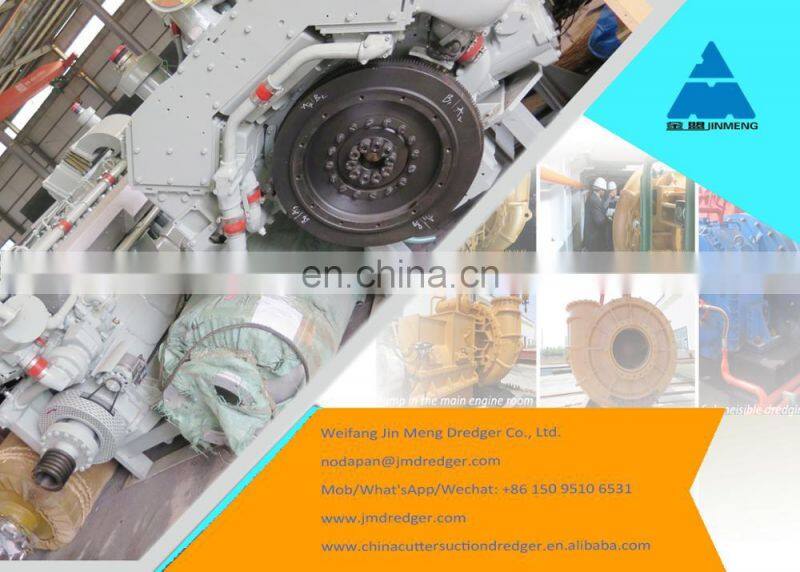

2. Engine can be Cummins engine or Deutz engine according to requirement

Total power		1,193KW				1,622HP
Diesel oil consumption		214L/h

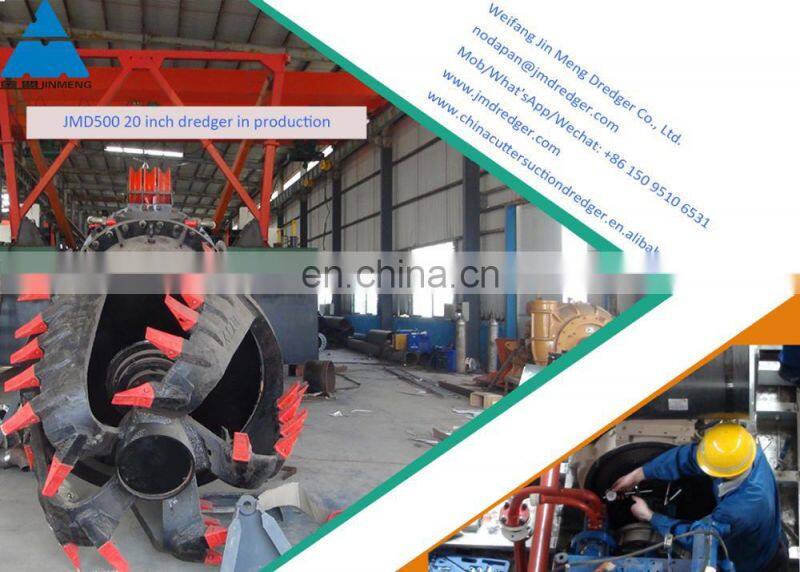

3. Sand mining dredger is produced and assembly in the workshop

4. Sand mining dredger is assembly and tested before shipment in the workshop

4. After sale service in the working place by skilled and experienced engineers

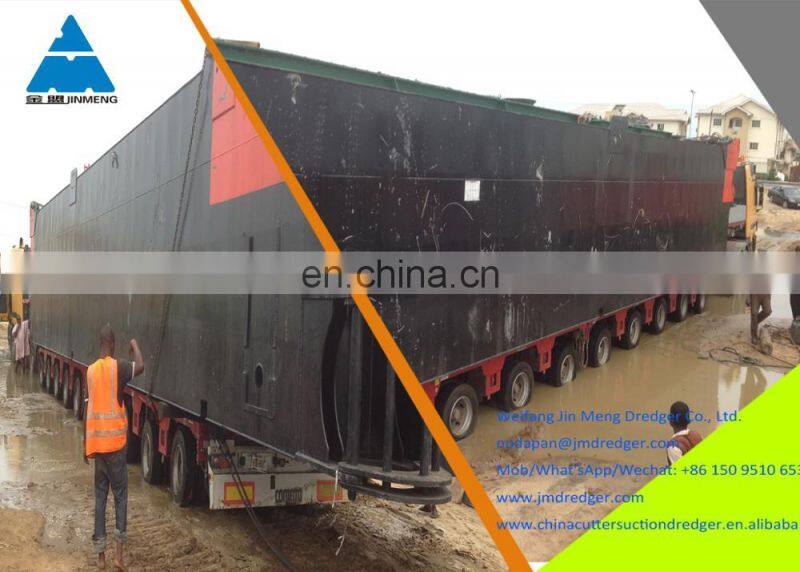

5. Transportation in the working place, the dredger is dismantle type piece by piece and assemly in the working place by crane and bulldozer

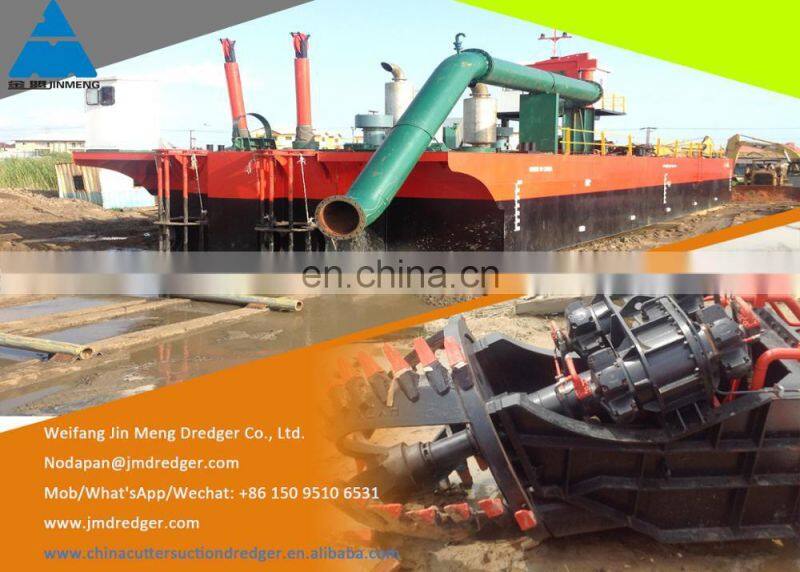

6. Sand mining dredger is pushed into water after assembly in the working place

8. Sand mining dredger is tested in the working place before working

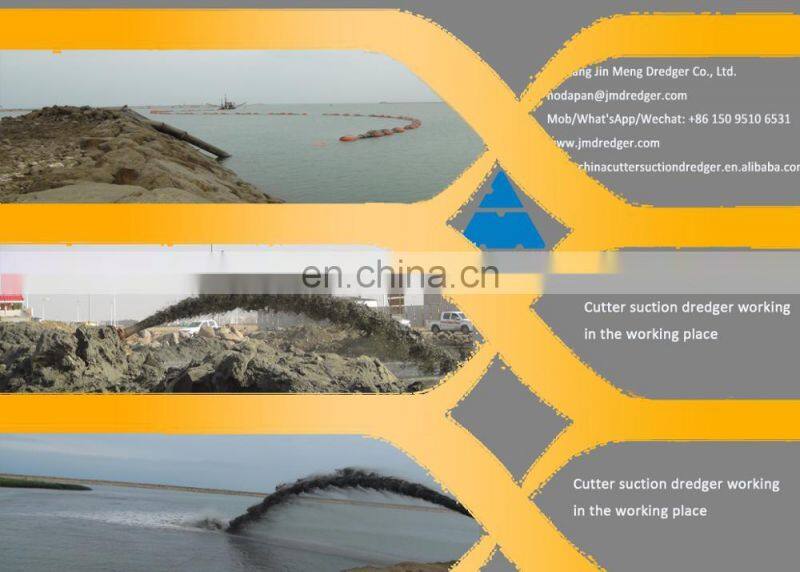

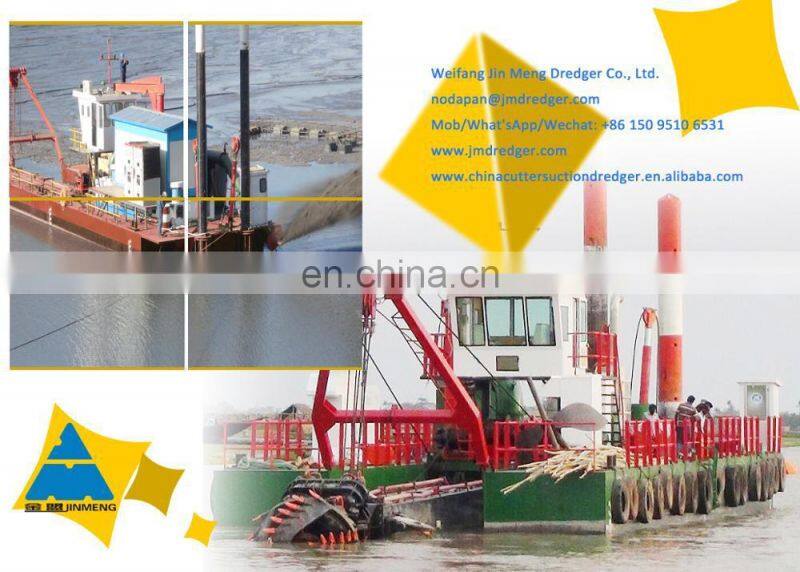

9. Sand mining dredger is working and sand is discharged

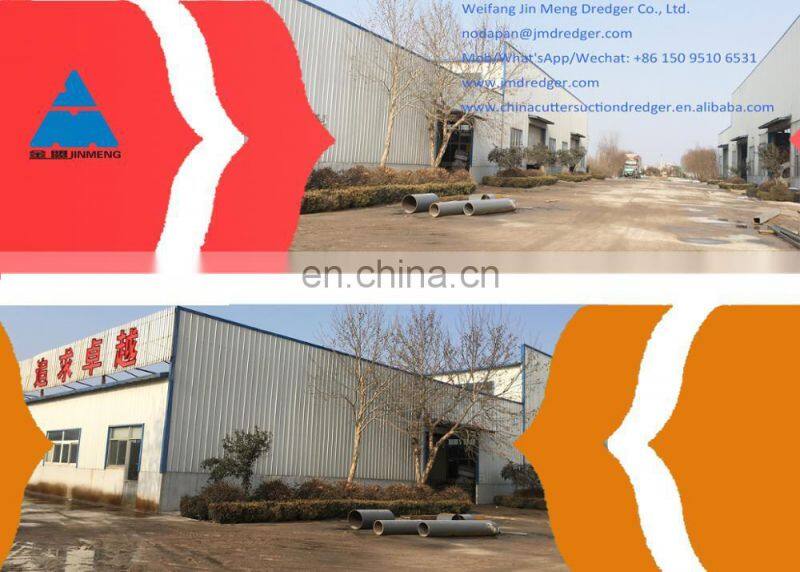

10. Company profile and workshop

11. Cutter suction dredger sold to different countries, can be custom building

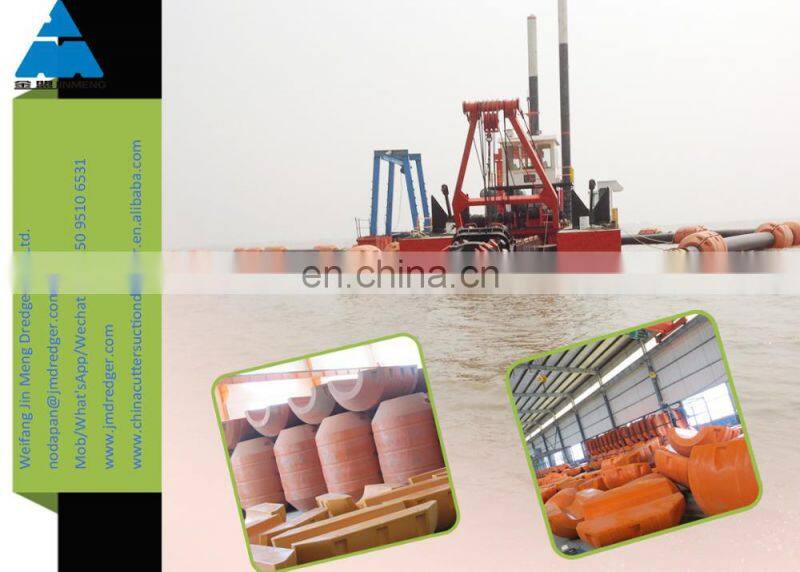

12. HDPE pipeline and floater for sand mining dredger
