Hydraulic Cutter Head Suction Dredger From China for Soil Dredging for Sale From River or Sae
US$ 600,000 - 800,000
/ Set
1 Set(Min. Order)
- Tianjin Port
- T/T Credit Card
You May Like
-
1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale
-
22 Inch Hydraulic Cutter Suction Sand Mining Dredger for Sand Dredging With Cutter Head for Sale
-
JMD500 20 Inch China Hydraulic Cutter Suction Sand Pump Dredger Vessel for Sale
-
20 Inch Hydraulic Cutter Suction Dredger Boat Vessel for Soil Dredging in River and Sea for Sale
-
JMD500 20 Inch Hydraulic Cutter Suction Sand Dredging Ship Machinery With Spud Carriage for Sale
-
JMD600 26 Inch Hydraulic Cutter Suction Sand Dredger Machine and Equipment for Dredging Sea Sand Dredging
Product Details
| Brand Name | Jin Meng Dredger | Place of Origin | Shandong, China | |
| Model Number | JMD500 | Type | Cutter Suction Dredger | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 180T | |
| Dimension(L*W*H) | 39x8.5x2m | Power Type | Diesel | |
| Condition | New | Draught | 150 cm | |
| Dredging Depth | 12 m |
Product Description

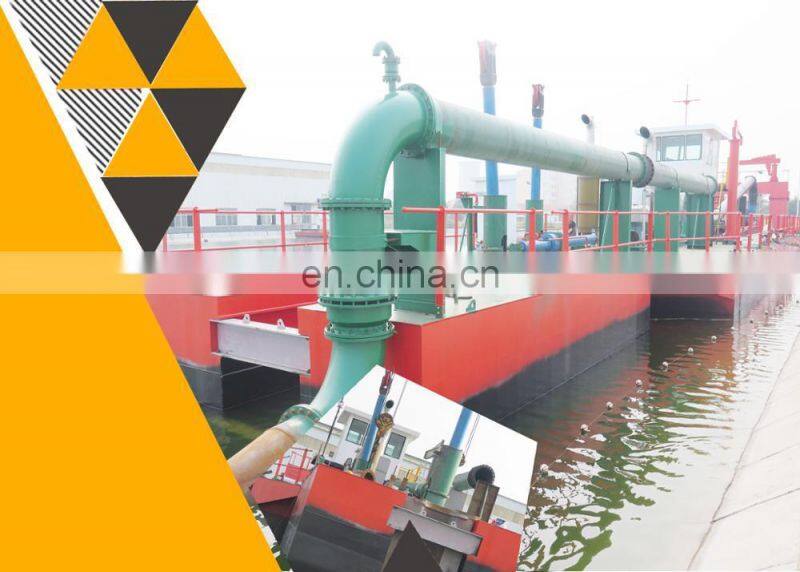

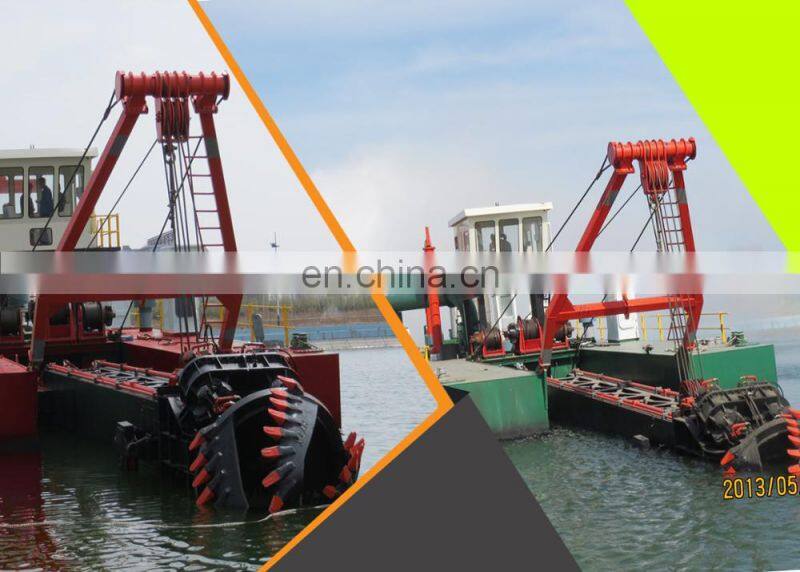

| 1. Hydraulic cutter head suction dredger tested in the working place with technical specifications |
Water flow | 3,500m3/h | |
Maximum capacity | 1,050cbm/h | |
Discharge distance | 1,500m | |
Dredging depth | 12m | |
Main Engine | 920KW | Deutz Engine |
Hydraulic Auxiliary Engine | 258KW | Deutz Engine |
Emergency Generator | 30KW | Deutz Engine |
Total Power | 1223KW |
|
Oil Consumption | 198L/H |
|
Hull Dimension | LOA*W*D | 36mx7.9mx2.2m |

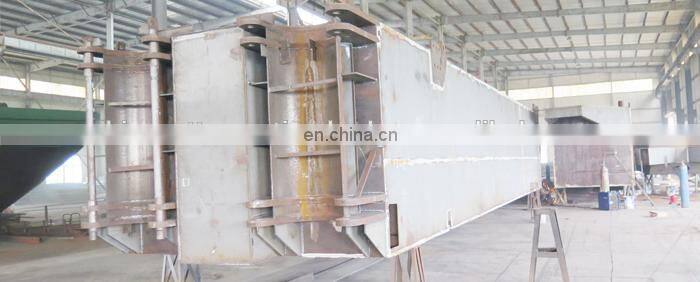

| 2. Cutter head suction dredger production in the workshop |
The design, construction, quality inspection is according to the standards and regulations of CCS. The steel plates are CCSB plates which meet the requirements of CCS. | |||||||

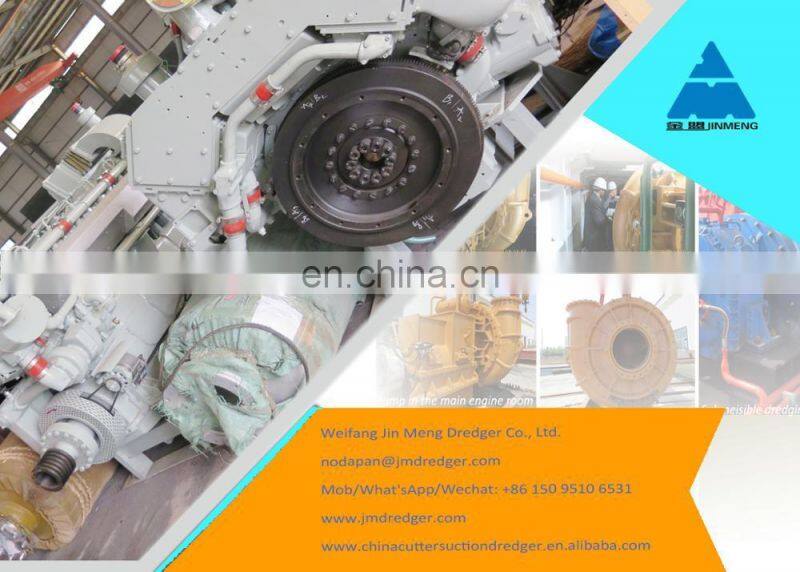

| 3. Diesel engine/Deutz engine on the cutter head suction dredger |
| NO. | Main Diesel engine | Speficifications | ||||
| 1 | Power | 920KW to 1240KW | ||||
| 2 | Model | TVBX | ||||
| 3 | Speed | 1,800r/min | ||||
| 4 | No. of cylinders | 12 pcs | ||||
| 4. Plate thickness on main pontoon and side pontoons |
| Main pontoon and side pontoon | Thickness | ||||
| Steel plate on deck | 10mm | ||||
| Steel plate on bottom | 10mm | ||||
| Steel plate on side | 10mm | ||||
| Steel plate on front | 20mm | ||||
| Steel plate on back | 16mm | ||||

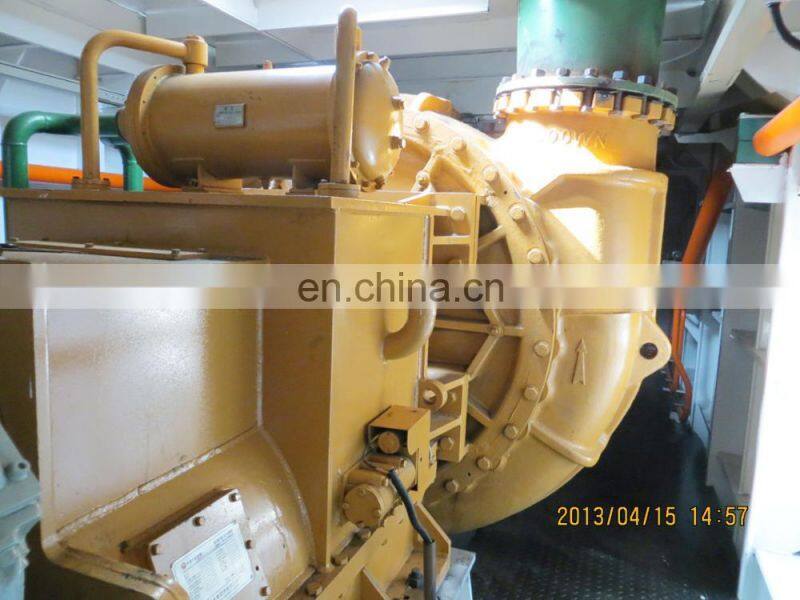

| 5. Dredging pump on the cutter head suction dredger |
| Dredging pump | Speficifications | Remark | |||||
| Manufacturer | Kinda Shijiazhuang | ||||||
| Water flow | 3,500m3/h | ||||||
| Slurry concentration | 20-30% | ||||||
| Maximum capacity | 1,050cubic meter/h | ||||||
| Discharge distance | 1,500m | ||||||
| Diameter impeller | 1,270mm | ||||||

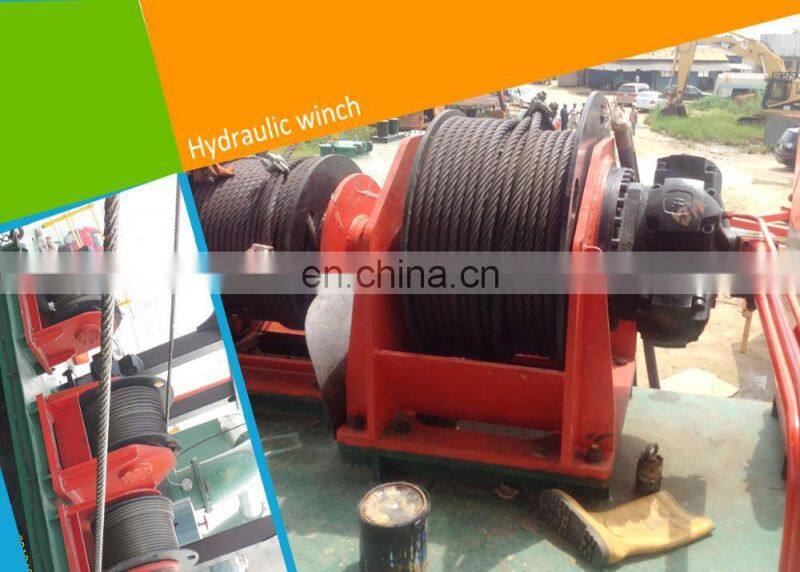

| 6. Hydraulic winch of swing winch and bridge winch |
| NO. | Bridge winch and swing winch | Speficifications | ||||
| 1 | Diameter drum | 457mm | ||||
| 2 | Wire rope speed | 0-30m/min | ||||
| 3 | Working pressure | 16Mpa | ||||
| 4 | Dia.wire rope | 24mm | ||||
| 5 | Length wire rope | 130m | ||||
| 6 | Force | 100KN | ||||
| 7 | Quantity | 1 set | ||||
| 7. Spud carriage to increase the working capacity |
| 8. Generator on the cutter head suction dredger |

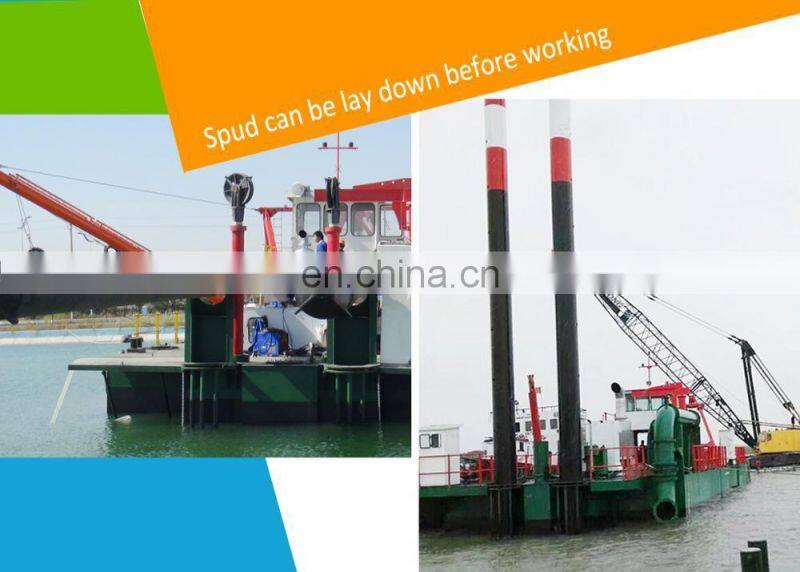

| 9. Spud carriage on the cutter head suction dredger |
| 10. After-sale service on the working place for installation and training operation |
