Arc Spray Equipment- Thermal Spray Machine

Product Description

Product Application

Supersonic arc spraying is a new technology developed from normal arc spraying technology. Compared with normal arc spraying ,it has more excellent performance, and recently has been applied widely in fields such as machinery, chemical, electricity generating, metallurgy and especially has excellent performance in solving the wearing and corrosion problems of boiler tube of electricity generating plant. Hence it brings safety and stable operation, low cost,more profit to those power generating plants.

MAIN PARAMETER FOR ARC SPRAY EQUIPMENT SX-600

Power Supply

Three-phase 380V, 50Hz

Rated Input Power

22KW

Input Current

22A

Output Volt

≤45V Flat Characteristic

Output Current

≤400A

Load Factor

60%

Volt Regulation Rank

9

Insulation Grade

E

Wire Diameter

2mm

Spray Effiency

Zn 34kg/h; Al 34kg/h; Alloy 36kg/h

Measurement

60*45*85cm

Net Weight

245kg

Main Features

1) It is suitable for the pull-type arc gun; however it can also be used in case of the push-type arc gun;

2) This power supply unit integrates the arc gun operating condition control, wire feeding speed control and air piping, and therefore it is ideal special equipment for arc spray coating.

3)  It is easy to control and operate. Synchronous control with the switch of the power supply unit at a distant end can be realized just by turning the switch on the arc gun.

Detailed Images

Machine Parts

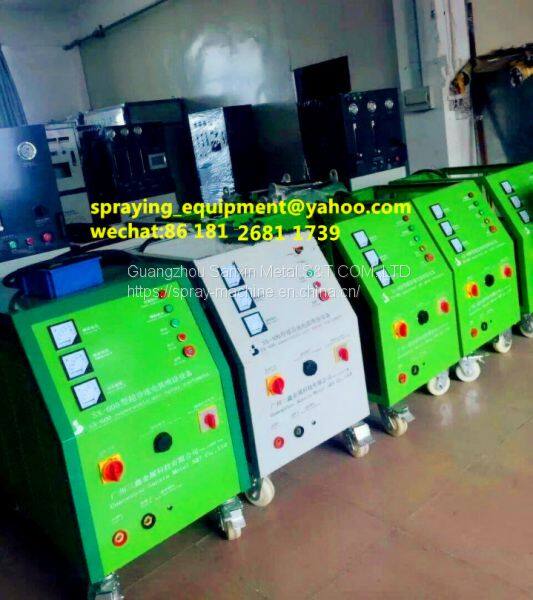

Name: Arc Spray Machine SX-600

Brand: Sanxin

Original: China

Advanced standard, charaterized by excellent performance, reliable quality, easy operation and reasonable price.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging

Size (mm)

1200(L) * 110 (W) * 700(D)

Weight(kg)

250

The normal package is wooden

If you are interested in it our machine ,please  contact me,I will offer you more details accordingly,thanks
