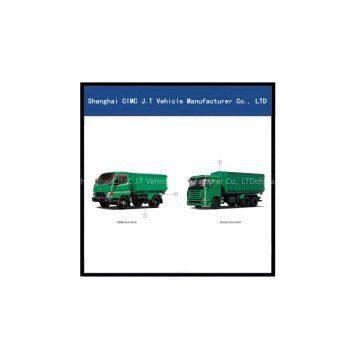

Hyundai Arm Roll Garbage Truck/Refuse Compactor Truck

HYUNDAI truck produced in China since end of 2014, the engine is HYUNDAI POWERTEC made in Korea, engine horse power is from 360hp to 520hp, engine displace from Euro III to Euro IV, transmission is HYUNDAI DYMOS  made in Korea 12 to 16 speeds, stable quality in the world.

New HYUNDAI garbage compactor truck model with most competitive price from China:

HYUNDAI BRAND 6X4 REFUSE TRUCK SPECIFICATION LIST

Cabin: Flat roof, Luxury , 2 seats+1 bed

Wheelbase: 4350+1350MM & 4700+1350MM &  5700+1350MM

Cargo Body Volume:12-25 cubic meter for option

Total 2 Key Engine model for choice:

1. HYUNDAI POWERTEC D6CF36E4,360PS(265 KW),Euro IV emission,torque 1600 N.m,displacement
    12.742L,Electronic control unit nozzle

2.  HYUNDAI POWERTEC D6CF41E4:410PS(302 KW),Euro IV emission,torque 1800 N.m,displacement
    12.742L,Electronic control unit nozzle

Total 2 Gearbox model fixed to above 2 engine model accordingly:

1.  For 360PS(265 KW),HYUNDAI T180S12 manual,12 forward 2 reverse,2000 N.m

2.  For 410PS(302 KW),HYUNDAI T230S12,manual,12 forward 2 reverse,2300 N.m

Front Axle: 7 TON

Driving Axle:  HYUNDAI R178HT,16T loading capacity/set, hub reduction;with speed ratio 4.8 standard, 5.571 & 5.73 & 6.77 for option

Tire:  12.00R20-18R radial tire for standard, 315/80R22.5-18PR & 295/80 R 22.5 tubless for option
