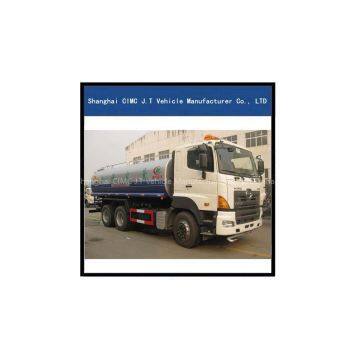

Hino Tank Truck

Model SS2PKUA-LSW/YC5250SS2PK  Driving type: 6*4 left hand driving

Engine Make: HINO MADE IN CHINA
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model: P11C-UJ , Euro III emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1460 Nm
Number of cylinder: 6
Displacement: 10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71oC opening begin
Single cylinder air compressor
Rigid fan

Transmission Fuller RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42   8.26  6.08  4.53   3.36  2.47   1.81   1.35  1   12.99 (R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle Steering with doubleT-cross section beam

Rear Axle HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
Ratio:5.285

Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, Manganese steel
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Wheels & Tyres Tire: 11.00R20, all steel radial tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats

Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions  mm Wheel base 3640+1410
Front wheel track 2060
Rear wheel track 1855
Front overhang  1410
Rear overhang 1730
Approach angle (0) 20
Departure angle (0) 30
Overall length 8500
Overall width 2500
Overall height  3700
Weight  kg Dead weight 12000
Maximum Loading Capacity 25000
Gross vehicle weight 37000
Front axle loading capacity 8000
Rear axle loading capacity 26000
Parameter of the water tank Water tank material Carbon steel Q235
Volume m3 19 M3 (5000 gallons water, 19,000 L)
Tank thickness  5mm body,  head: 6mm
With rear working platform with water cannon (range + 28m) Yes
With water pump (suction 3m +) connect to the PTO on the gear box Yes
Front / Back, side water spray Yes
High pressure water cannon Yes
Water suction pipe 3 meters
Automatic water suction system Yes
Water tank inside Preservative treatment Yes
Performance  Maximum driving speed  (km/h) 90
Maximum gradeability (%) 34
Minimum ground clearance (mm) 298
Fuel consumption (l/100 km) 32
