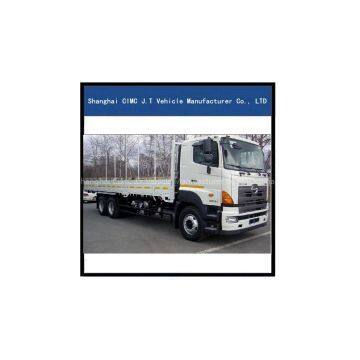

Hino 6X4 Cargo Truck

Engine Make:HINO
Diesel 4-stroke electric control common rail engine
Engine model: P11C-VK, Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp(259kw) at 1900 rpm
Maximum torque: 1488 Nm at 1100-1300 rpm
Number of cylinder: 6
Displacement:10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71oC opening begin
Twin cylinder air compressor
Rigid fan
Transmission 12JSD160TA,12 forwards and 2reverse Maximum torque: 1600 Nm at 2600 rpm
Ratio: 12.1 9.41 7.31 5.71 4.46 3.48 2.71 2.11 1.64 1.28 1 0.78 11.56(R1) 2.59(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle Steering with double T-cross section beam, Rated loading capacity:2* 6500kgs
Rear Axle THD18 Casting axle housing,  with hub reduction and with differential locks between wheels and axles,
Loading Capacity Rear Axle (Kg.) 18000 kgs, Standard Ratio:3.9
Chassis Frame: U-profile parallel ladder frame with section , and reinforced subframe all cold riveted cross members
Front suspension:11/11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:13 leaf semi-elliptic springs, bogie spring and stabilizer
Fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Wheels & Tyres Tire: 11.00R20, 10pcs and 1 spare
Driver's Cab HINO High-roof cab, with two seats, 2 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,
air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
