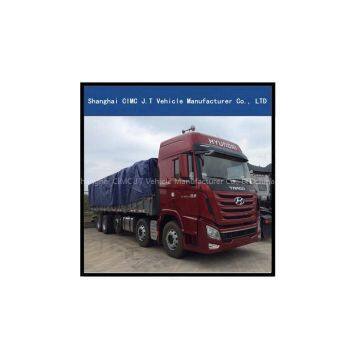

Hyundai Xcient Special Truck

Engine Make: HYUNDAI POWERTEC
Diesel 4-stroke direct injection diesel engine, electronic control, SCR
Engine model: D6CF36E4, Euro III or Euro IV emission standard
6-cylinder in-line with water cooled, turbo-charging and intercooler
Maximum output: 360 hp (265 Kw)
Maximum torque: 1600 Nm
Number of cylinder: 6 in line
Displacement: 12.742 L
Specific fuel consumption: 186 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71oC opening begin
Single cylinder air compressor
Rigid fan

Transmission HYUNDAI T180S12, with overdrive, synchronized, 12 forwards and 2 reverse, 1800N.m
Ratio: 12.29   9.57  7.49  5.83  4.57  3.55  2.69  2.10  1.64  1.28  1  0.78  10.86(R1) 8.46(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HYUNDAI, Steering with doubleT-cross section beam, 7.5 T, drum air brake
Rear Axle HYUNDAI H120ST, 16 T Pressed axle housing, hub reduction and with differential locks between wheels and axles .
Ratio:4.8      Option: 4.8,5.73,6.29   6.77
Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis
