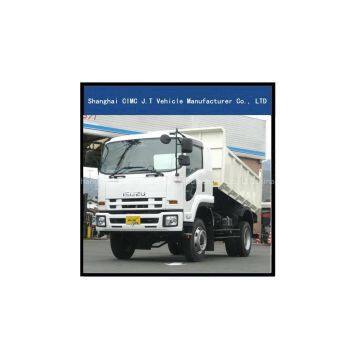

Isuzu Dump Truck 4X2

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control

Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Maximum torque: 1422 Nm 1400 r/min
Number of cylinder: 6
Displacement: 9.8 L
Specific fuel consumption: 184 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71oC opening begin
Single cylinder air compressor
Rigid fan

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity

Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9,  4.1,  4.3
Chassis Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8 all cold riveted cross members, Manganese steel
Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn, 24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
