Product Details
| Brand Name | 3c-Link | Place of Origin | China | |
| Model Number | 3C-CXP-SR10 |
Product Description

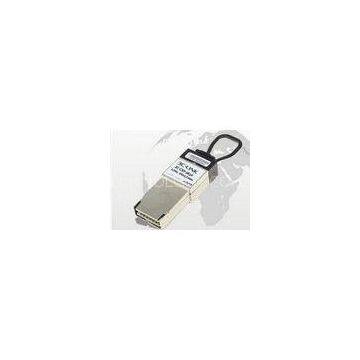

Fiber Optic Transceiver / 100G BASE-SR10 100m CXP Optical 3C-CXP-SR10 fiber module
Description
3C-LINK CXP transceiver modules are designed for use in up to 100 Gigabit per second links over multimode fiber. They are compliant with the CXP Specification and IEEE 802.ba 100GBASE-SR10 and CPPI interfaces. The trasceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EU, For applications up to 12.5Gb/s per channel, please contact 3C-LINK.
Features
12-channel full-duplex transceiver module Hot Pluggable CXP footprint Maximum link length of 100m on OM3 Multimode Fiber (MMF) Multirate capability: 1.06Gb/s to 10.5Gb/s per channel Unretimed CPPI electrical interface Requires 3.3V power supply only Low power dissipation: <3.5W Reliable VCSEL array technology Built-in digital diagnostic functions Commercial operating case temperature range: 0°C to 70°C Single MPO connector receptacle RoHS-6 Compliant (lead-free)Specifications
| Form Factor | CXP |
| Distance | 100 m |
| Protocol | 8 ?Gb/s Fiber Channel Compliant |
| 4 ?Gb/s Fiber Channel Compliant | |
| 10?Gb/s Fiber Channel Compliant | |
| Data Rate (max) | 10.5 Gb/s |
| Low End Case Temperature(°C) | 0?°C |
| High?End Case Temperature(°C) | 70? °C |
| Diagnostics | Digital |
| Transmitter | VCSEL |
| Receiver | PIN |
| Voltage Supply | 3.3 |
| Connector | MPO |
OEM/ODM order is available
For all your inquiry about our product,we will reply to you within in 24 hrs.
Can print your logo in our products.
? ? 2.Warranty
SFP/GBIC/CWDM/DWDM/XFP/SFP+/XENPAK/X2/BIDI SFP&GBIC comes with 2-year warranty from the date of shipment.
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Tag: fiber optical transceiver, fiber optical module, ?100G BASE-SR10 100m CXP?Fiber Optic Transceiver
