Wet Proof Optical Fiber Termination Box PVC SM 9 / 125um , Outdoor Terminal Box For FTTH System

PVC SM ( 9 / 125um ) optical fiber distribution box , optical termination box otb For FTTH Cystem

3C-LINK fiber termination box provides a mini density wall-mounted solution for next generation networks, which aims to provide and manage minimum numbers of fibers in a limited space.

It is normally installed in the way of wall-mounted.

Widely used in FTTH access network, telecommunication networks, CATV networks, data communications network,

local area networks, indoor and outdoor application.

Mini FTTH terminal box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects

fiber optic splices and helps to share out the connectivity to individual customers.

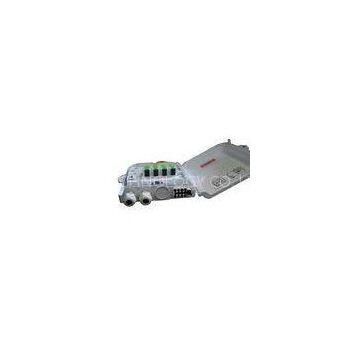

3CGFS-8E Type Optical Termination Box is designed to connect raiser/distribution cables to subscriber’s drop cable in FTTx networks. It has 2 input port and 8 output ports on the bottom and it is easy to install on the wall.

The splice tray is for splicing a fiber of raiser cable and the subscriber’s drop cable through adaptor plate acting as interface.

Ⅰ

. Features

Ⅱ. Application

III Installation

1. Install adapters

Suitable for SC simplex or LC duplex

2. Input cable fixation

nsert fiber cable into the input holes, and then fix it on the box by suitable fixation clamps as picture.

(The length of input cable is about 1M)

3. Cable arrangement

Insert bare fiber into protective sleeves, then fix and trim input cable.

(The length of protective tube is about

4. Output cable arrangement

Insert output cable into output holes, connect output connectors with adaptors, then sort out output

1. Lower part 2. Cover 3. Lock；4.? PLC slot 5. Splice tray 6. Adapter panel 7. Adapter 8. pigtail 9. Fast connector 10. Cable fixation 11. Input cable 12. Cable gland 13. dust caps

5. Wall mount application:

5. Pole mount application:
