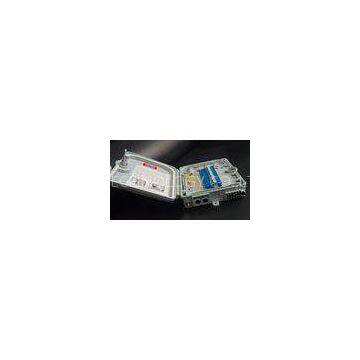

12 CORES Fiber Optic Box Protection Level IP68 , Optical Termination Box For Local Area Networks

12 CORES fiber splitter box Protection Level IP68 , fiber optic splitter box For Local Area Networks

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Ⅰ. Features

Ⅱ. Application

III Specification

1, Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2, Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3, Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than2MΩ/500V(DC)；

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

；U≥3000V

4, Configuration table:

Table 1 Model and configuration

5, Product cable ways:

6,Installation:

1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .(Pic 7)

?Wall mounted installation ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Pole mounted installation

7,Accessories:

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

4. Easy pole ring*2,M6*20mm Bolt*2(Option)
