Dome Type Fiber Optic Enclosure To 96 Cores / 2 In 2 Out Joint Closure Fiber Optic
- T/T L/C D/P D/A
- 7 days
You May Like
-
Dome Type Joint Box Fiber Optic To 144 Cores / Vertical PC FTTH Optical Fiber
-
Wall Mount Fiber Optic Closure Waterproof Telecommunication Systems
-
PAS technology 6 Motors Driven Fiber Optic Machine Splicer Machine For Fusion Splicer Fiber
-
Outside Aerial Fiber Optic Splice Box Up - Down Bisection 465*180*122mm
-
19 Inch Rack / ABS Type CWDM MUX DEMUX Device LC Connector Wide Pass Band
-
Inline Type Fiber Optic Closure / 4 In 4 Out Up To 288 Cores Horizontal Fiber Optical Enclosure
Product Details
| Brand Name | 3c-link | Place of Origin | China | |
| Model Number | 3C-FOSC-08-11 |
Product Description
Certification:CE ISO9001

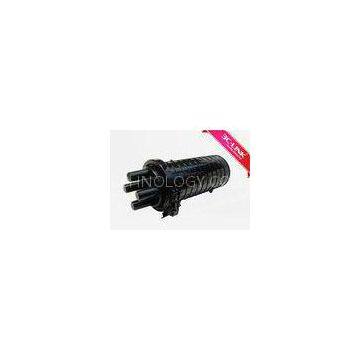

Fiber optic closure / dome type fiber optic closureup to 96 cores / 2 in 2 out fiber optic joint closure
Description:
Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It?provides space and protecton for the fiber optic cable splicing and joint. Fiber splice closure is used for aerial,?strand-mount FTTH locations where drop cables are spliced to disribution cables. With different kinds of ports?types, the products can fit different fiber optic core numbers. It is suitable for protecting optical fiber splices in?straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable?projects. We supply Dome type and In-line type splice closure. The max capacity includes 12 core, 24 core, 48?core. 72 core, 96 core, 144 core and etc.
Specification:
| Product outlook size | Long:410mm Diameter:140 |
| Product material quality | PC |
| Product weight | Approximately 2.5kg |
| Suitable Dia of cable | 8-20mm |
| Fibers/Tray | 12 Or 24 |
| Max capacity(F) | 96 |
| Outside box size | 62.5*42*45.5 |
| Each packing quality | 6 pieces ? |
Features:
?
The enclosure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
The closures are applicable to ribbon type optical cable and common optical cable.
The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.
Each optical cable and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.
?
Applications:
?
1. Sutable for bunchy fibers
2. Aerial ,wall-mounting
3. FTTH optical fiber distribution
?
Tag:fiber optical splice closure, fiber optical joint box, fiber optical splice enclosure
?
?
