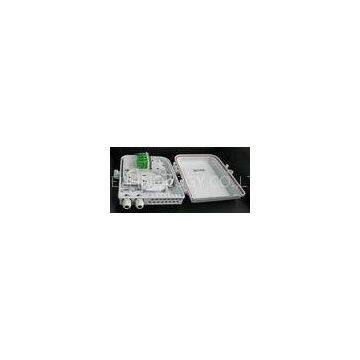

Total Enclosed Structure Fiber Terminal Box 16 CORES With Wall Mount / Pole Mount

16 CORES outdoor fibre optic splice box , termination box fiber with Wall mount / Pole mount

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Ⅰ. Features

Ⅱ. Application

III Specification

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than2MΩ/500V(DC)；

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

；U≥3000V

4,Configuration table:

5,Product cable ways:

5.1. Insert Input cable and fix it.

5.2Connect input cable with splitter input cable by fusion splicing.

5.3. Cable routing, storage

5.4?Fix the arranged output pigtails with spiral tube to tray.

5.5?Connect splitter output pigtails with drop cable by fast connector

5.6.Close the cover, and mount the termianl on the wall or pole.

1X16 PLC SPLITTER TERMINAL?

IP 68

UV RESISTANCE?
