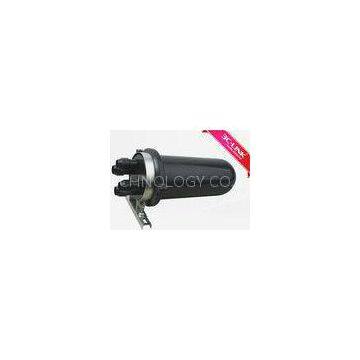

Vertical 144 Cores Fiber Optic Cable Splice Closure For Direct - Buried
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
FTTH Networks Fiber Optic Media Converter Multimode 10/100Mbps Full Duplex / Half Duplex.
-
4 Channel Optical Fiber CWDM MUX Demux , Passive CWDM Device For Line Monitoring
-
Total Enclosed Structure Fiber Terminal Box 16 CORES With Wall Mount / Pole Mount
-
Standalone Type Optical Fiber Media Converter XFP Slots For Long Distance Transmission
-
Anti - Collision Joint Closure Fiber Optic Up - Down Bisection Easy To Install
-
High Capacity Fiber Optic Media Converter Gigabit Chassis With 14 Slots
Product Details
| Brand Name | 3c-link | Place of Origin | China | |
| Model Number | 3C-FOSC-08-4 |
Product Description
Certification:CE ISO9001
Vertical 144 cores fiber optic splice closure /Waterproof optical fiber cable demo joint closuree
Features:
1 ?Up-down bisection, horizontal type
2??2 inlet/outlet
3 ?144 cores max capacity
4 ?Operating Temperature: -40 ~ +60?°C
5 ?Cable Diameter(mm):8-18
6 ?ODM and OEM are Welcome
6 ?ODM and OEM are Welcome
Description:
Maximum excellent capability of 144 cores to adapt to natural conditions.
The seal way is Rubber ring.
It can endure harsh conditions such as vibration,impact,tensile cable distortion and strong temperature changes.
It is equipped with a good airtight waterproof performance.
Easy to install and open the duplicete.
The scope of aplication:aerial ,direct-buried,wall-mounting,duct-mounting.
Specification:
| Product outlook size | Long:470mm Diameter:160 |
| Product material quality | PC |
| Product weight | Approximately3.0kg |
| Suitable Dia of cable | 8-18mm |
| Fibers/Tray | 12 Or 24 |
| Max capacity(F) | 144 in two layers |
| Outside box size | 62.5*48*49.5 |
| Each packing quality | 6 pieces |
Applications:
Aerial Direct-buried Wall-mounting Duct-mounting
Easy to install,reuse.
CATV,Telecommunication,Data Networks and Test System.
Capacity
| Capacity | Model | Size(H*W*D)(mm) | Capacity (cores) | In and Out Cables |
Cable in Diameter (mm) |
|
| Single | 12 Cores | |||||
| 3C-FOSC-08-6 | L:410mm Φ 140 | 96 | 320 | 4 in 4 out | ≤Φ18 | |
| 3C-FOSC-08-7 | L:500mm Φ 250 | 288 | 480 | 4 in 4 out | ≤Φ40 | |
| 3C-FOSC-08-8 | L:410mm Φ 140 | 96 | 320 | 2 in 2 out | ≤Φ18 | |
| 3C-FOSC-08-9 | L:480mm Φ 240 | 144 | 480 | 3 in 3 out | ≤Φ22 | |
| 3C-FOSC-08-4 | L:470mm Φ 160 | 144 | 560 | 2 in 2 out | ≤Φ18 | |
| 3C-FOSC-09-2 | 400*200*122 | 96 | 480 | 2 in 2 out | ≤Φ20 | |
| 3C-FOSC-09-6 | 400*200*122 | 96 | 320 | 4 in 4 out | ≤Φ22 | |
| 3C-FOSC-09-4 | 555*240*123 | 288 | 144 | 4 in 4 out | ≤Φ23 ? |
|
Tag:fiber optical splice closure, fiber optical joint box, fiber optical splice enclosure
