32 Channel Fiber Optic DWDM MUX Demux With High Channel Solation
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compact Size Gigabit Fiber Media Converter Non Blocking Full Wire Speed Forwarding Rate
-
Vertical 144 Cores Fiber Optic Cable Splice Closure For Direct - Buried
-
FTTH Networks Fiber Optic Media Converter Multimode 10/100Mbps Full Duplex / Half Duplex.
-
4 Channel Optical Fiber CWDM MUX Demux , Passive CWDM Device For Line Monitoring
-
Total Enclosed Structure Fiber Terminal Box 16 CORES With Wall Mount / Pole Mount
-
Standalone Type Optical Fiber Media Converter XFP Slots For Long Distance Transmission
Product Details
| Brand Name | 3C-LINK | Place of Origin | China | |
| Model Number | 3C-MUX-3201-A |
Product Description

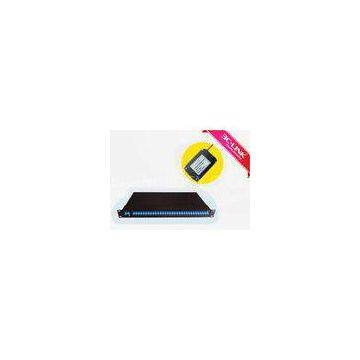

19" Rack With Monitor Fiber Optic 32 Channel DWDM Mux / Demux
SpecificationsFiber Optical DWDM Mux/ Demux Module
2/4/8/16/18/32 Wavelengths
With SC/ FC/ LC/ ST connectors
Low Insertion Loss
?
Features
-TU-T 100G or 200G 4/8/16/32/40 Channel DWDM Wavelentths Optional
-Reliable Passive Thin Film Filter WDM Optical Technology
-Low Optical Insertion Loss and High Channel solation
-Expoxy-Free in Optical Path
-Telcordia (Bellcore) GR-1221-CORE
-Mux+Demux Fits in 1RU 19 Rack-mount Chassis Optional
-RoHS Complaint
Applications
- Channel Add / Drop
- DWDM Network
- Wavelength Routing
- Fiber Optical Amplifier
- CATV Fiberoptic System
Description
Passive DWDM Devices1x8 DWDM mux module, Start channel: C44, 0.9mm loose tube , Fiber length≥1.0m ,ABS box with LC/UPC connector
1×8 DWDM demux module, Start channel: C44, 0.9mm loose tube , Fiber length≥1.0m , ABS box with LC/UPC connector
1x16 DWDM device ABS box 16Ch start channel: C20,100G with LC/SC/FC connectors
1×8 DWDM device 19"rack Start channel: C44 100G with LC/SC/FC connectors
1×16 DWDM device 19"rack start channel: C20 100G with LC/SC/FC connectors
16ch DWDM AAWG packaged ABS box 0.9mm loose tube, 1m with LC/UPC connectors. wavelength is from C20 to C35
40ch DWDM AAWG packaged ABS Box 0.9mm loose tube, 1m with LC/UPC connectors. wavelength is from C21 to C55
40ch AAWG packaged by 1U rack with LC/UPC adapter. wavelength is from C21 to C55
Performance Specifications
DWDM Mux/Demux Module
| Parameter | Unit | Value | |||||
| Central Wavelength | nm | ITU-T Grid | |||||
| Channel Spacing | nm | 0.8 (100GHz) | 1.6 (200GHz) | ||||
| Number of Channels | ---- | 8 | 16 | 18 | |||
| Channel Passband | Min | nm | 0.11 | 0.11 | 0.25 | ||
| Insertion Loss | Ty | dB | 3 | 4 | 3 | ||
| Max | dB | 2.5 | 3.5 | 3.5 | |||
| Ripple | Max | dB | 0.5 | 0.5 | 0.5 | ||
| Channel Uniformity | Max | dB | 1 | 1.5 | 1 | ||
| Isolation | Adjacent Channels | Min | dB | 25 | |||
| Non-adjacent Channels | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Optical Return Loss | Min | dB | 45 | ||||
| PDL | Max | dB | 0.15 | ||||
| Thermal Stability | Max | dB/°C | 0.007 | ||||
| Thermal Wavelength DriftMax | Max | nm/°C | 0.001 | 0.002 | |||
| Operating Temperature | °C | 0 to 70 | |||||
| Storage Temperature | °C | - 40 to 85 | |||||
| Package Dimension | mm | 140 100 13 | |||||
| Maximum Power Handling |
mW |
300 |
|||||
above specification are for device without connector
OEM and ODM
OEM/ODM order is available.
What we supply
Our standard package types of DWDM Mux and Demux are Field Module ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Cassette Box. We also supply custom package to meet customers' requirements. All the DWDM MUX and Demux provide excellent optical performance and high reliability to ease of fiber handling and power saving solution.DWDM Mux/Demux Solution
1.Single Fiber DWDM Mux/Demux Solution
