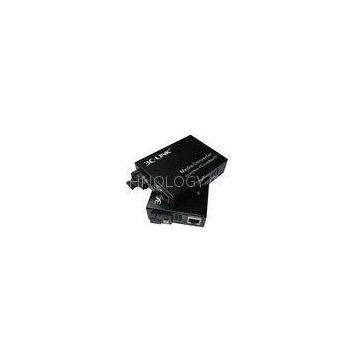

External Power Supply Single Mode Fiber Media Converter With SC Duplex Interface

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	3C-LINK		Place of Origin	China
Model Number	3C-DU-100-13-20

Product Description

Delivery Time:10 working days after received your payment
Certification:CE/ROHS/FCC/SGS

10 / 100M Single Modeethernet cable converter with SC Duplex Interface , fiber ethernet converter

Ⅰ. Product Description

The 3C-DU-100-13-20 is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The 3C-DU-100-13-20 supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with 3C-LINK′s 19′′ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. 3C-DU-100-13-20 will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers

Ⅱ. Product Features

Complies with 802.3u 10/100Base-TX, 100Base-FX standards. Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port. Extends fiber distance up to 20km Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Extend fiber distance up to 20km Easy-to-view LED indicators provide status to monitor network activity easily External power supply

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports	1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX)
Wave Length	1310nm
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX	Single-mode Fiber
LED Indicators	PWR, FDX/Col, Link/Act, SPD
Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External power supply
Max Power Consumption	1.52W
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

III Application:
