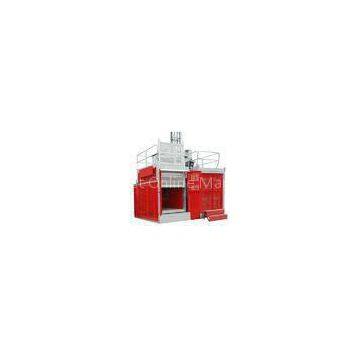

Painted Industrial Lift 2000kg 3 1.3 2.5 m , Building Material Handling Hoist
- T/T L/C D/P D/A
- 7 days
You May Like
-
Heat treatment Rack and Pinion Durable Industrial elevators for construction site
-
Single Car Industrial Elevators , Building Lifter CH160 with 118 Mast Section
-
2000kg Double Car Industrial Elevators Construction Material Handling Equipment
-
Construction Material Lift Equipment Hoisting Machine for transporting passenger
-
Window Cleaning Equipment Suspended Access Platform / Mobile Access Platforms
-
Vertical Red 2700kg OEM Rack And Pinion Hoists for Building / Factory
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | CH-series |
Product Description
Certification:CE,ISO
Durable Double Car Painted Industrial Lift With CH2000 2000kg 3 X 1.3 X 2.5 m
Quick?Detail:
|
Name |
other name |
Brand?Name |
Control |
|
Industrial?hoists |
Industrial?hoists?CH?2000/2000 |
BORUIDA |
DOL?and?FC |
|
Loading?Capacity |
2000kg/2000kg |
Certificate |
CE |
Description:
Industrial hoists CH 2000/2000 is installed and dismounted conveniently and can grow as high as the building grows height.The Industrial hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.It is efficient and safety vertical transporting equipment
Applications:
CH serialization of products Industrial hoists is a Rack and Pinion EL. Industrial hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
Specifications
Standard?technical datas of? double cars:
|
Parameter |
CH1000/1000 |
CH1600/1600 |
CH2000/2000 |
CH2700/2700 |
CH3200/3200 |
|
Rated |
1000/1000 |
1600/1600 |
2000/2000 |
2700/2700 |
3200/3200 |
|
Rated?lifting?speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated?passenger?number |
12/12 |
18/18 |
24/24 |
30/30 |
38/38 |
|
Max.?lifting?height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine?power(kW) |
2*2*9.5 |
2*2*11 |
2*2*13 |
2*3*18.5? |
2*3*22 |
|
Car?inner?dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Car?weight?(kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section?weight |
145 |
145 |
163 |
163 |
163 |
|
Mast?section?dimension?(mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety?device?type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4? |
SAJ50-2.0? |
|
Hanger?rated?lifting?capacity |
250 |
250 |
250 |
250 |
250 |
|
Rack?module |
8 |
8 |
8 |
8 |
8 |
CH series?industrial hoists:?
1). Car load capacity: 1000kg~3200kg;
2). Lifting speed:33m/min, 0~40m/min;0~60m/min;
3). Increased lifting height on request;
4). Mast section: Painted or hot dipped zinc?
5). Car:double car?
6). Recommended car inner dimensions (L*W*H): 3*1.3*2.5m, 3*1.
