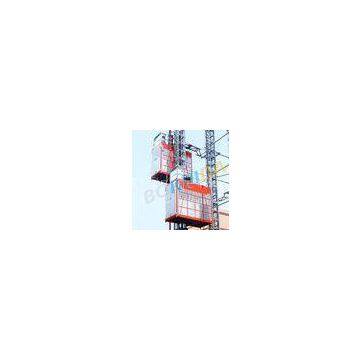

Single / Double Cage 2700kg Passerger Hosit with Rack and Pinion
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Cage Hoists Frequency Rack And Pinion Material Hoisting Equipment CH3200
-
Vertical Rack And Pinion Hoists
-
Cradle Suspended Access Platform Equipment / Scaffold Ladders for Construction Site
-
Aluminum Alloy Working Suspended Access Platform with Steel Rope , Construction Scaffolding
-
Electric Rack And Pinion Hoists / Construction Elevator 3200kg High efficiency
-
Passenger and Material Hoisting Equipment Construction Elevator for Building Site
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | CH-series |
Product Description
Certification:CE,ISO
Single / Double Car 2700kg Capacity Passerger Hosit CH Series with Mast Hot-dip Galvanized
?
?
Quick Detail:
?
|
Name |
Other Name |
Brand Name |
Control |
|
Personnel and material hoists |
Personnel and material hoists CH 2700/2700 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
2700kg/2700kg |
Certificate |
CE |
?
?
Description:
?
Personnel and material hoists CH 2700/2700 is installed and dismounted conveniently and can grow as high as the building grows height.The Personnel and material hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
CH serialization of products Personnel and material hoists is a Rack and Pinion EL. Personnel and material hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications
Standard?technical datas of? double cars:
|
Parameter |
CH1000/1000 |
CH1600/1600 |
CH2000/2000 |
CH2700/2700 |
CH3200/3200 |
|
Rated |
1000/1000 |
1600/1600 |
2000/2000 |
2700/2700 |
3200/3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12/12 |
18/18 |
24/24 |
30/30 |
38/38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*2*9.5 |
2*2*11 |
2*2*13 |
2*3*18.5 |
2*3*22 |
|
Car?inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Car?weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4? |
SAJ50-2.0? |
|
Hanger rated lifting capacity |
250 |
250 |
250 |
250 |
250 |
|
Rack module |
8 |
8 |
8 |
