Rack / Pinion Industrial Lift
- T/T L/C D/P D/A
- 7 days
You May Like
-
VFD Industrial Hoist Lifter / Hoisting Equipment with Double Car 1T - 3.2T
-
Rack and Pinion CH1600 Twin Cage Industrial Lift Elevator 1600Kg High Efficiency
-
Material Hoisting Industrial Elevators
-
Vertical Single Car 300kg Capacity Industrial Lift , Construction Elevator
-
Single / Double Car 2700kg Industrial Elevators with Mast Hot-dip Galvanized
-
1000 kg 2 Double Cage Industrial Elevators with Lifting Height 150 m
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | CH-series |
Product Description
Certification:CE,ISO

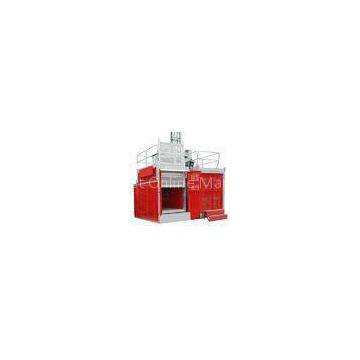

Rack / Pinion Industrial Lifter Single Cage With 250m Lifting Height
?
?
Quick Detail:
?
|
Name |
Other Name |
Brand Name |
Control |
|
Industrial hoists |
Industrial hoists CH 2000/2000 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
2000kg/2000kg |
Certificate |
CE |
?
?
Description:
?
Industrial hoists CH 2000/2000 is installed and dismounted conveniently and can grow as high as the building grows height.The Industrial hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
CH serialization of products Industrial hoists is a Rack and Pinion EL. Industrial hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications
Standard?technical datas of? double cars:
|
Parameter |
CH1000/1000 |
CH1600/1600 |
CH2000/2000 |
CH2700/2700 |
CH3200/3200 |
|
Rated |
1000/1000 |
1600/1600 |
2000/2000 |
2700/2700 |
3200/3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12/12 |
18/18 |
24/24 |
30/30 |
38/38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*2*9.5 |
2*2*11 |
2*2*13 |
2*3*18.5 |
2*3*22 |
|
Car?inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Car?weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
?SAJ30-1.2 |
SAJ40-1.2 |
