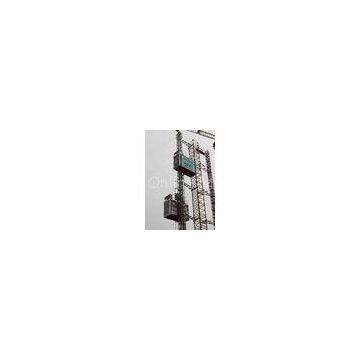

Electric Rack And Pinion Hoists / Construction Elevator 3200kg High efficiency

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BORUIDA		Place of Origin	China
Model Number	CH-series

Product Description

Delivery Time:25-35 days
Certification:CE,ISO

?
CH3200 Painted Rack And Pinion Hoists With Llifting Height 250m
?
?
Quick Detail:
?

Name	Other Name	Brand Name	Control
Rack and pinion hoists	Rack and pinion hoists CH 3200/3200	BORUIDA	DOL and FC
Loading Capacity	3200kg/3200kg	Certificate	CE

?
?
Description:
?
Rack and pinion hoists CH 3200/3200 is installed and dismounted conveniently and can grow as high as the building grows height.The Rack and pinion hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
CH serialization of products Rack and pinion hoists is a Rack and Pinion EL. Rack and pinion hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications

Standard?technical datas of? double cars:

Parameter	CH1000/1000	CH1600/1600	CH2000/2000	CH2700/2700	CH3200/3200
Rated loading capacity (kg)	1000/1000	1600/1600	2000/2000	2700/2700	3200/3200
Rated lifting speed (m/min)	0~40	0~40	0~60	0~60	0~60
Rated passenger number	12/12	18/18	24/24	30/30	38/38
Max. lifting height(m)	150	250	450	450	450
Engine power(kW)	229.5	2211	2213	2318.5	2322
Car?inner dimension (LWH)(m)	31.32.5	31.42.5	31.52.5	3.21.52.5	3.61.62.5
Car?weight (kg)	1400	1500	1800	1950	2050
Mast?section weight (kg)	145	145	163	163	163
Mast section dimension (mm)	6506501508	6506501508	6506501508	6506501508	6506501508
Safety device type	?SAJ30-1.2	SAJ40-1.2	SAJ40-1.4	SAJ40-1.4?	SAJ50-2.0?
Hanger rated lifting capacity (kg)	250	250	250	250	250
Rack module	8	8	8	8	8

CH series?rack and pinion hoists:?

1). Car load capacity: 1000kg~3200kg;

2). Lifting speed:33m/min, 0~40m/min;0~60m/min;

3). Increased lifting height on request;

4). Mast section: Painted or hot dipped zinc?

5). Car:double ca
