Home > Products > Directional Panel Antenna > 2400 - 2483 MHz 14 DBi 2.4GHZ Directional Panel Antenna For Wireless AP / Adapter

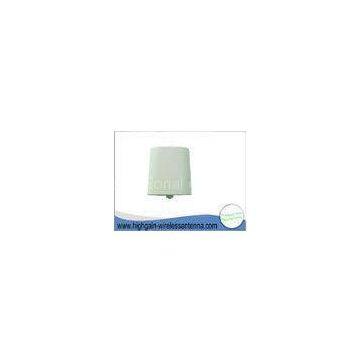

2400 - 2483 MHz 14 DBi 2.4GHZ Directional Panel Antenna For Wireless AP / Adapter
- T/T L/C D/P D/A
- 7 days
You May Like
-
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
-
High Band Hi-Gain Directional Wireless Antenna Panel Vertical 25 With SMA Male Connector
-
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
-
Wireless WIFI Directional Panel 2.4GHZ High Gain Antennas 2400 - 2483 MHz 14 dBi
-
Anti-interference Wall Mount 2.4GHZ 14 dBi Wireless Adapter/ AP Directional Panel Antenna
-
2400 - 2483 MHz 2.4GHZ WLAN ISM Wireless Directional Flat Panel WIFI Antenna 18 dBi
Product Details
| Brand Name | Runshine | Place of Origin | China | |
| Model Number | RSW-2400-14A |
Product Description
Certification:ROSH
2400 - 2483 MHz 14 DBi 2.4GHZ Directional Panel Antenna For Wireless AP / Adapter
Application:
● WIFI Telecommunication system
● Wireless AP , wireless adapter
● 2.4GHZ WLAN System
● 2.4GHZ ISM application
Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference
Specification
|
Model?NO |
RSW-2400-14A |
|
Electric?Spec |
|
|
Frequency?rang-MHz |
2400-2483 |
|
Bandwidth?-MHz |
83 |
|
Gain?-dBi |
14 |
|
beam?width?-° |
H:30???V:25 |
|
VSWR |
≤1.5 |
|
Input?Impedance-Ω |
50 |
|
Polarization |
Vertical |
|
Max?power?-W |
100 |
|
Lightning?protection |
DC?ground |
|
Connector?model |
N?Female |
|
Mechanical?Specification |
|
|
Size?-mm |
225*195*47 |
|
Antenna?weight-kg |
0.6 |
|
Working?Temperature?-°c |
-40～60 |
|
Rated?Wind?Velocity-m/s |
60 |
|
Radome?color |
white |
|
Mounting?way |
hold?in?the?pole |
Antenna details :
Application Example :
Install demonstration
View of us ;
