Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
- T/T L/C D/P D/A
- 7 days
You May Like
-
Point to Point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
-
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
-
Accurate Position Car GPS Antenna Tracking Sensitive High 3m Black
-
RIFID Wireless High Gain Antenna / 2.5dBi Rubber Duck Antenna Indoor
-
24dBi Grid Parabolic High Gain Wireless Antenna Long Distance U Clamp 16dB 2.4G
-
High Sensitive White Car GPS Active Antenna With SMA Female Connector 93 * 140 mm
Product Details
| Brand Name | Runshine | Place of Origin | China | |
| Model Number | RSL-800-2500-11 |
Product Description
Certification:ROSH
?
?

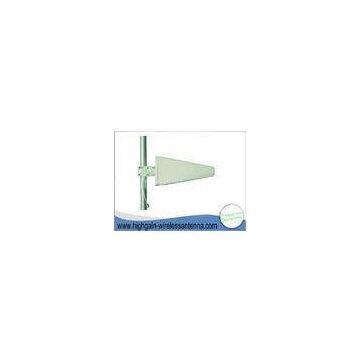

Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
?
?
Application:
● GSM/CDMA/PCS/3G/WLAN system
● 800-2500MHZ frequency band
● Wireless transmission ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
?
Feature:
?
● Good appearance
● Durable corrosion resistance
● Provide with mount kits
● Optimized dimension
● Designed by board band technology
?
Specification
?
?
Model?NO | RSL-800-2500-11 |
Electric?Spec |
|
Frequency?rang-MHz | 806～960/1710～2500 |
Bandwidth?-MHz | 154/790 |
Gain?-dBi | 10/11 |
beam?width?-° | H:65/50???V:55/40 |
VSWR | ≤1.5 |
Input?Impedance-Ω | 50 |
Polarization | Vertical |
Max?power?-W | 50 |
Lightning?protection | DC?ground |
Connector?model | N?Female |
Mechanical?Specification |
|
Size?-mm | 445*210*65 |
Antenna?weight-kg | 0.91 |
Working?Temperature?-°c | -40～60 |
Rated?Wind?Velocity-m/s | 60 |
Radome?color | white |
Mounting?way | hold?in?the?pole |
?
?
?
Antenna details :
?
?
?
?
?
Application Example :
?
?
?
Install demonstration
?
?
?
