Home > Products > Directional Yagi Antenna > Outdoor 2.4GHZ 18DBI High Gain Directional Yagi Wireless Antenna With 18 Element
Outdoor 2.4GHZ 18DBI High Gain Directional Yagi Wireless Antenna With 18 Element
- T/T L/C D/P D/A
- 7 days
You May Like
-
2300~2700MHZ 4G Directional Panel Antenna 10 dBi VSWR 1.5 For WIFI Telecommunication System
-
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
-
2.4GHZ WLAN, WIMAX , WIFI Directional Panel Antenna 10 dBi RP-SMA Connector
-
2400 - 2483 MHz 14 DBi 2.4GHZ Directional Panel Antenna For Wireless AP / Adapter
-
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
-
High Band Hi-Gain Directional Wireless Antenna Panel Vertical 25 With SMA Male Connector
Product Details
| Brand Name | Runshine | Place of Origin | China | |
| Model Number | RSY-2400-18 |
Product Description
Certification:ROSH
Outdoor 2.4GHZ 18DBI High Gain Directional Yagi Wireless Antenna With 18 Element
?Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V
Application:
● 2.4GHZ WLAN System
● Point to point and point to point multipoint transmission system
● Wireless bridge ,Terminal antenna
● Wireless AP , wireless adapter?
Specification
|
Model?NO |
RSY-2400-18 |
|
Electric?Spec |
|
|
Frequency?rang-MHz |
2400-2483 |
|
Bandwidth?-MHz |
83 |
|
Gain?-dBi |
18 |
|
element |
18 |
|
beam?width?-° |
H:30??V:28 |
|
F/B?Ratio-dB |
≥16 |
|
VSWR |
≤1.5 |
|
Input?Impedance-Ω |
50 |
|
Polarization |
Horizontal?or?Vertical |
|
Max?power?-W |
100 |
|
Lightning?protection |
DC?ground |
|
Connector?model |
SMA?female?or?others |
|
Mechanical?Specification |
|
|
Size?-mm |
580*70*44 |
|
Cable?length-m |
1 |
|
Antenna?weight-kg |
0.35 |
|
Working?Temperature?-°c |
-40～60 |
|
Rated?Wind?Velocity-m/s |
60 |
|
Clamp |
U |
|
Pole?diameter?-mm |
Φ40～Φ50 |

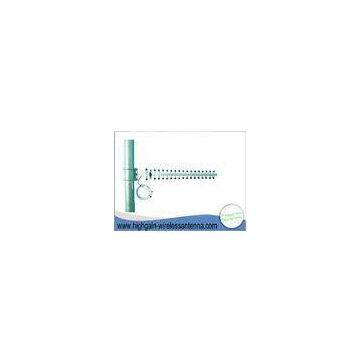

Antenna details :
Application Example :
Install demonstration
View of us ;
