Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
- T/T L/C D/P D/A
- 7 days
You May Like
-
GSM CDMA PCS 3G Directional Wireless Antenna High Gain 800MHZ - 2500MHZ
-
15 dBi Omni-directional Fiberglass High Gain Wireless Antenna WIFI 20 x 1500mm
-
3G High Gain Wireless Antennas / 3dBi Rubber Whip Antenna SMA Male Connector
-
Black High Gain 3dBi Active Car GPS Antenna Low VSWR SMA / SMB / SMC Connector
-
Waterproof universal 2.4G GSM GPS Antenna For Car Screw Mounting
-
RHCP Polarization Black 1575.42MHz Car GPS / GSM Antenna Hole / Roof Mounting
Product Details
| Brand Name | Runshine | Place of Origin | China | |
| Model Number | RSDP-2400-15 |
Product Description
Certification:ROSH
?
?Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
?
?
Feature:
?
● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization
?
?
Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system
?
?
Specification
?
RSDP-2400-15 ??Electric?Specifications |
|
Frequency?rang | 2400-2500 |
Polarization | ±45° |
Gain(DBi) | 2×15 |
Beamwidth(0°) | H:90???V:18 |
F/B?ratio(DB) | ≥25 |
Input?Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Max?power(W) | 200 |
Lightning?protection | DC?ground? |
Mechanical?Specifications |
|
Connector?model | 2×N?Female |
antenna?size?(mm) | 650*175*80 |
Packing?size(mm) | 680*200*150 |
Antenna?weight?(kg) | 4 |
Radome?material | UPVC |
Radome?color | Gray |
Mechanical?tilt(°) | 0～15 |
Working?Temperature(°c) | -40～60 |
Rated?Wind?Velocit(m/s) | 60 |
Pole?diamete(mm) | 50～75 |
?
?

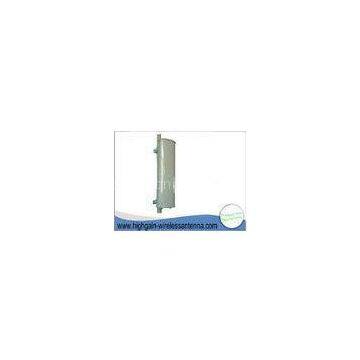

Antenna details :
?
?
?
?
?
?
?
?
?
?
?
?
Application Example :
?
?
?
Install demonstration
?
?
?
View of us ;
?
?
