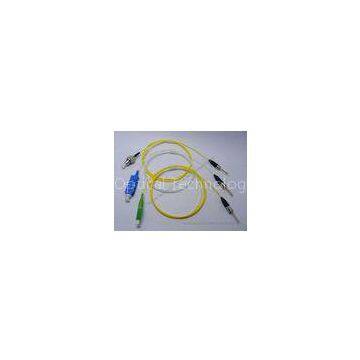

Digital Optical Transmission 1550nm Laser Diode With FP Pigtail Package
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wide Bandwidth 1550nm FP TOSA Laser Diode For Light Source
-
High Output Power 80mw 1550nm Pulsed Laser Diode for OTDR System
-
Professional 1550nm 20 - 40 mw Pulse Laser Diode for OTDR system
-
Long Wavelength 60mw 1550nm Laser Diode with 2.5Gb/s bandwidth
-
Red Visible Light 650nm Laser Diode Module For Light Source Application
-
1270nm - 1610nm CWDM Butterfly Laser Diode for Long haul CWDM Transmission
Product Details
| Place of Origin | China | |
| Model Number | 1550nm FP laser diode |
Product Description
Certification:RoSH, ISO9001
1550nm laser diode with FP pigtail package for CATV, other analog or digital optical transmission
?
?
1550nm?FP?Pigtailed?Components
?
Features
?
1. Low?capacitance?and?low?dark?current
2. High?stability?of?FP?lasers?diode
3. Low?threshold?current?,?low?operating?current
4. Built?-?in?optical?isolator
6. Integrated?high?isolation?,?low?insertion?loss
?
?
Applications
?
CATV?Reverse?Transmission
Other?Analog?or?Digital?Optical?Transmission
?
?
Optical?&?Electrical?Characteristics
?
Parameter | Symbol | Min. | Typ. | ?Max. | Unit | Test?Condition? |
Rated?Power | Po | 0.2 | - | 4 | mW | Ith+20mA |
Threshold?Current | Ith | 5 | - | 12 | mA | CW |
Forward?Voltage?Drop | Vop | - | 1.0 | 1.5 | V | CW,?Ith+20mA |
Cent?Wavelength? | λc | 1300 | 1310 | 1320 | nm | -20dB |
1540 | 1550 | 1560 |
||||
Spectrum?Width(-3dB) | Δλ | - | 2 | 3 | nm | Ith+20mA |
Bandwidth | Bw | - | 2.5 | GHz | - |
|
Monitor?Current | Im | 100 | 900 | uA | CW,?Ith+20mA |
|
Dark?Current?of?Monitor? | Id | - | - | 100 | nA | 5V |
Relative?Intensity?Noise | RIN | - | -150 | - | dB/Hz | CW,?25℃ |
RF?Bandpass?Flatness | BF | ±1.5 | dB | If=Iop,45MHz-1200MHz? |
||
Third-order?Distortion? | IMD3 | - | 53 | dBc | 2?tone?test,? |
|
Optical?Isolation | ISO | 30 | 40 | - | dB | 25℃ |
?
?
Absolute?Maximum?Ratings
?
Parameter | Symbol | Min. | Max. | Unit | Test?Condition? |
Storage?Temperature | Tstg | -40 | 100 | ℃ | - |
Operating?Temperature | Top | -40 | 85 | ℃ | - |
Forward?Current(LD) | If(LD) | 120 | mA | ||
Reverse?Voltage(LD) | Vr(PD) | 2 | V | CW |
|
Forward?Current(PD) | If(LD) | 2 | mA | ||
Reverse?Voltage(PD) | Vr(PD) | 15 | V | CW |
|
Soldering?Temp | - | - | 260 | ℃ | - |
Soldering?Time | - | - | 10 | S | S |
?
?
PIN?Definition
?
?
Drawing
?
?
Order?Information
?
MLD-FXXX2-XXXX
M | LD | -F | XX | X | 2 | -X | X | X | X |
Mode | Product?Type | Chip | Wavelength | Insolator | Bandwidth | Connector | Pin | Pigtail?Length | Power? |
F:FP |
| S:Single | 2:2.5Gb/s | 1:FC/APC | A:725 |
