2.5Gb/s 14-PIN Butterfly Ingaas PD Photodiode for Optical Fiber Sensor
- T/T L/C D/P D/A
- 7 days
You May Like
-
Professional Cheap Pulse 1550nm Laser Diode With Pigtailed Fibre
-
High Output Power 1625nm Pulsed Laser Diode With Built -in monitor PD
-
1650nm Pulsed Laser Diode With High Output Power More Than 30mw for ODTR
-
High Output Power TOSA Laser , 635nm Laser Diode For Light Source
-
650 nm Visible Light Red Laser Diode 1mw Coaxial Plug -In Package Type
-
1310nm DFB TOSA Laser Diode For Optical Transmitter / Digital Signal
Product Details
| Place of Origin | China | |
| Model Number | butterfly APD |
Product Description

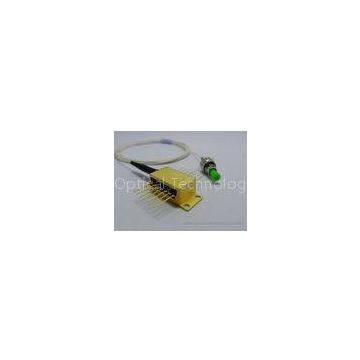

InGaAs 14-PIN Butterfly APD for Optical fiber sensor and communication system
InGaAs?14-PIN?Butterfly?APD
Features
1. Long?wavelength?operation
2. Package:14pinbutterflypackage
3. Built-in?TEC?and?monitor
4. Low?dark?current
5. MM?fiber?pigtail?with?FC/APC?connector
6. Excellent?reliability?compliance?to?GR-468-CORE
7. Compliance?to?RoHS?standard
8. High?linearity,?High?responsivity.
Applications
Optical?fiber?sensor?system
Optical?fiber?communication?system
Absolute?Maximum?Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Forward?Current? |
IF? |
10 |
mA? |
||
|
Reverse?Current? |
IR? |
2 |
mA? |
||
|
Operating?Case?Temp.? |
TC? |
-40 |
85 |
°C? |
|
|
Storage?Temperature? |
TSTG? |
-40 |
85 |
°C? |
|
|
Lead?Soldering?Temp.? |
TSOL? |
- |
260(10s) |
°C? |
|
|
Reverse?Voltage? |
Vr? |
2 |
Vbr |
V |
Optical?&?Electrical?Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Notes |
|
Reverse?Breakdown?Voltage |
VBR |
35 |
42 |
55 |
V |
Id=10uA,?Tc=25℃ |
|
Optical?Wavelength |
λ |
900 |
1700 |
nm |
||
|
Dark?Current |
ID |
10 |
50 |
nA |
Tc=25℃?VR=0.9Vbr |
|
|
Terminal?Capacitance |
Ct |
0.38 |
0.5 |
pF |
f=1MHz,Vr=0.9Vbr |
|
|
Cut-off?Frequency |
fC |
2.0 |
3.0 |
GHz |
Tc=25℃VR=0.9Vbr |
|
|
Responsivity |
S |
4.0 |
5.5 |
A/W |
λ=1310nm, VR=0.9Vbr,25°C |
|
|
TEC?Current |
Itec |
1500 |
mA |
Tc=25℃VR=0.9Vbr |
||
|
Thermistor |
RT |
9.9 |
10 |
10.1 |
k? |
@25℃ |
Pin?Assignment
Dimensions?are?in?millimeters.All?dimensions?are?±0.1?mm?unless?otherwise?specified.
Order?Information
BAP-2XXXM4
|
B |
AP |
-2 |
X |
X |
X |
M4 |
|
Mode |
Product?Type |
Bandwidth |
Connector |
Fiber?Type |
Pigtail?Length |
Multifactor |
|
Butterfly |
