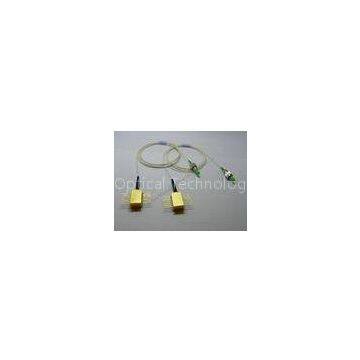

1310nm 14 Pin Butterfly Laser Diode With Output Power 2 - 32mw for CAT
- T/T L/C D/P D/A
- 7 days
You May Like
-
2 - 16 mw 14 Pin Butterfly 1550 nm Laser Diode For Point - To - Point
-
OTDR 1490nm Pulse Laser Diode With High Output Power 40 - 60mw
-
Built - In Monitor PD 1650nm Pigtailed Laser Diode , High Power Diode Laser
-
1310nm High Power Pulsed Laser Diode 2.5Gb/s Bandwitdth for OTDR
-
Wide Bandwidth FP TOSA Laser Diode 1550nm For Sensor And Light Source
-
RoSH Approved 650nm 5mw Laser Red TOSA Receptacle With Universal Adapter
Product Details
| Place of Origin | China | |
| Model Number | butterfly laser diode |
Product Description
Certification:RoSH, ISO9001
1310nm?Butterfly?Laser?Diode
Features
1. High?linearity?high?power?MQW?DFB?LD?chip
2. Built-in?isolator,?TEC,hermistor?and?Monitor?PD
3. Optimized?for?2.5?Gb/s?Modulation?Rates
4. 14-pin?butterfly?cooled?package
5. single?mode?FC/APC?connector?or?customized
6. Output?power?2~32mW
Applications
CATV?forward-path
1310nm?broadcast?and?point-to-point?applications
Absolute?Maximum?Ratings
|
Parameter |
Symbol |
Condition |
Min. |
Max. |
Unit |
|
Operating?Case?Temperature |
Tc |
I=Iop |
-20 |
80 |
°C |
|
Storage?Temperature |
Tstg |
- |
-40 |
85 |
°C |
|
Laser?Forward?Current |
If |
- |
- |
150 |
mA |
|
Laser?Reverse?Bias |
Vr |
- |
- |
2 |
V |
|
Photodiode?Reverse?Bias |
Vrpd |
- |
- |
10 |
V |
|
TEC?Current |
Itec |
-20?°C?<?Tc?<+65?°C, Top=25?°C?If=100?mA |
-2 |
+2 |
A |
|
TEC?Voltage |
Vc |
-2.5 |
+2.5 |
V |
|
|
ESD |
- |
ESD?-?HBM:?R=1500 ohm,?C=100?pF |
-500 |
+500 |
V |
|
Lead?Solder?Temperature |
- |
- |
- |
260 |
°C |
|
Lead?Soldering?Time |
- |
- |
- |
10 |
S |
|
Fiber?Bend?Radius |
- |
- |
30 |
- |
mm |
|
Fiber?Yield?Strength |
- |
- |
- |
1 |
kgf |
Optical?&?Electrical?Characteristics
|
Parameter |
Symbol |
Test?Conditions |
Min. |
Typ. |
Max. |
Unit |
|
Center?Wavelength |
λc |
CW |
1300 |
1310 |
1320 |
nm |
|
Spectral?Width?(-3?dB) |
Δλ |
CW |
- |
0.5 |
1 |
nm |
|
Optical?Output?Power* |
Po |
CW,?TL=25?°C |
- |
- |
32 |
mW |
|
Optical?Isolation |
IS |
T=25?°C |
30 |
35 |
- |
dB |
|
Side-mode?Suppression?Ratio |
SMSR |
CW |
35 |
- |
- |
dB |
|
Threshold?Current |
Ith |
TL=25? |
