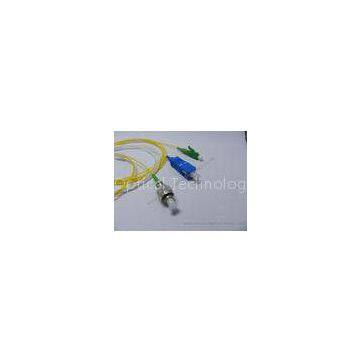

Built - In Monitor PD 1650nm Pigtailed Laser Diode , High Power Diode Laser

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	1650nm pulse laser diode

Product Description

Delivery Time:5-10workdays
Certification:RoSH, ISO9001

1650nm?Pulse?Laser?For?OTDR
?
Features
?
1. High?output?power?Pf?=?30?mW?@?IFP?=?400mA
2. Long?wavelength?λC?=?1650?nm
3. Built-in?monitor?PD
4. Pulse?Conditions:?Pulse?width?(PW)?=?10?μs,?Duty?=?1%
?
Applications
?
OTDR?System
?
?
Absolute?Maximum?Ratings
?

Parameter	Symbol	Min.	Typical	Max.	Unit
Pulsed?Forward?Current	IFP			700	mA
Reverse?Voltage	VR			2	V
Reverse?Voltage?(monitor?PD)	VRM			10	V
Reverse?Current?(monitor?PD)	IFPM			2	mA
Operating?Case?Temperature	TC	0		60	℃
Storage?Temperature	Tstg	-40		85	℃
Lead?Soldering?Temperature	Tsld			260(10s)	℃
Relative?Humidity?(noncondensing)	RH			85	%

?
?
Optical?&?Electrical?Characteristics
?

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Forward?Voltage	VFP			3.0	V	IFP?=?400?mA,?PW?=?10?μs,?Duty?=?1%?
Threshold?Current	Ith		20	35	mA
Optical?Output?Power?From?Fiber	Pf	30			mW	IFP?=400?mA,?PW?=?10?μs,?Duty?=?1%?
Center?Wavelength	λC	1645	1650	1655	nm	IFP?=?400?mA,?PW?=?10?μs,?Duty?=?1%?
Spectral?Width?	σ			4	nm	RMS?(?3?dB)?
Rise?Time?	tr		0.5	2.0	ns	10-90%?
Fall?Time?	tf		0.5	2.0	ns	90-10%?
Monitor?Current?	Im	0.05		2	mA	VRM?=5?V?

?
?
Pin?Description:
?

?
Package?Outline
?

?
Order?information
?
PLD-F652-XAXP30

P	LD	-F	65	2	-X	A	X	X
Mode	Product?Type	Chip	Wavelength	Bandwidth	Connector	Pin	Pigtail?Length	Power?Range
		F:FP	65:1650nm	2:2.5Gb/s	1:FC/APC 2:FC/PC 3:SC/APC 4:SC/PC 5:LC/PC 6:LC/APC	A:725	05:0.5m 10:1.0m	P30:>30mW
